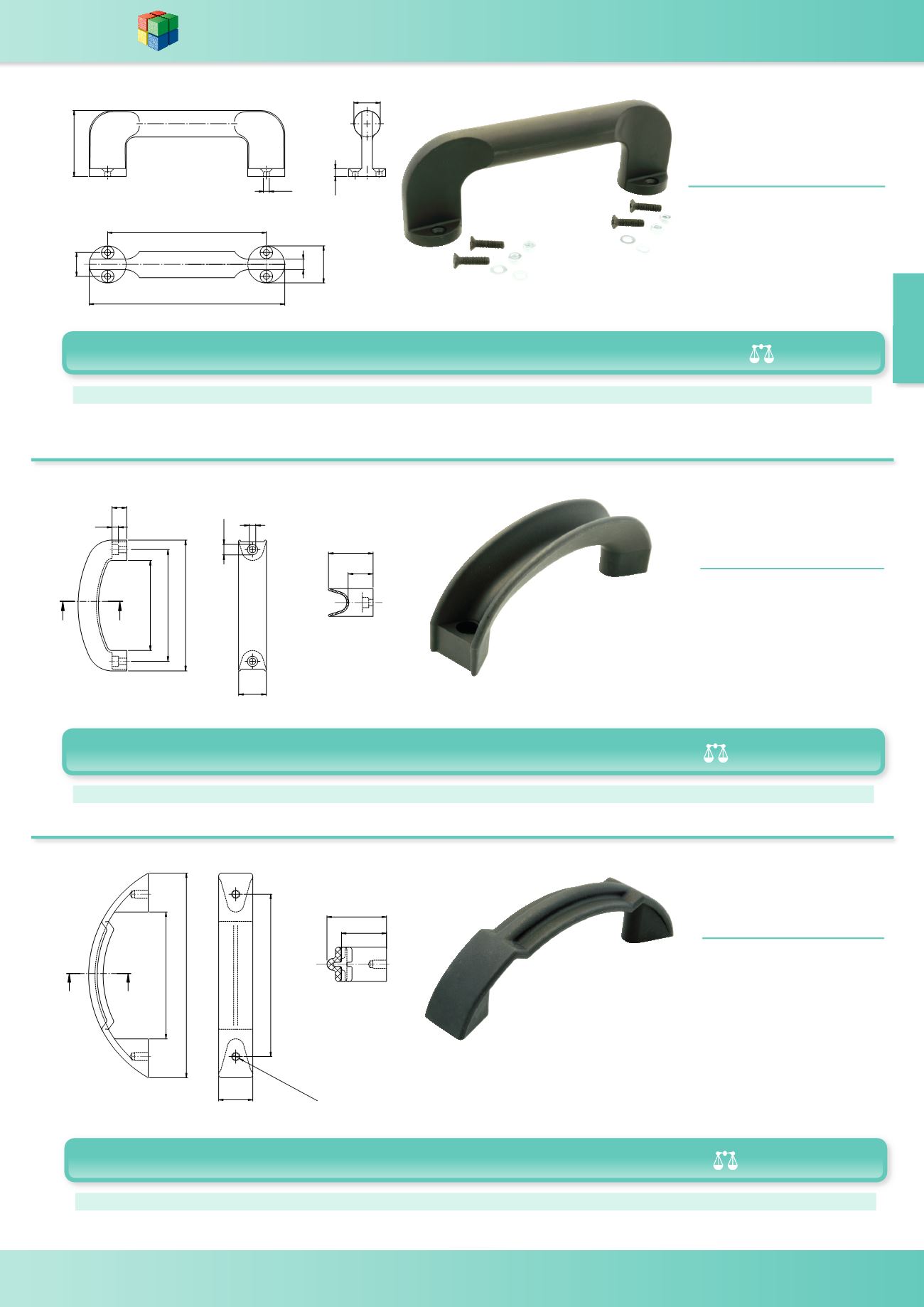

SECTION 8 - HANDLES, LATCHES & CATCHES WDS
✆ 0845 606 66 77 •  •  8-2
WDS
A A1 D D1 D2 H H1 L T Load Capacity
(kg)
M (g) WDS No.
120 18 4.5 20 28 50 6 148 8 100 M4x16 80 8537-201
150 22 5.5 25 34 62.5 7 184 10 100 M5X20 152 8537-204
'
+
' 7 $
$
/
'
+
Bow Handle PA6
WDS 8533
MATERIAL -
Glass fibre reinforced plastic
Colour- Black
Operating temperature -50°C to
115°C
L B D D1 H H1 H2 L1 L2 T
Load Capacity
(kg) (g) WDS No.
114 28 6.5 10.5 48 29 15 134 92 6.5 100 100 8533-211
/
/ /
+
7
$ $
+
+
6(&7,21 $ $
%
'
'
Bow Handle PA6
WDS 8534
MATERIAL -
Glass fibre reinforced plastic
Colour- Black
Insert- steel zinc plated
Operating temperature -50°C to
130°C
L B D H H1 L1 L2 T
Load Capacity
(kg) (g) WDS No.
119 25 M6 43.5 33 150 93 10 100 100 8534-201
/
%
' [ 7 GHHS
/ /
$ $
+
+
6(&7,21 $ $
Plastic Bridge Handle
PA6
WDS 8537
MATERIAL -
Glass fibre reinforced plastic
Colour- Black
Black countersunk screws supplied
