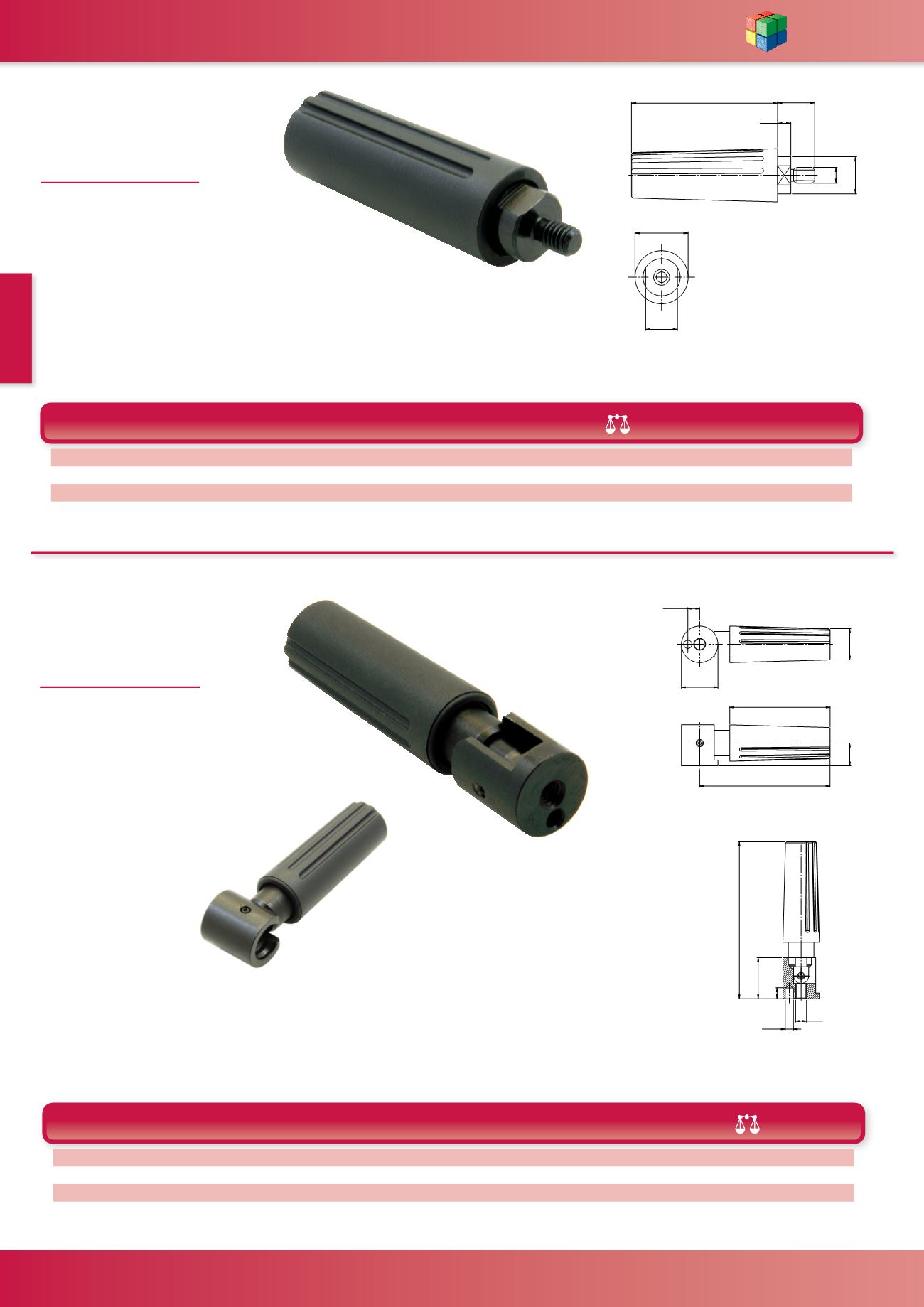

SECTION 4 - HANDWHEELS & GRIPS WDS
WDS
4-39 & 0845 606 66 77 • : • *
Fixed Revolving
Cylindrical Grip
WDS 8430
MATERIAL -
Body - Black thermoplastic
Steel parts - Chemical black
D D1 D2 L L3 L4 S (g) WDS No.
M4 13 9 35 11 5 8 13 8430-202
M5 16 11 44 13 5.5 10 25 8430-204
M6 20 14 55 14 5 12 50 8430-206
M8 25 18 70.5 25 13 15 103 8430-208
Fixed Revolving Grip
' '
/
/
/
'
6
'
/
/
/
'
6
Folding Revolving
Cylindrical Grip
WDS 8435
MATERIAL -
Body - Black thermoplastic
Steel parts - Chemical black
Fold-Away Revolving Grip
D D1 D3 D4 A A1 H L L1 L2 T (g) WDS No.
M4 13 13 2.5 8 4.3 14.5 35 47 54.5 4.5 28 8435-202
M5 16 16 3.5 10 5.3 18 44 58 67 4.5 51 8435-204
M6 20 20 4.5 12.5 6.5 22.5 55 71.5 82 6 101 8435-206
M8 25 26 5.5 16 9 29 70.5 98.5 112.5 6.5 225 8435-208
+
7
' '
/
$
/
/
$
'
'
)ROGHG ([WHQGHG
+
7
' '
/
$
'
([WHQGHG
