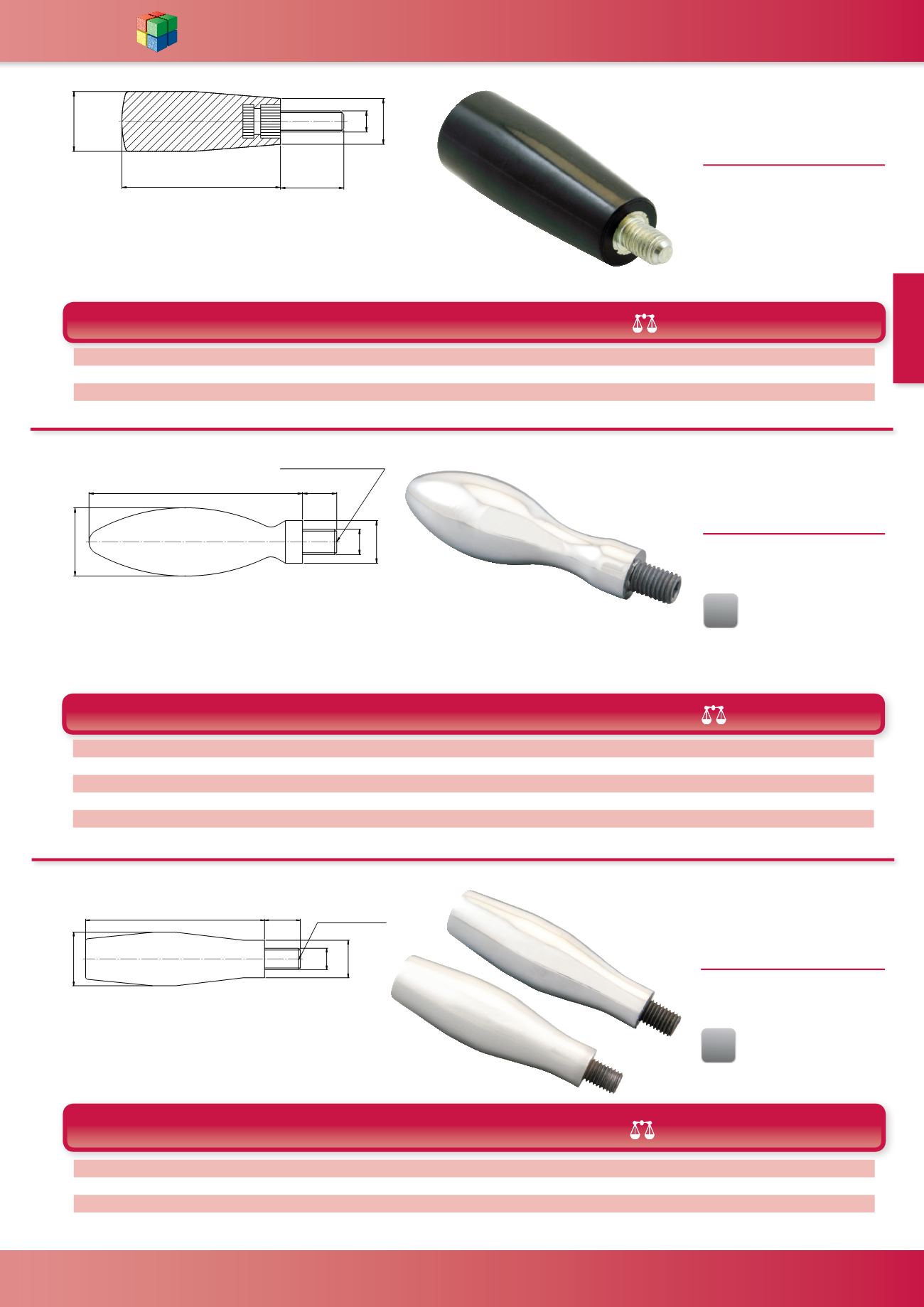

SECTION 4 - HANDWHEELS & GRIPS WDS
& 0845 606 66 77 • : • * 4-34
WDS
Fixed Grip - Screw
WDS 8153
MATERIAL -
Bakelite, black
Screw - Steel, zinc plated
D D1 D2 L L1 (g) WDS No.
M6 17 15 45 18 22 8153-221
M8 23 18 60 12 52 8153-222
M10 28 21 70 20 85 8153-223
' '
/ /
'
Fixed Grip
WDS 8175
MATERIAL -
Aluminium, polished
Screw - Steel
See 8191 Series for Steel Fixed
Grip and 8182 Series for Stainless
Fixed Grip
D D1 D2 H L L1 (g) WDS No.
M6 16 10 3 55 13 20 8175-201
M8 20 13 4 70 14 40 8175-202
M10 25 16 5 85 15 80 8175-203
M12 32 20 6 100 16 145 8175-204
M16 36 22 111 24 8 220 8175-205
' '
/ /
'
+ +H[DJRQ 6RFNHW
Al
Fixed Grip
WDS 8173
MATERIAL -
Aluminium, polished or anodised
Screw - Steel
D D1 D2 H L L1 (g)
WDS No.
Polished
WDS No.
Anodised
M6 16 10 3 40 11 30 8173-201 8173-401
M8 20 13 4 64 13 50 8173-202 8173-402
M10 25 17 5 80 14 100 8173-203 8173-403
M12 30 21 6 100 20 180 8173-204 8173-404
' '
/ /
'
+
KH[DJRQ VRFNHW
Al
