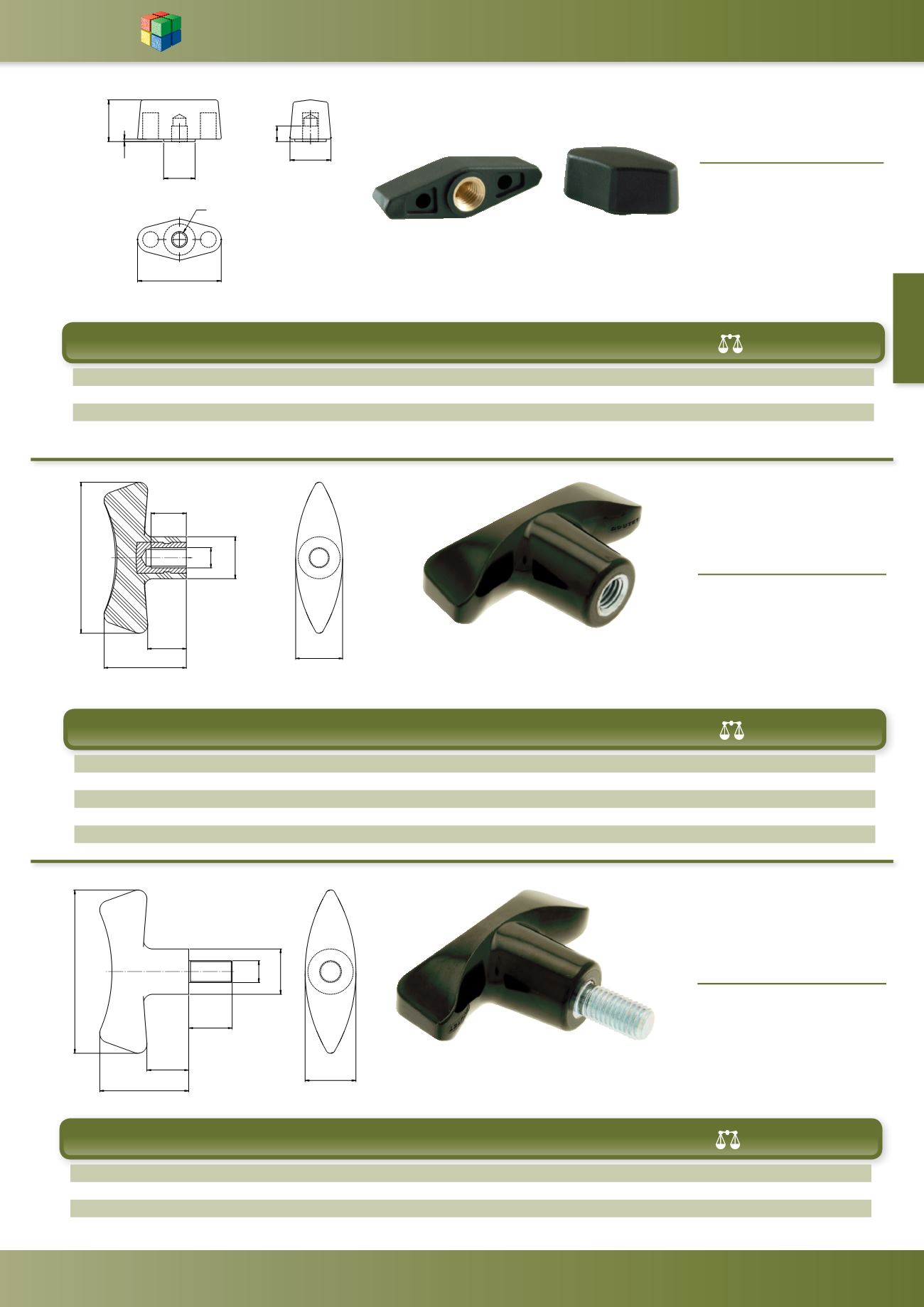

SECTION 5 - HAND KNOBS WDS
& 0845 606 66 77 • : • * 5-76
WDS
Plastic Wing Knob
WDS 8103
MATERIAL -
Body: PA polyamide
Insert: Brass
A B C D H H1 T (g) WDS No.
32 12 16 M5 16 1 6 7 8103-20532
32 12 16 M6 16 1 6 8 8103-20632
48 12 16 M6 16 1 10 10 8103-20648
48 12 16 M8 16 1 10 11 8103-20848
H
B H1
T
C
D
A
T Grip Hand Knob
(Bakelite)
WDS 8146
MATERIAL -
Bakelite, black
Insert - Steel, zinc plated
D S D1 E H H1 T (g) WDS No.
M8 70 19 21 38 18 14 45 8146-211
M10 70 19 21 38 18 14 45 8146-212
M8 80 21 24 44 21 14 60 8146-213
M10 80 21 24 44 21 22 60 8146-214
M12 90 25 27 49 23 21 90 8146-215
T Grip Hand Screw
(Bakelite)
WDS 8146
MATERIAL -
Bakelite, black
Screw - Steel, zinc plated
D L S D1 E H H1 (g) WDS No.
M8 24 70 20 21 37 18 45 8146-221
M10 30 80 22 24 42 21 75 8146-222
M10 30 90 25 27 48 23 90 8146-224
M12 24 90 25 27 48 23 95 8146-225
(
