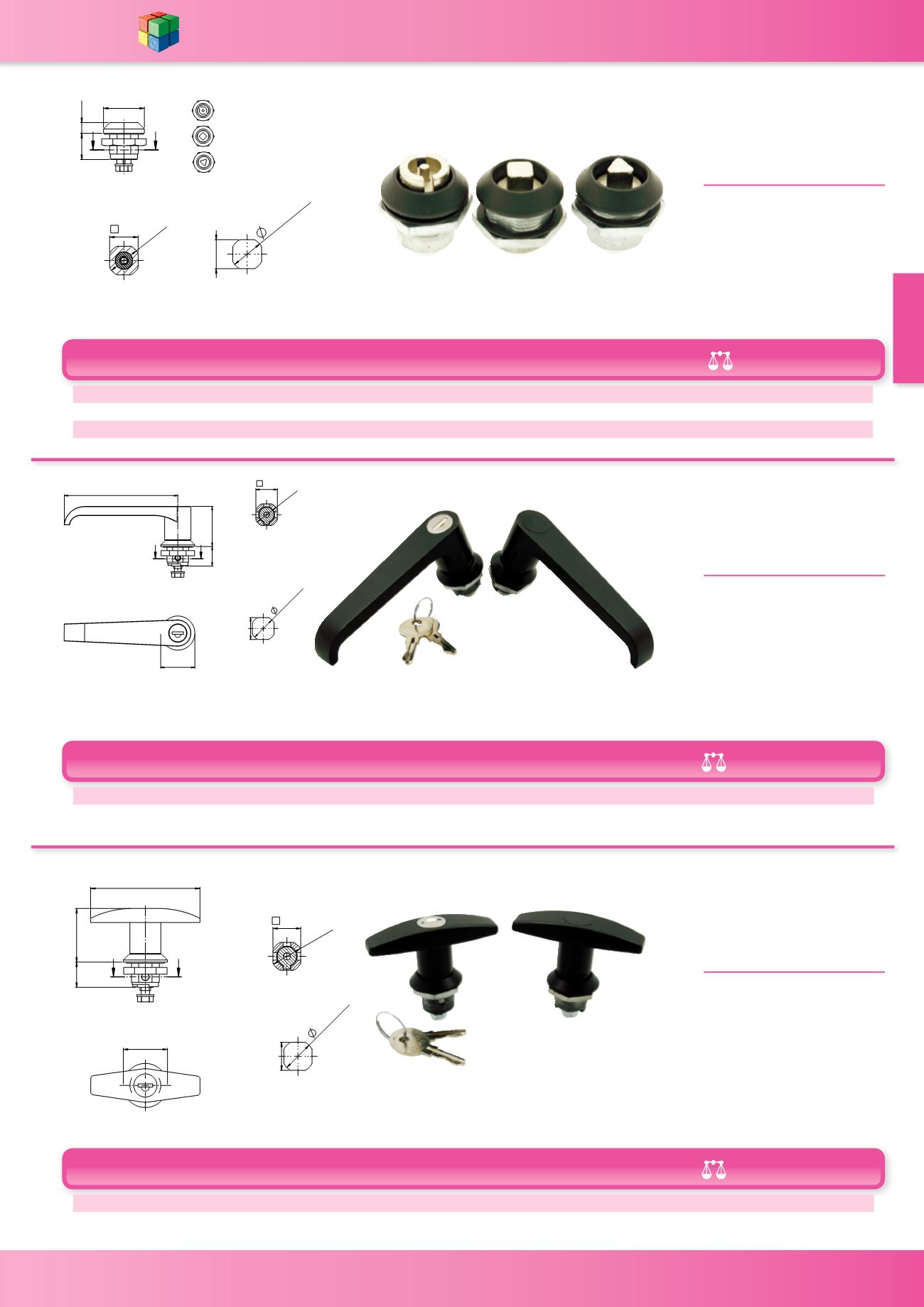

SECTION 10 - QUARTER TURN LOCKS & CATCHES WDS
& 0845 606 66 77 • : • * 10-4
WDS
20.1
+ - 0.10.1
22.5
+0.50
H1
H
D
M22 20
PIN DRIVE
Hole Detail
SQUARE DRIVE
TRI DRIVE
/
+ +
+ROH 'HWDLO
'
0
+ +
/
'
+ROH 'HWDLO
0
Quarter Turn
Black Finish
Quarter Turn Black
Finish - T Handle
Quarter Turn Black
Finish - L Handle
WDS 8567
WDS 8569
WDS 8568
MATERIAL -
Housing - Zinc Die Cast
Lock - Steel
See 8580 for drive keys
IP65 Rated
Suitable for use with Cams - 8575
(Limiter Type)
MATERIAL -
Housing & Handle - Zinc Die Cast
Lock - Steel
*Key Code 1333 Standard.
Other codes available to order.
IP65 Rated.
Suitable for use with Cams - 8575
(Limiter Type)
MATERIAL -
Housing & Handle - Zinc Die Cast
Lock - Steel
*Key Code 1333 Standard.
Other codes available to order.
IP65 Rated.
Suitable for use with Cams - 8575
(Limiter Type)
D H H1 Housing Finish Key Type (g) WDS No.
28 18 6.5 Zinc Die Cast Black 3mm Pin Drive 60 8567-401
28 18 6.5 Zinc Die Cast Black 8mm Square Drive 45 8567-403
28 18 6.5 Zinc Die Cast Black 9mm Tri Drive 45 8567-405
D H H1 L Finish Type (g) WDS No.
31 18 37 105 Black Non-Keyed 195 8568-400
31 18 37 105 Black Keyed* 230 8568-405
D H H1 L Finish Type (g) WDS No.
32 18 38 78 Black Non-Keyed 145 8569-400
32 18 38 78 Black Keyed* 180 8569-405
