SECTION 1 - GRIPPERS WDS
& 0845 606 66 77 • : • * 1-2
WDS

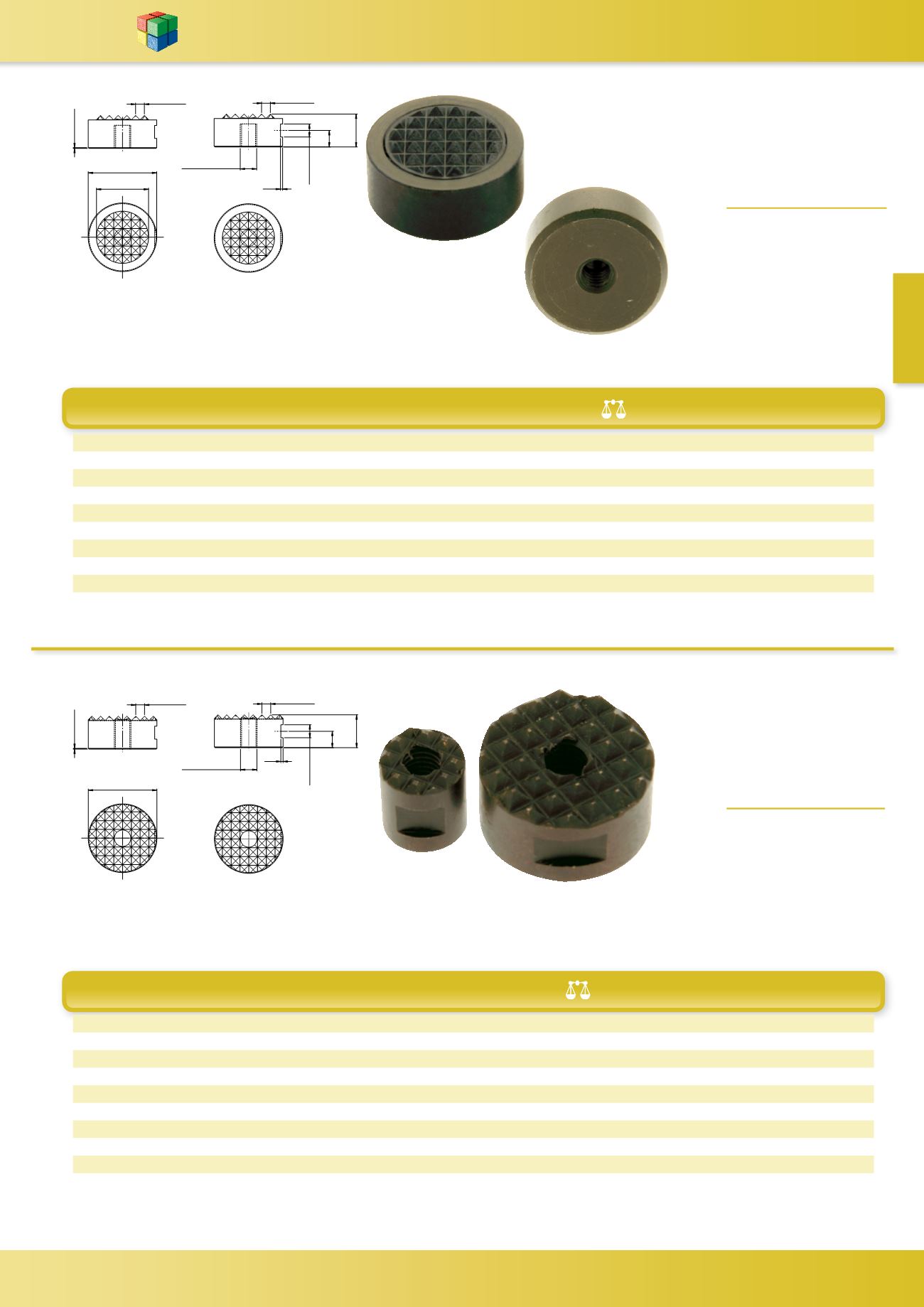

Metric Round
Carbide Tipped
Gripper
WDS 698
MATERIAL -
Body Steel
Insert Carbide
D H H1 D1 D2 (g) Tooth Pattern WDS No.
10 10 4.5 M5 7.9 5.0 EX-FINE 698-201
10 12 6.0 M5 7.9 6.0 EX-FINE 698-202
12 10 4.5 M5 9.5 7.5 FINE 698-203
12 12 6.0 M5 9.5 9.0 FINE 698-204
16 10 4.5 M6 12.7 14.0 FINE 698-205
16 12 6.0 M6 12.7 17.0 FINE 698-206
20 10 4.5 M6 15.9 23.0 FINE 698-207
20 12 6.0 M6 15.9 27.0 FINE 698-208
25 10 4.5 M6 19.0 37.0 FINE 698-209
25 12 6.0 M6 19.0 44.0 FINE 698-210
Metric Round
Hardened Steel
Gripper
WDS 698
MATERIAL -
Tool Steel hardened
Chemical Black Finish
D H H1 D1 (g) Tooth Pattern WDS No.
10 10 4.5 M5 5.0 EX-FINE 698-301
10 12 6.0 M5 6.0 EX-FINE 698-302
12 10 4.5 M5 7.5 FINE 698-303
12 12 6.0 M5 9.0 FINE 698-304
16 10 4.5 M6 14.0 FINE 698-305
16 12 6.0 M6 17.0 FINE 698-306
20 10 4.5 M6 23.0 FINE 698-307
20 12 6.0 M6 27.0 FINE 698-308
25 10 4.5 M6 37.0 FINE 698-309
25 12 6.0 M6 44.0 FINE 698-310
[ r
[ r
'
'
[ r
+
' 7KUHDG
+
),1( (;75$ ),1(
[ r
[ r
'
[ r
+
' 7KUHDG
+
),1( (;75$ ),1(
