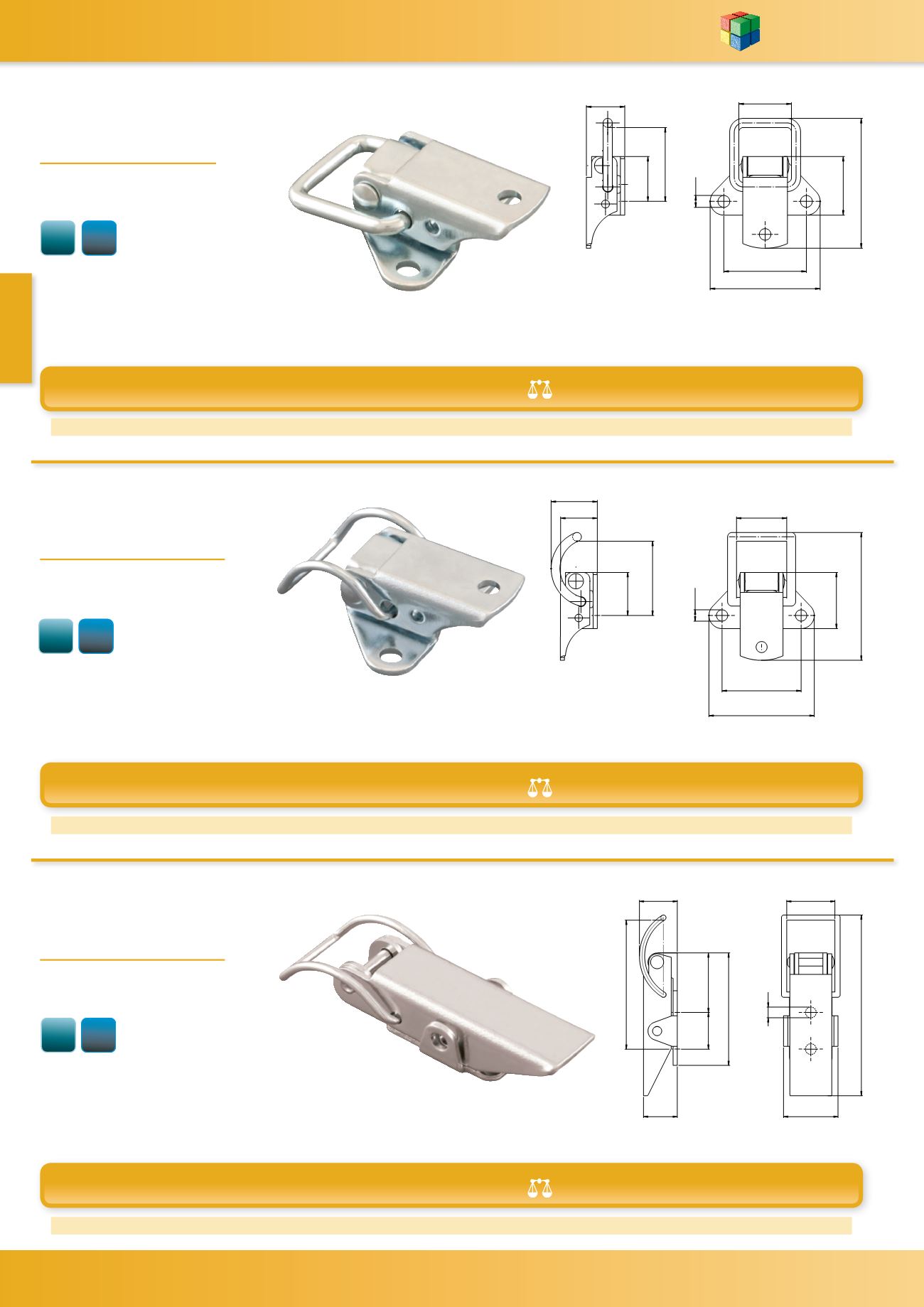

SECTION 20 - TOGGLE LATCHES WDS
WDS
20-1 & 0845 606 66 77 • : • *
Toggle Latch
Toggle Latch
Toggle Latch
WDS 4201
WDS 4203
WDS 4202
MATERIAL -
Mild Steel - Zinc plated or
Stainless Steel 304 Grade.
MATERIAL -
Mild Steel - Zinc plated or
Stainless Steel 304 Grade.
MATERIAL -
Mild Steel - Zinc plated or
Stainless Steel 304 Grade.
D C H L L1 L2 L3 W W1 (g)
Zinc plated
WDS No.
Stainless Steel
WDS No.
4.1 28.6 13.1 45 20.3 25.6 15.6 38.1 18.2 23 4201-201 4201-601
D C H H1 L L1 L2 L3 W W1 (g)
Zinc plated
WDS No.
Stainless Steel
WDS No.
4.2 28.6 13.1 15.5 45.1 20.3 26.9 15.6 38.1 18.1 20 4202-201 4202-601
D C H H1 L L1 L2 L3 W W1 (g)
Zinc plated
WDS No.
Stainless Steel
WDS No.
4.1 14 13.3 13.9 71.6 42.9 46.4 22.7 22.3 18 35 4203-201 4203-601
:
&
/
/ '
:
/
+
/
:
' / /
&
:
+
/
/
+
/
:
:
'
/
&
/
+
/
+
ZP 304
ZP 304
ZP 304
