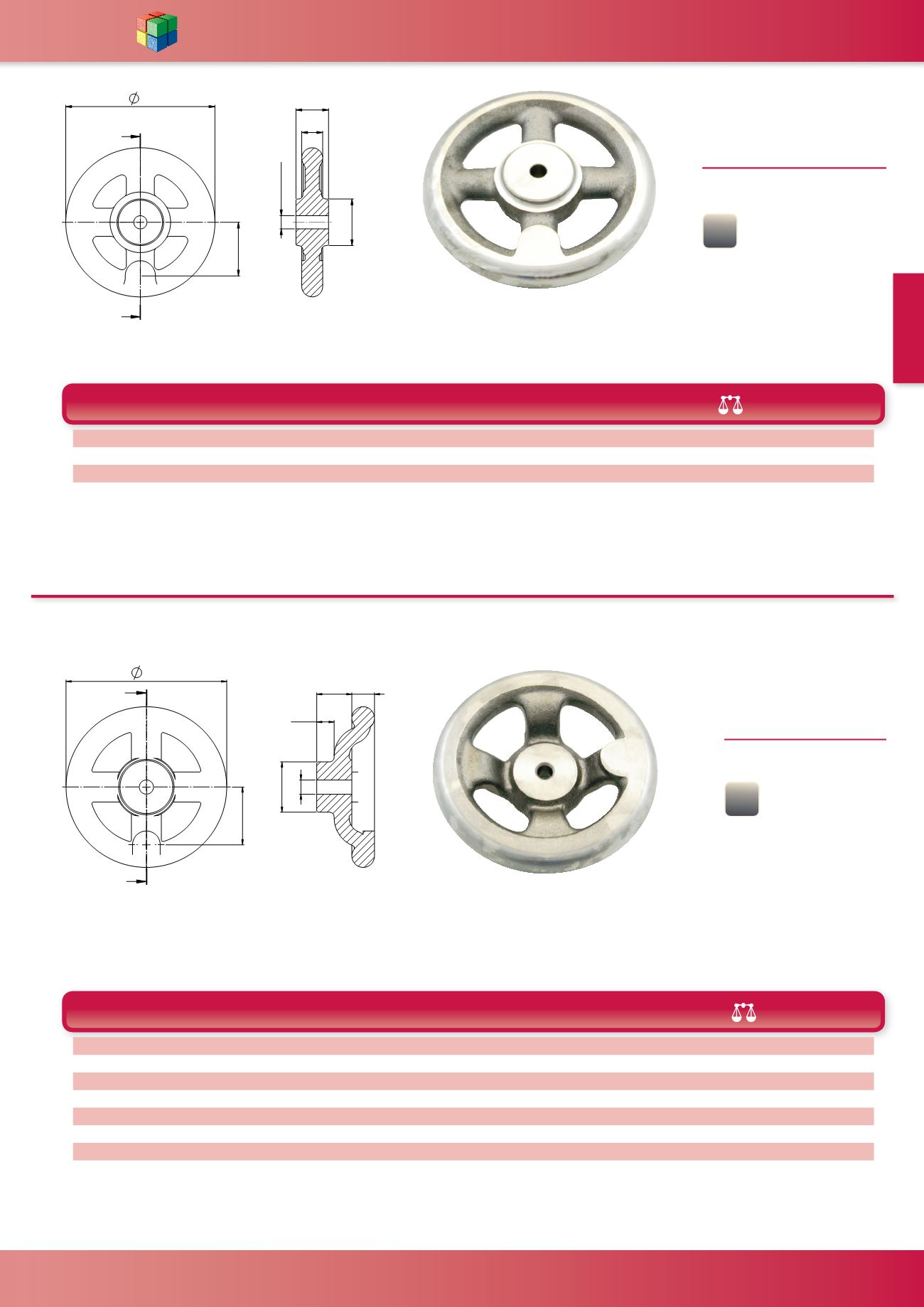

WDS 130
MATERIAL
-
Cast Iron BS 1452 Gr 250
See 8193 Series for metric
cast iron handwheel
*Please note that D2 is a pilot hole only
D
A
B
D1
D2*
L
N
(g)
WDS No.
5"
42
18
38
9
24
4
1000
130-02
6"
54
18
44
9
28
4
1500
130-03
8"
75
23
58
9
32
6
3000
130-05
N = No of Spokes
$
'
/
%
'
' 3LORW KROH
CI
Handwheel
WDS 130
D
A
B
D1
D2*
L
L1
N
(g)
WDS No.
4”
36
14
32
9
22
11
4
500
130-11
5”
42
18
38
9
24
12
4
1000 130-12
6”
54
18
41
9
28
14
4
1750 130-13
7”
64
20
51
9
32
12
6
2250 130-14
8”
75
23
57
9
32
16
6
3000 130-15
10"
95
24
60
12
44
22
6
5000 130-17
12"
120
27
63.5
12
51
25
6
7500 130-18
