SECTION 4 - HANDWHEELS & GRIPS WDS
& 0845 606 66 77 • : • * 4-10
WDS

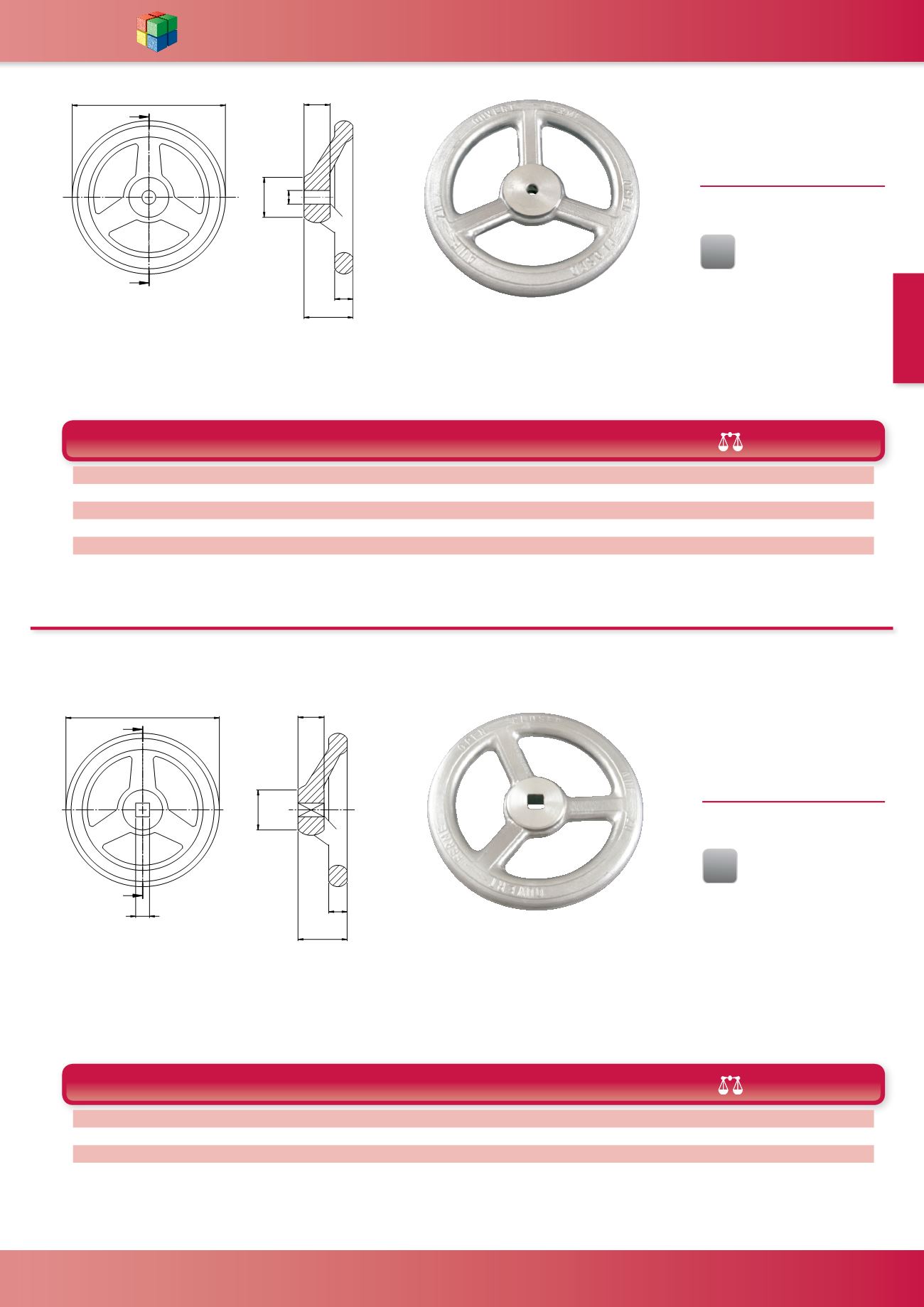

Handwheel - Round
Hole
WDS 8180
MATERIAL -
Aluminium, unmachined
D B D1 D2 L L1 N (g) WDS No.
100 12 9 26 32 17 3 130 8180-201
125 13 9 40 31 18 3 210 8180-202
160 16 9 40 30 20 3 350 8180-203
200 18 9 45 43 22 3 670 8180-204
250 21 9 55 51 26 5 1000 8180-205
N = No of Spokes
'
/
%
'
/
'
Al
Handwheel -
Square Hole
WDS 8180
MATERIAL -
Aluminium, unmachined
D B D2 L L1 S N (g) WDS No.
100 12 26 32 17 9 3 130 8180-251
160 16 40 30 20 12 3 350 8180-253
200 18 45 43 22 14 3 670 8180-254
N = No of Spokes
'
6 %
'
/
/
Al
