SECTION 4 - HANDWHEELS & GRIPS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk4-6
WDS
www.wdsltd.co.ukAluminium
Handwheel with
Turned Rim -
Keywayed Bore

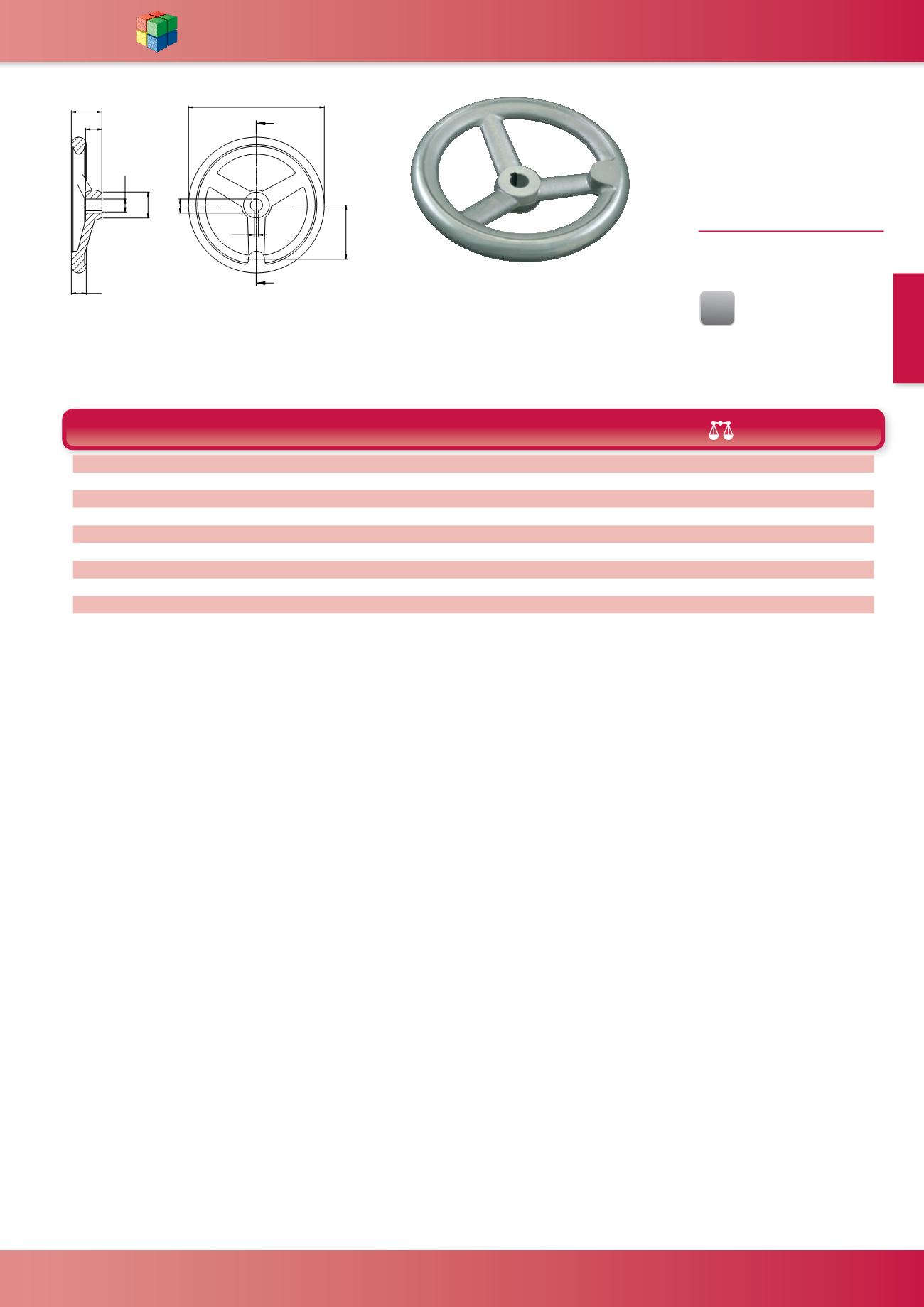

WDS 8179
MATERIAL
Aluminium AlSi9Mg
Boss Machined, Rim Turned
N = No of Spokes
D
E
A
F
D2
L1
L
B
D1
+0.2
Al
D
B D1(H7)
D2
L
L1
A E(Js9)
F
N
(g)
WDS No.
80
14
10
24
29
16
27
3
11.4
3
120
8179-260
100
15
10
26
33
17
36
3
11.4
3
178
8179-261
125
16
12
28
36
18
47
4
13.8
3
272
8179-262
160
18
14
32
40
20
62
5
16.3
3
416
8179-263
200
22
18
38
45
24
80
6
20.8
3
760
8179-264
250
26
22
45
50
28
101
6
24.8
5
1406
8179-265
315
26
26
53
56
33
132
8
29.3
5
2280
8179-266
400
32
30
65
63
38
171
8
33.3
5
3836
8179-267
500
34
34
78
72
45
220
10
37.3
5
5690
8179-268
