SECTION 4 - HANDWHEELS & GRIPS WDS
& 0845 606 66 77 • : • * 4-4
WDS

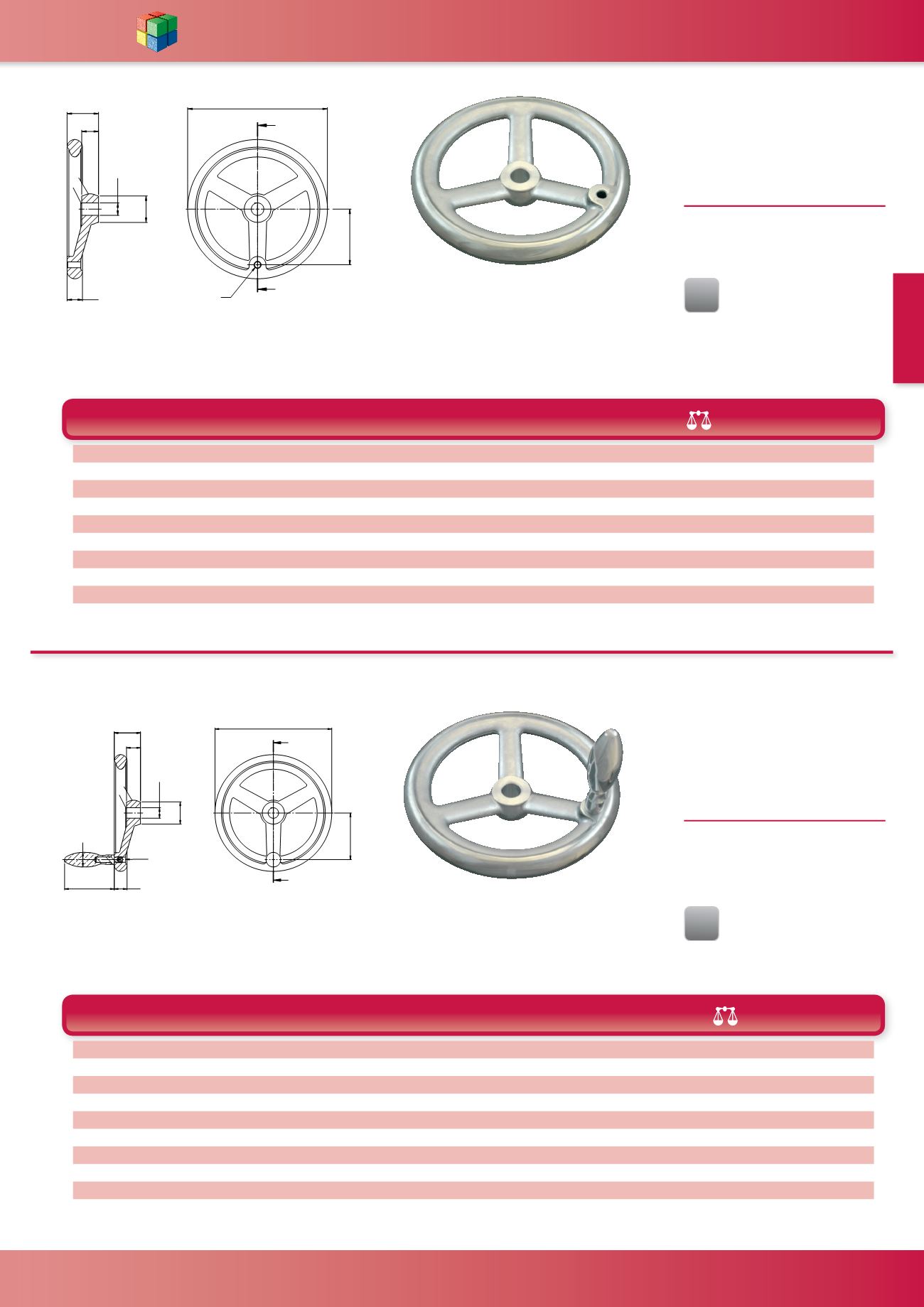

Aluminium Handwheel
with Turned Rim - H7
Hole Tapped for Grip
WDS 8179
MATERIAL -
Aluminium AlSi9Mg Boss
machined, Rim finished turned Tapped
for Grip
N = No of Spokes
D
A
M
D2
L1
L
B
D1
Al
D B D1(H7) D2 L L1 A M N (g) WDS No.
80 14 10 24 29 16 27 M6 3 120 8179-270
100 15 10 26 33 17 36 M6 3 200 8179-271
125 16 12 28 36 18 47 M8 3 280 8179-272
160 18 14 32 40 20 62 M10 3 480 8179-273
200 22 18 38 45 24 80 M10 3 870 8179-274
250 26 22 45 50 28 101 M12 5 1500 8179-275
315 26 26 53 56 33 132 M12 5 2330 8179-276
400 32 30 65 63 38 171 M16 5 4000 8179-277
500 34 34 78 72 45 220 M16 5 5690 8179-278
Aluminium Handwheel
with Turned Rim - H7
Hole & Fixed Grip
WDS 8179
MATERIAL -
Aluminium AlSi9Mg
Boss Machined, Rim Finished Turned
Fixed Polished Aluminium Grip
Supplied Loose
N = No of Spokes
D
A
D2
L1
L
B
D1
H
J M
Al
D B D1(H7) D2 L L1 A M H J N (g) WDS No.
80 14 10 24 29 16 27 M6 55 16 3 120 8179-270AF
100 15 10 26 33 17 36 M6 55 16 3 203 8179-271AF
125 16 12 28 36 18 47 M8 70 20 3 302 8179-272AF
160 18 14 32 40 20 62 M10 85 25 3 502 8179-273AF
200 22 18 38 45 24 80 M10 85 25 3 846 8179-274AF
250 26 22 45 50 28 101 M12 100 32 5 1575 8179-275AF
315 26 26 53 56 33 132 M12 100 32 5 2406 8179-276AF
400 32 30 65 63 38 171 M16 111 36 5 4036 8179-277AF
500 34 34 78 72 45 220 M16 111 36 5 5916 8179-278AF
