SECTION 4 - HANDWHEELS & GRIPS WDS
WDS
4-3 & 0845 606 66 77 • : • *

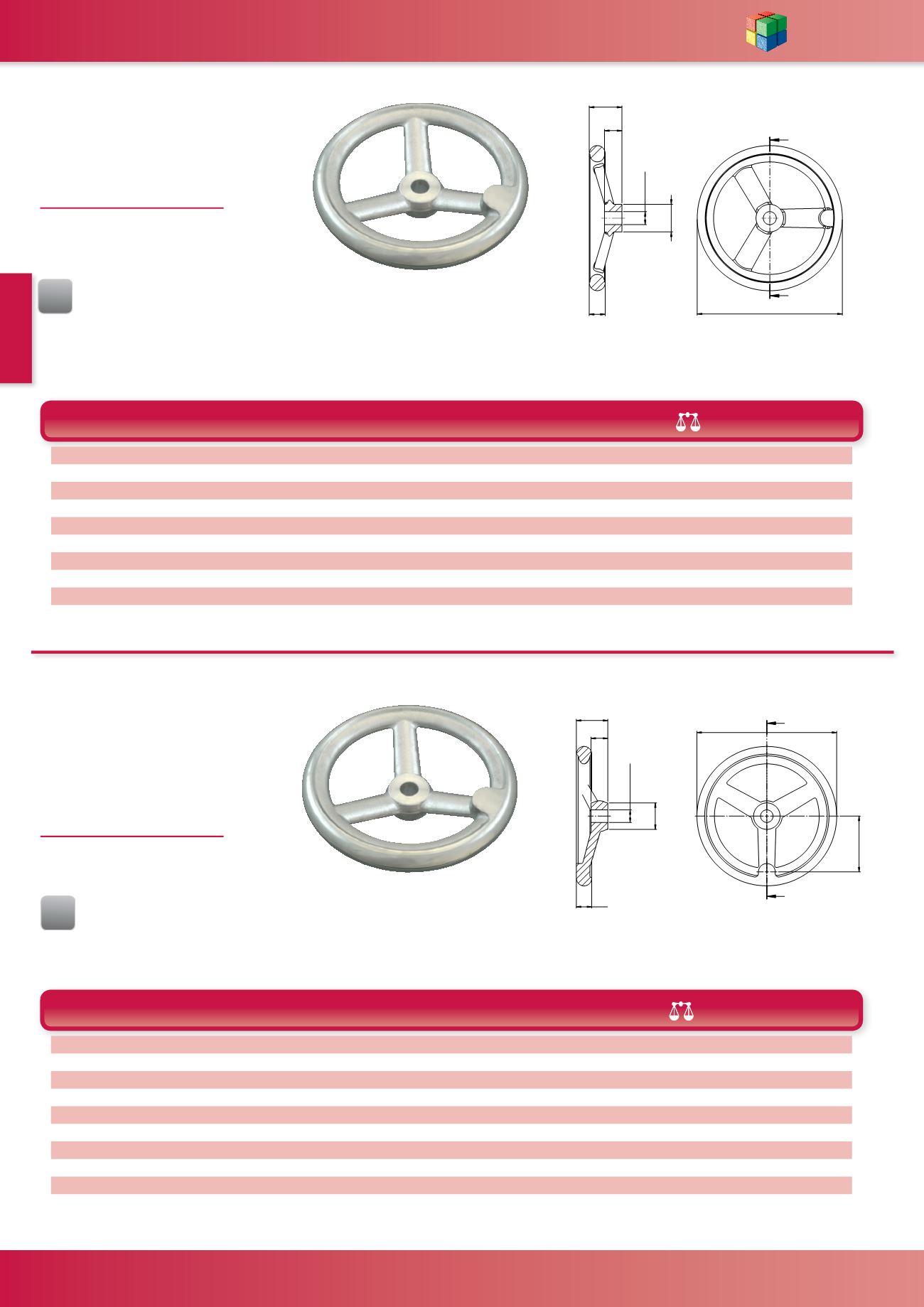

Aluminium
Handwheel -
Pilot Hole
WDS 8179
MATERIAL -
Aluminium AlSi9Mg
Rim machined and polished
Pilot Hole for customisation
D B D1 D2 L L1 A N (g) WDS No.
80 14 10 24 29 16 27 3 120 8179-400
100 15 10 26 33 17 36 3 200 8179-401
125 16 12 28 36 18 47 3 280 8179-402
160 18 14 32 40 20 62 3 480 8179-403
200 22 18 38 45 24 80 3 870 8179-404
250 26 22 45 50 28 101 5 1500 8179-405
315 26 26 53 56 33 132 5 2330 8179-406
400 32 30 65 63 38 171 5 4000 8179-407
500 34 34 78 72 45 220 5 5690 8179-408
N = No of Spokes
'
'
'
%
/
/
1 1R RI VSRNHV
Al
Aluminium
Handwheel with
Turned Rim - H7
Hole
WDS 8179
MATERIAL -
Aluminium AlSi9Mg,
Boss machined, Rim finished turned
N = No of Spokes
D
A
D1
D2
L1
L
B
Al
D B D1(H7) D2 L L1 A N (g) WDS No.
80 14 10 24 29 16 27 3 120 8179-220
100 15 10 26 33 17 36 3 200 8179-221
125 16 12 28 36 18 47 3 280 8179-222
160 18 14 32 40 20 62 3 480 8179-223
200 22 18 38 45 24 80 3 870 8179-224
250 26 22 45 50 28 101 5 1500 8179-225
315 26 26 53 56 33 132 5 2330 8179-226
400 32 30 65 63 38 171 5 4000 8179-227
500 34 34 78 72 45 220 5 5690 8179-228
