SECTION 3 - HAND LEVERS WDS
& 0845 606 66 77 • : • * 3-44
WDS

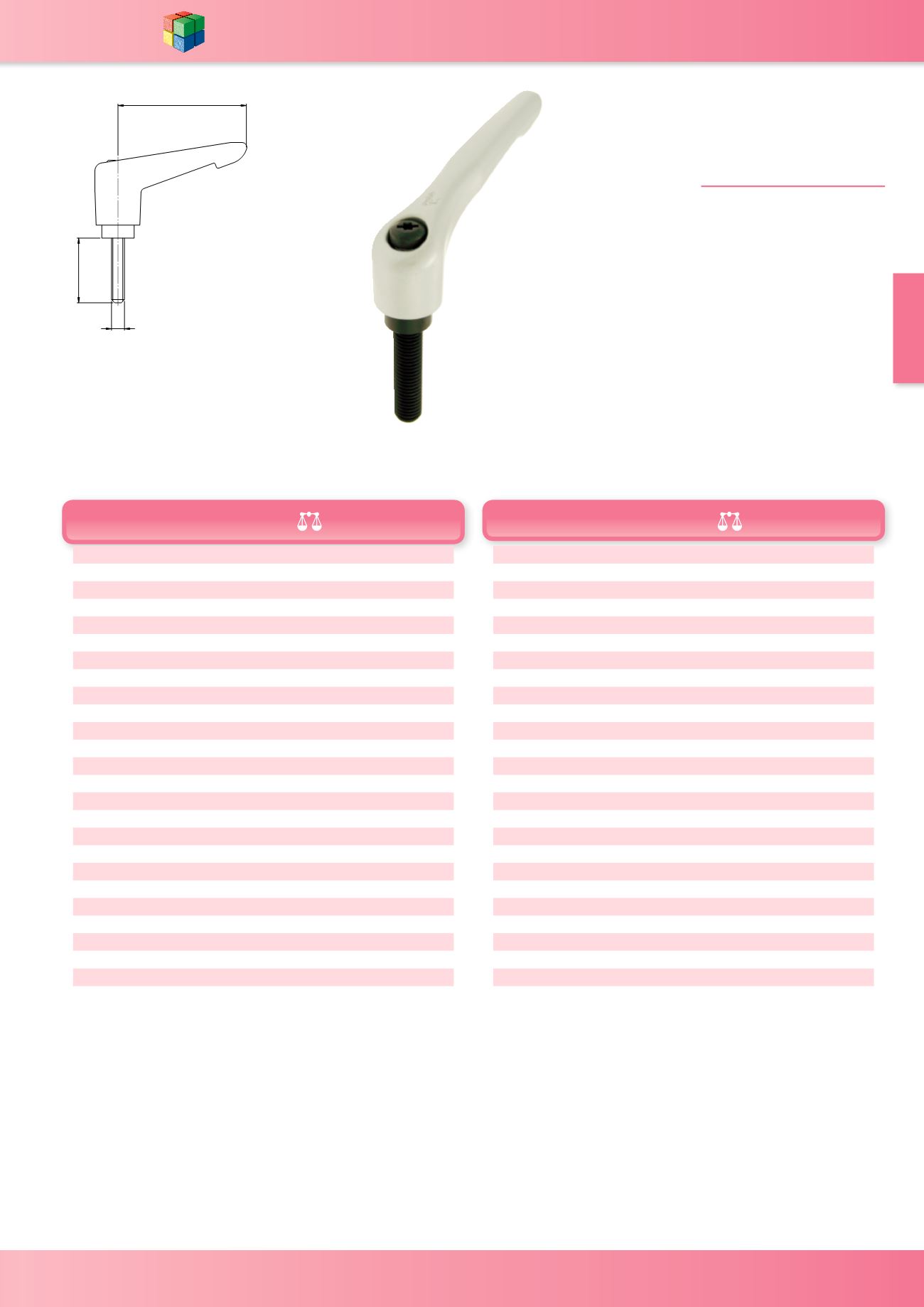

Clamping Handle -
Indexing
WDS 8189
MATERIAL -
Handle - Zinc diecast painted grey
Screw - Steel. Chemical black finish
Screw lengths up to 60mm long are
full thread. Where L1 is 70mm or
longer then the thread is only 60mm
long
D L L1 (g) WDS No.
M4 40 20 32 8189-20120
M4 40 25 33 8189-20125
M4 40 30 34 8189-20130
M5 40 10 30 8189-20210
M5 40 15 31 8189-20215
M5 40 20 33 8189-20220
M5 40 25 34 8189-20225
M5 40 30 35 8189-20230
M5 40 40 36 8189-20240
M5 40 50 37 8189-20250
M6 40 10 30 8189-20310
M6 40 15 33 8189-20315
M6 40 20 34 8189-20320
M6 40 25 35 8189-20325
M6 40 30 36 8189-20330
M6 40 40 37 8189-20340
M6 40 50 39 8189-20350
M8 65 15 70 8189-20515
M8 65 20 75 8189-20520
M8 65 25 77 8189-20525
M8 65 30 79 8189-20530
M8 65 40 80 8189-20540
M8 65 50 82 8189-20550
M8 65 60 85 8189-20560
M10 80 20 75 8189-20720
M10 80 25 100 8189-20725
D L L1 (g) WDS No.
M10 80 30 135 8189-20730
M10 80 40 140 8189-20740
M10 80 50 145 8189-20750
M10 80 60 150 8189-20760
M10 95 25 205 8189-20825
M10 95 30 210 8189-20830
M10 95 40 215 8189-20840
M10 95 50 220 8189-20850
M10 95 70 230 8189-20870
M10 95 90 240 8189-20890
M12 95 20 205 8189-20920
M12 95 25 210 8189-20925
M12 95 30 215 8189-20930
M12 95 40 220 8189-20940
M12 95 50 230 8189-20950
M12 95 60 240 8189-20960
M12 95 70 245 8189-20970
M12 95 90 265 8189-20990
M12 110 40 355 8189-21040
M12 110 50 360 8189-21050
M12 110 60 370 8189-21060
M12 110 70 375 8189-21070
M16 110 40 380 8189-21140
M16 110 50 390 8189-21150
M16 110 60 405 8189-21160
For all other dimensions refer to corresponding
size 8188 Series on page 12-40
'
/
/
/LIW KDQGOH WR LQGH[
