SECTION 3 - HAND LEVERS
WDS
WDS
www.wdsltd.co.uk3-41
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.ukD L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M5 40 10 16 8189-22210PO -
M5 40 15 17 8189-22215PO 8325-22215PO
M5 40 20 18 8189-22220PO 8325-22220PO
M5 40 25 18 8189-22225PO 8325-22225PO
M5 40 30 19 8189-22230PO -
M5 40 40 21 8189-22240PO -
M5 40 50 22 8189-22250PO -
M6 40 10 17 8189-22310PO 8325-22310PO
M6 40 15 19 8189-22315PO 8325-22315PO
M6 40 20 20 8189-22320PO 8325-22320PO
M6 40 25 21 8189-22325PO 8325-22325PO
M6 40 30 22 8189-22330PO 8325-22330PO
M6 40 40 24 8189-22340PO 8325-22340PO
M6 40 50 26 8189-22350PO 8325-22350PO
M8 65 15 41 8189-22515PO 8325-22515PO
M8 65 20 43 8189-22520PO 8325-22520PO
M8 65 25 45 8189-22525PO 8325-22525PO
M8 65 30 47 8189-22530PO 8325-22530PO
M8 65 40 51 8189-22540PO 8325-22540PO
M8 65 50 55 8189-22550PO 8325-22550PO
M8 65 60 59 8189-22560PO 8325-22560PO
M10 80 20 74 8189-22720PO 8325-22720PO
M10 80 25 77 8189-22725PO 8325-22725PO
D L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M10 80 30 80 8189-22730PO 8325-22730PO
M10 80 40 86 8189-22740PO 8325-22740PO
M10 80 50 92 8189-22750PO 8325-22750PO
M10 80 60 98 8189-22760PO 8325-22760PO
M10 95 25 109 8189-22825PO -
M10 95 30 112 8189-22830PO -
M10 95 40 118 8189-22840PO -
M10 95 50 124 8189-22850PO -
M10 95 70 136 8189-22870PO -
M10 95 90 149 8189-22890PO -
M12 95 25 120 8189-22925PO 8325-22925PO
M12 95 30 125 8189-22930PO 8325-22930PO
M12 95 40 133 8189-22940PO 8325-22940PO
M12 95 50 142 8189-22950PO 8325-22950PO
M12 95 60 151 8189-22960PO 8325-22960PO
M12 95 70 160 8189-22970PO -
M12 95 90 178 8189-22990PO -
M12 110 40 193 8189-23040PO -
M12 110 50 202 8189-23050PO -
M12 110 60 211 8189-23060PO -
M12 110 70 219 8189-23070PO -
M16 110 40 237 8189-23140PO 8325-23140PO

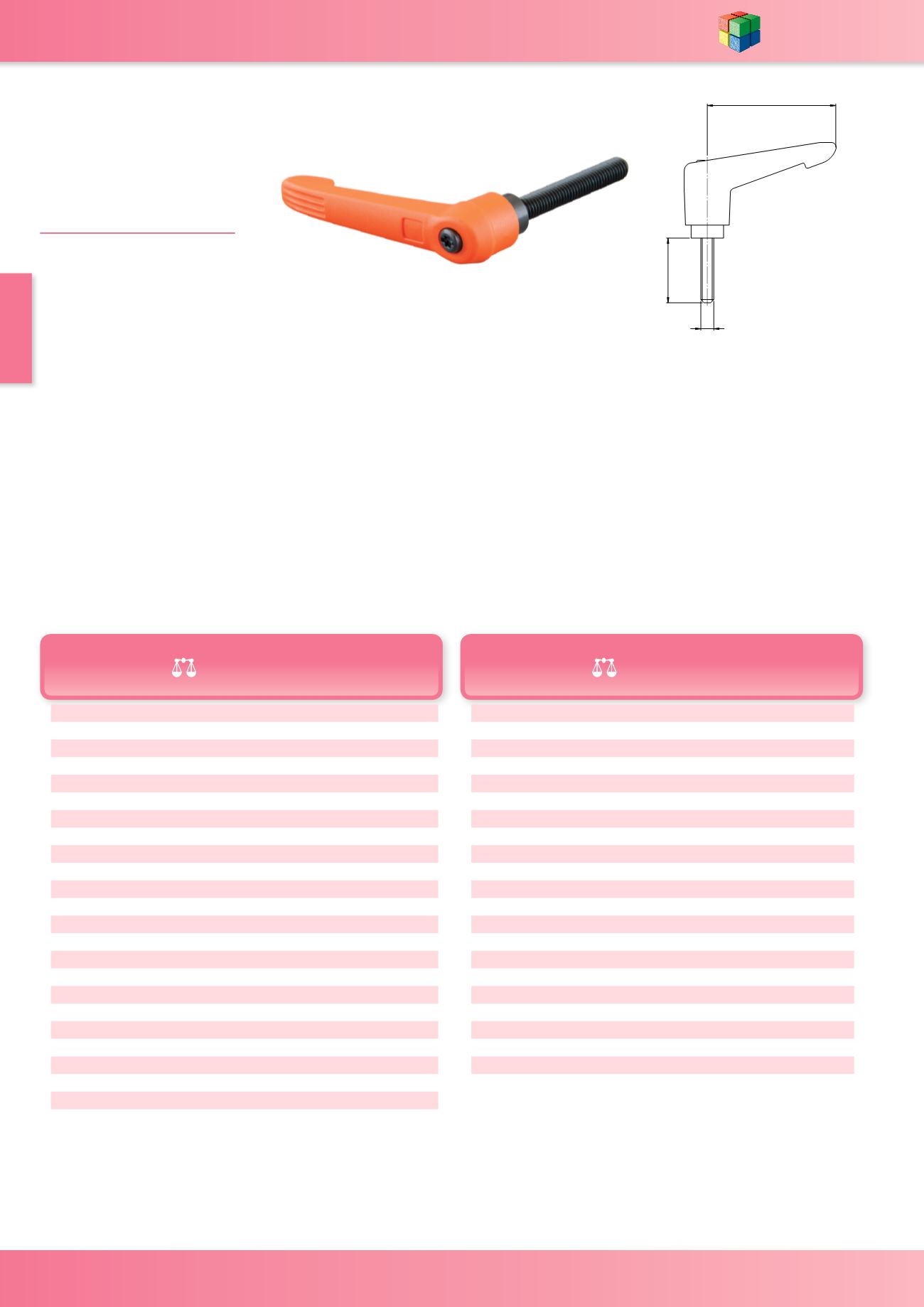

Clamping Handle
Indexing
WDS 8189/
8325
MATERIAL
-
Handle - Glass fibre reinforced
plastic in Pure Orange
Screw - Steel chemical black
Screw - Stainless Steel - 321S12
'
/
/
/LIW KDQGOH WR LQGH[
For all other dimensions refer to
corresponding size 8188/8320 series on
page 12-34
