SECTION 3 - HAND LEVERS
WDS
WDS
www.wdsltd.co.uk3-37
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk'
/
/
/LIW KDQGOH WR LQGH[
For all other dimensions refer to
corresponding size 8188/8320 series on
page 12-34
D L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M5 40 10 16 8189-22210SG -
M5 40 15 17 8189-22215SG 8325-22215SG
M5 40 20 18 8189-22220SG 8325-22220SG
M5 40 25 18 8189-22225SG 8325-22225SG
M5 40 30 19 8189-22230SG -
M5 40 40 21 8189-22240SG -
M5 40 50 22 8189-22250SG -
M6 40 10 17 8189-22310SG 8325-22310SG
M6 40 15 19 8189-22315SG 8325-22315SG
M6 40 20 20 8189-22320SG 8325-22320SG
M6 40 25 21 8189-22325SG 8325-22325SG
M6 40 30 22 8189-22330SG 8325-22330SG
M6 40 40 24 8189-22340SG 8325-22340SG
M6 40 50 26 8189-22350SG 8325-22350SG
M8 65 15 41 8189-22515SG 8325-22515SG
M8 65 20 43 8189-22520SG 8325-22520SG
M8 65 25 45 8189-22525SG 8325-22525SG
M8 65 30 47 8189-22530SG 8325-22530SG
M8 65 40 51 8189-22540SG 8325-22540SG
M8 65 50 55 8189-22550SG 8325-22550SG
M8 65 60 59 8189-22560SG 8325-22560SG
M10 80 20 74 8189-22720SG 8325-22720SG
M10 80 25 77 8189-22725SG 8325-22725SG
D L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M10 80 30 80 8189-22730SG 8325-22730SG
M10 80 40 86 8189-22740SG 8325-22740SG
M10 80 50 92 8189-22750SG 8325-22750SG
M10 80 60 98 8189-22760SG 8325-22760SG
M10 95 25 109 8189-22825SG -
M10 95 30 112 8189-22830SG -
M10 95 40 118 8189-22840SG -
M10 95 50 124 8189-22850SG -
M10 95 70 136 8189-22870SG -
M10 95 90 149 8189-22890SG -
M12 95 25 120 8189-22925SG 8325-22925SG
M12 95 30 125 8189-22930SG 8325-22930SG
M12 95 40 133 8189-22940SG 8325-22940SG
M12 95 50 142 8189-22950SG 8325-22950SG
M12 95 60 151 8189-22960SG 8325-22960SG
M12 95 70 160 8189-22970SG -
M12 95 90 178 8189-22990SG -
M12 110 40 193 8189-23040SG -
M12 110 50 202 8189-23050SG -
M12 110 60 211 8189-23060SG -
M12 110 70 219 8189-23070SG -
M16 110 40 237 8189-23140SG 8325-23140SG

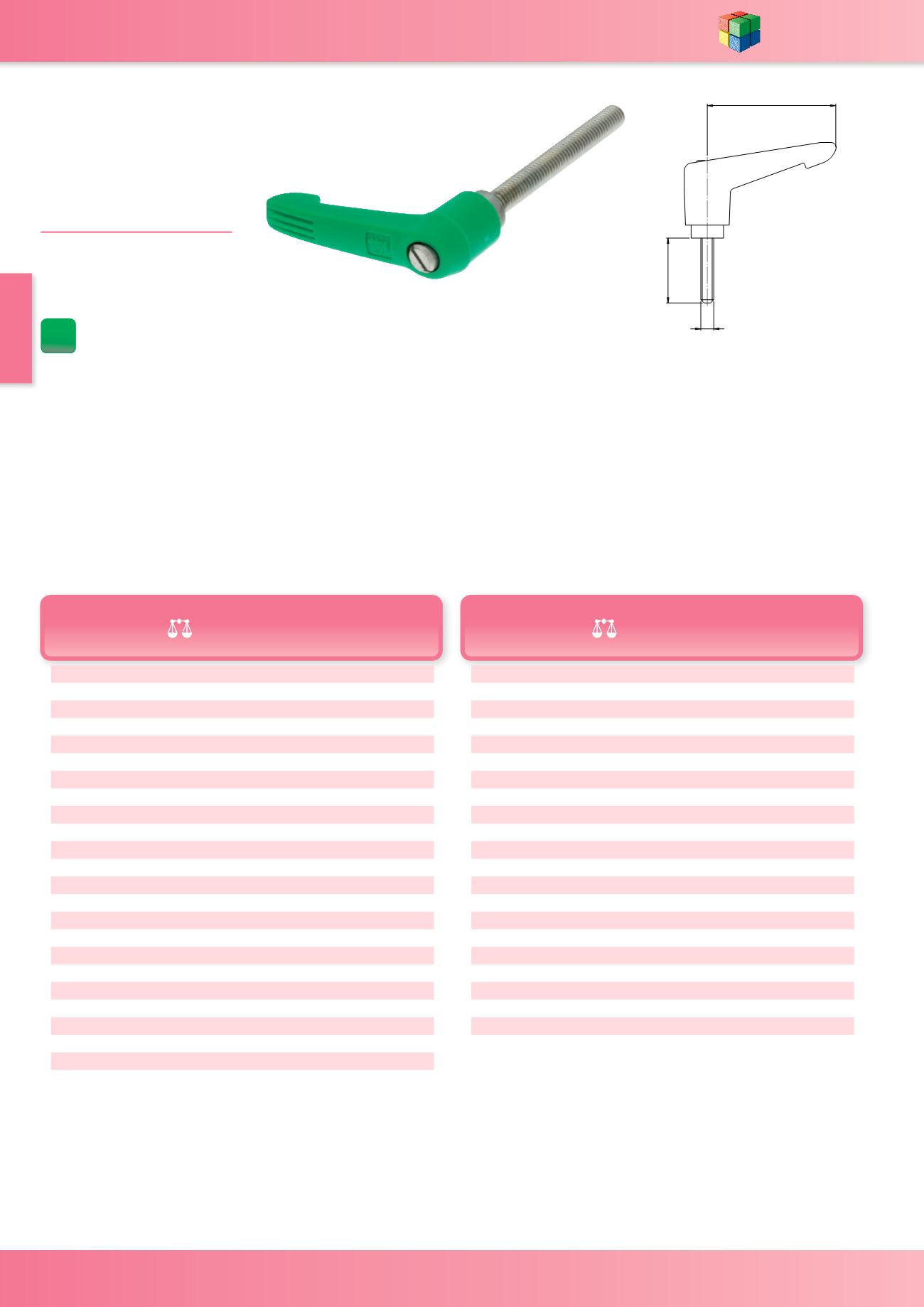

Clamping Handle
Indexing
WDS 8189/
8325
MATERIAL
-
Handle - Glass fibre reinforced
plastic in Signal Green
Screw - Steel chemical black
Screw - Stainless Steel - 321S12
RAL
6032
