SECTION 3 - HAND LEVERS WDS
& 0845 606 66 77 • : • * 3-36
WDS

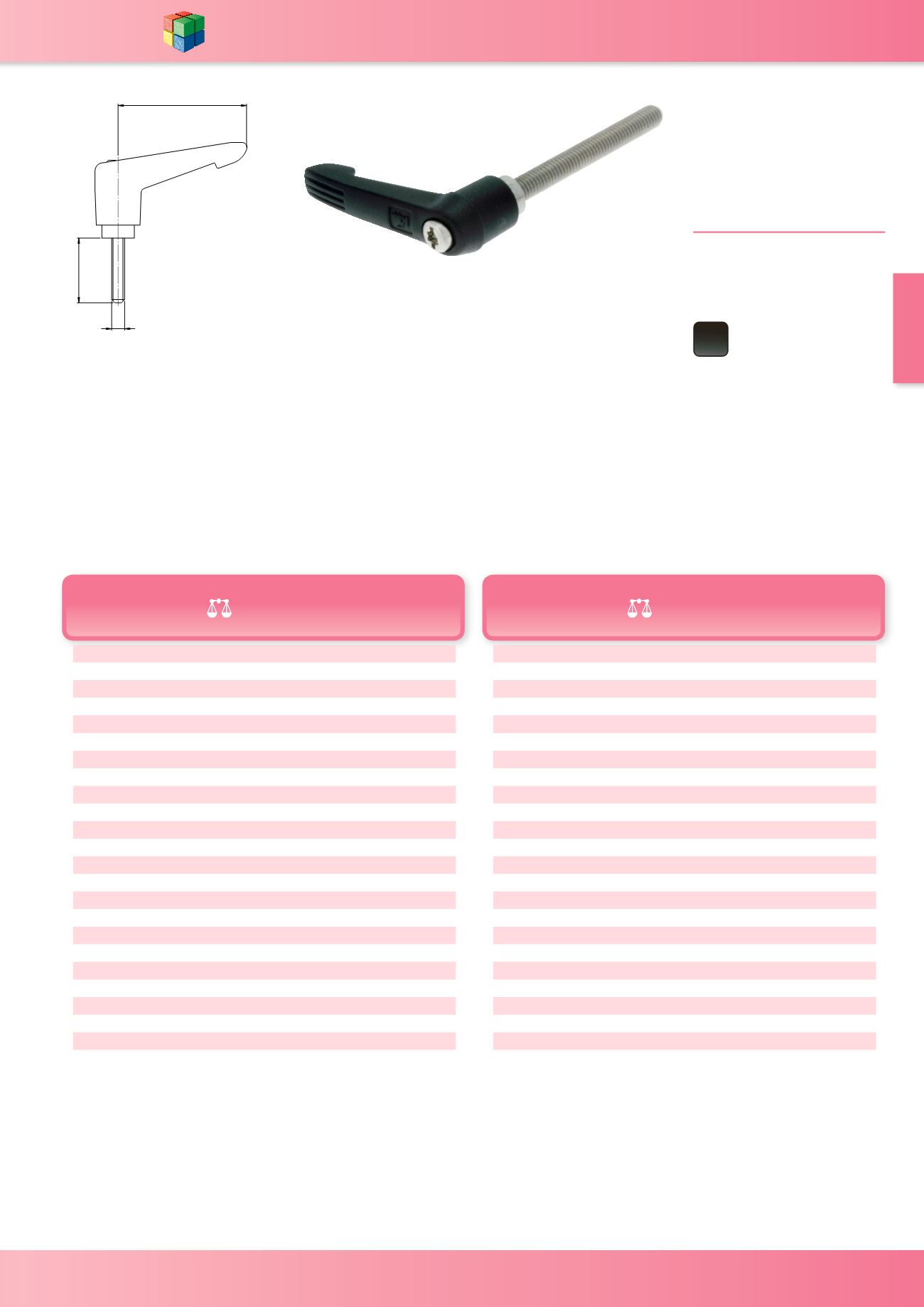

Clamping Handle
Indexing
WDS 8189/
8325
MATERIAL -
Handle - Glass fibre reinforced
plastic in Black Grey
Screw - Steel chemical black
Screw - Stainless Steel - 321S12
D L L1 (g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M4 40 20 16 8189-22120 -
M4 40 25 16 8189-22125 -
M4 40 30 17 8189-22130 -
M5 40 10 16 8189-22210 -
M5 40 15 17 8189-22215 8325-22215
M5 40 20 18 8189-22220 8325-22220
M5 40 25 18 8189-22225 8325-22225
M5 40 30 19 8189-22230 -
M5 40 40 21 8189-22240 -
M5 40 50 22 8189-22250 -
M6 40 10 17 8189-22310 8325-22310
M6 40 15 19 8189-22315 8325-22315
M6 40 20 20 8189-22320 8325-22320
M6 40 25 21 8189-22325 8325-22325
M6 40 30 22 8189-22330 8325-22330
M6 40 40 24 8189-22340 8325-22340
M6 40 50 26 8189-22350 8325-22350
M8 65 15 41 8189-22515 8325-22515
M8 65 20 43 8189-22520 8325-22520
M8 65 25 45 8189-22525 8325-22525
M8 65 30 47 8189-22530 8325-22530
M8 65 40 51 8189-22540 8325-22540
M8 65 50 55 8189-22550 8325-22550
M8 65 60 59 8189-22560 8325-22560
D L L1 (g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M10 80 20 74 8189-22720 -
M10 80 25 77 8189-22725 8325-22725
M10 80 30 80 8189-22730 8325-22730
M10 80 40 86 8189-22740 8325-22740
M10 80 50 92 8189-22750 8325-22750
M10 80 60 98 8189-22760 8325-22760
M10 95 25 109 8189-22825 -
M10 95 30 112 8189-22830 -
M10 95 40 118 8189-22840 -
M10 95 50 124 8189-22850 -
M10 95 70 136 8189-22870 -
M10 95 90 149 8189-22890 -
M12 95 25 120 8189-22925 8325-22925
M12 95 30 125 8189-22930 8325-22930
M12 95 40 133 8189-22940 8325-22940
M12 95 50 142 8189-22950 8325-22950
M12 95 60 151 8189-22960 8325-22960
M12 95 70 160 8189-22970 -
M12 95 90 178 8189-22990 -
M12 110 40 193 8189-23040 -
M12 110 50 202 8189-23050 -
M12 110 60 211 8189-23060 -
M12 110 70 219 8189-23070 -
M16 110 40 237 8189-23140 8325-23140
'
/
/
/LIW KDQGOH WR LQGH[
For all other dimensions refer to
corresponding size 8188/8320 series on
previous page
RAL
7021
