SECTION 3 - HAND LEVERS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk3-40
WDS
www.wdsltd.co.ukD L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M5 40 10 16 8189-22210TB -
M5 40 15 17 8189-22215TB 8325-22215TB
M5 40 20 18 8189-22220TB 8325-22220TB
M5 40 25 18 8189-22225TB 8325-22225TB
M5 40 30 19 8189-22230TB -
M5 40 40 21 8189-22240TB -
M5 40 50 22 8189-22250TB -
M6 40 10 17 8189-22310TB 8325-22310TB
M6 40 15 19 8189-22315TB 8325-22315TB
M6 40 20 20 8189-22320TB 8325-22320TB
M6 40 25 21 8189-22325TB 8325-22325TB
M6 40 30 22 8189-22330TB 8325-22330TB
M6 40 40 24 8189-22340TB 8325-22340TB
M6 40 50 26 8189-22350TB 8325-22350TB
M8 65 15 41 8189-22515TB 8325-22515TB
M8 65 20 43 8189-22520TB 8325-22520TB
M8 65 25 45 8189-22525TB 8325-22525TB
M8 65 30 47 8189-22530TB 8325-22530TB
M8 65 40 51 8189-22540TB 8325-22540TB
M8 65 50 55 8189-22550TB 8325-22550TB
M8 65 60 59 8189-22560TB 8325-22560TB
M10 80 20 74 8189-22720TB 8325-22720TB
M10 80 25 77 8189-22725TB 8325-22725TB
D L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M10 80 30 80 8189-22730TB 8325-22730TB
M10 80 40 86 8189-22740TB 8325-22740TB
M10 80 50 92 8189-22750TB 8325-22750TB
M10 80 60 98 8189-22760TB 8325-22760TB
M10 95 25 109 8189-22825TB
-
M10 95 30 112 8189-22830TB
-
M10 95 40 118 8189-22840TB
-
M10 95 50 124 8189-22850TB
-
M10 95 70 136 8189-22870TB
-
M10 95 90 149 8189-22890TB
-
M12 95 25 120 8189-22925TB 8325-22925TB
M12 95 30 125 8189-22930TB 8325-22930TB
M12 95 40 133 8189-22940TB 8325-22940TB
M12 95 50 142 8189-22950TB 8325-22950TB
M12 95 60 151 8189-22960TB 8325-22960TB
M12 95 70 160 8189-22970TB
-
M12 95 90 178 8189-22990TB
-
M12 110 40 193 8189-23040TB
-
M12 110 50 202 8189-23050TB
-
M12 110 60 211 8189-23060TB
-
M12 110 70 219 8189-23070TB
-
M16 110 40 237 8189-23140TB 8325-23140TB

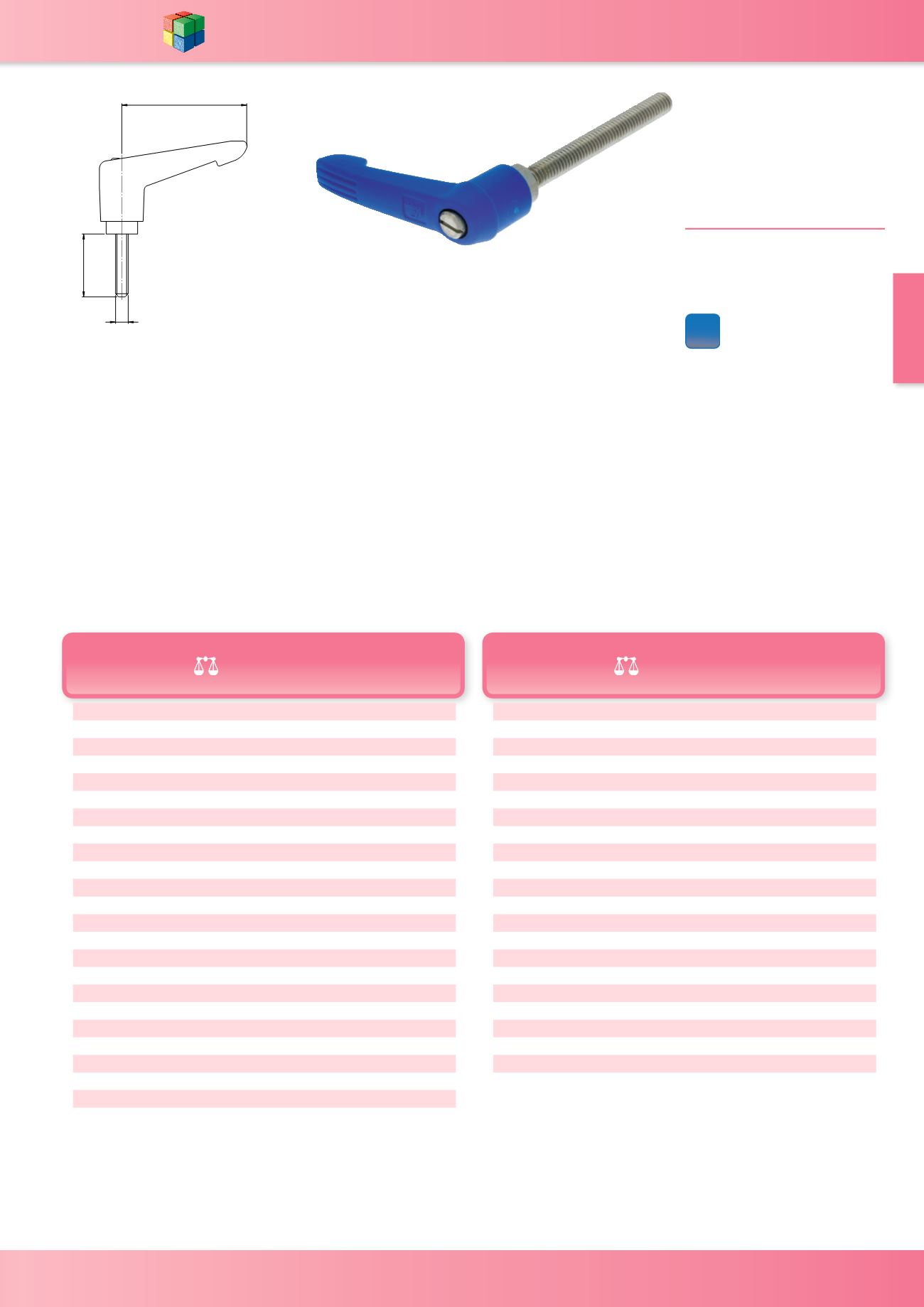

Clamping Handle
Indexing
WDS 8189/
8325
MATERIAL
-
Handle - Glass fibre reinforced
plastic in Traffic Blue
Screw - Steel chemical black
Screw - Stainless Steel - 321S12
'
/
/
/LIW KDQGOH WR LQGH[
For all other dimensions refer to
corresponding size 8188/8320 series on
page 12-34
RAL
5017
