SECTION 3 - HAND LEVERS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk3-38
WDS
www.wdsltd.co.ukD L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M5 40 10 16 8189-22210TR
-
M5 40 15 17 8189-22215TR 8325-22215TR
M5 40 20 18 8189-22220TR 8325-22220TR
M5 40 25 18 8189-22225TR 8325-22225TR
M5 40 30 19 8189-22230TR
-
M5 40 40 21 8189-22240TR
-
M5 40 50 22 8189-22250TR
-
M6 40 10 17 8189-22310TR 8325-22310TR
M6 40 15 19 8189-22315TR 8325-22315TR
M6 40 20 20 8189-22320TR 8325-22320TR
M6 40 25 21 8189-22325TR 8325-22325TR
M6 40 30 22 8189-22330TR 8325-22330TR
M6 40 40 24 8189-22340TR 8325-22340TR
M6 40 50 26 8189-22350TR 8325-22350TR
M8 65 15 41 8189-22515TR 8325-22515TR
M8 65 20 43 8189-22520TR 8325-22520TR
M8 65 25 45 8189-22525TR 8325-22525TR
M8 65 30 47 8189-22530TR 8325-22530TR
M8 65 40 51 8189-22540TR 8325-22540TR
M8 65 50 55 8189-22550TR 8325-22550TR
M8 65 60 59 8189-22560TR 8325-22560TR
M10 80 20 74 8189-22720TR 8325-22720TR
M10 80 25 77 8189-22725TR 8325-22725TR
D L L1
(g)
WDS No.
Steel
Screw
WDS No.
Stainless Steel
Screw
M10 80 30 80 8189-22730TR 8325-22730TR
M10 80 40 86 8189-22740TR 8325-22740TR
M10 80 50 92 8189-22750TR 8325-22750TR
M10 80 60 98 8189-22760TR 8325-22760TR
M10 95 25 109 8189-22825TR -
M10 95 30 112 8189-22830TR -
M10 95 40 118 8189-22840TR -
M10 95 50 124 8189-22850TR -
M10 95 70 136 8189-22870TR -
M10 95 90 149 8189-22890TR -
M12 95 25 120 8189-22925TR 8325-22925TR
M12 95 30 125 8189-22930TR 8325-22930TR
M12 95 40 133 8189-22940TR 8325-22940TR
M12 95 50 142 8189-22950TR 8325-22950TR
M12 95 60 151 8189-22960TR 8325-22960TR
M12 95 70 160 8189-22970TR -
M12 95 90 178 8189-22990TR -
M12 110 40 193 8189-23040TR -
M12 110 50 202 8189-23050TR -
M12 110 60 211 8189-23060TR -
M12 110 70 219 8189-23070TR -
M16 110 40 237 8189-23140TR 8325-23140TR

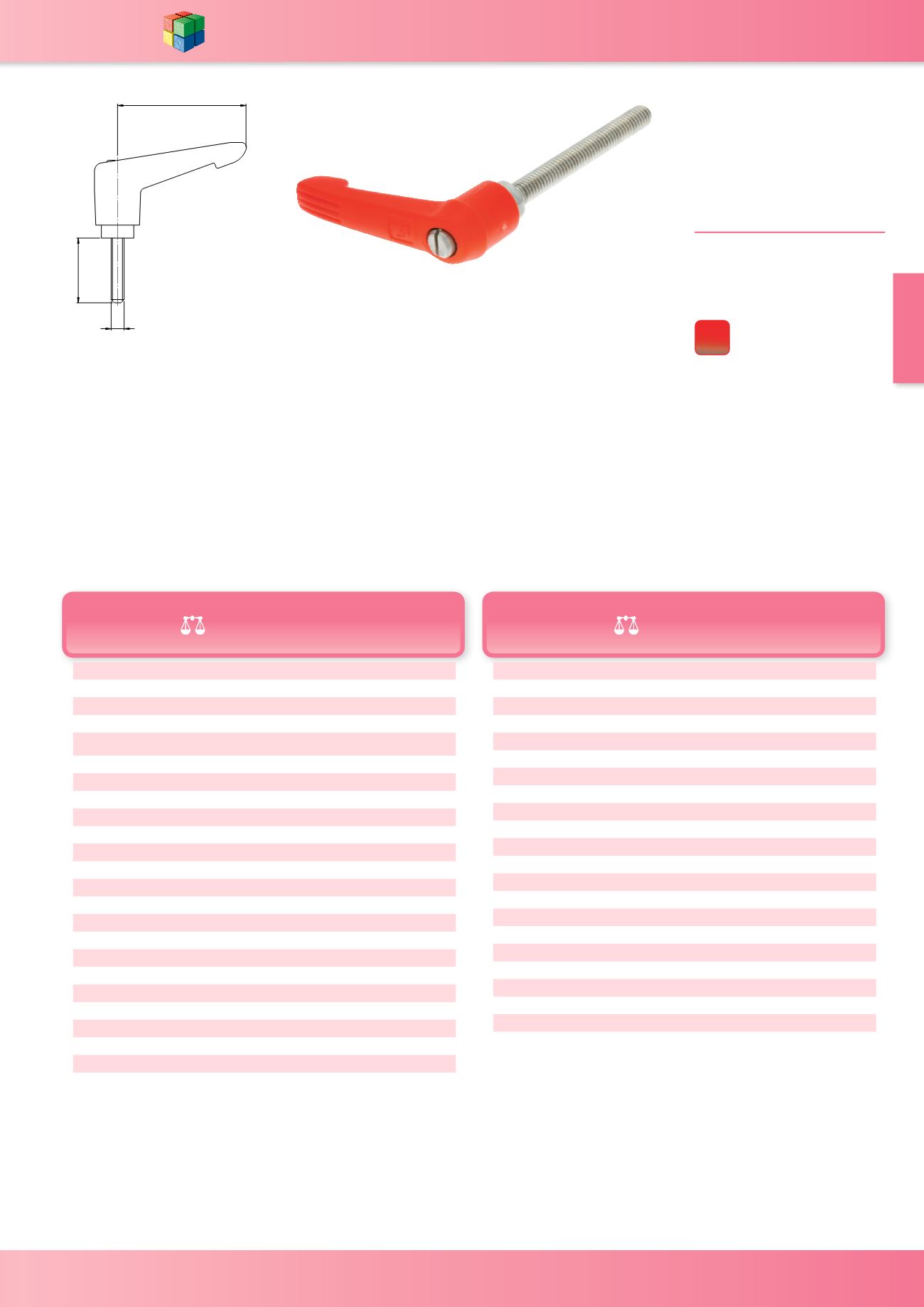

Clamping Handle
Indexing
WDS 8189/
8325
MATERIAL
-
Handle - Glass fibre reinforced
plastic in Traffic Red
Screw - Steel chemical black
Screw - Stainless Steel - 321S12
'
/
/
/LIW KDQGOH WR LQGH[
For all other dimensions refer to
corresponding size 8188/8320 series on
page 12-34
RAL
3020
