SECTION 3 - HAND LEVERS
WDS
WDS
www.wdsltd.co.uk3-33
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*

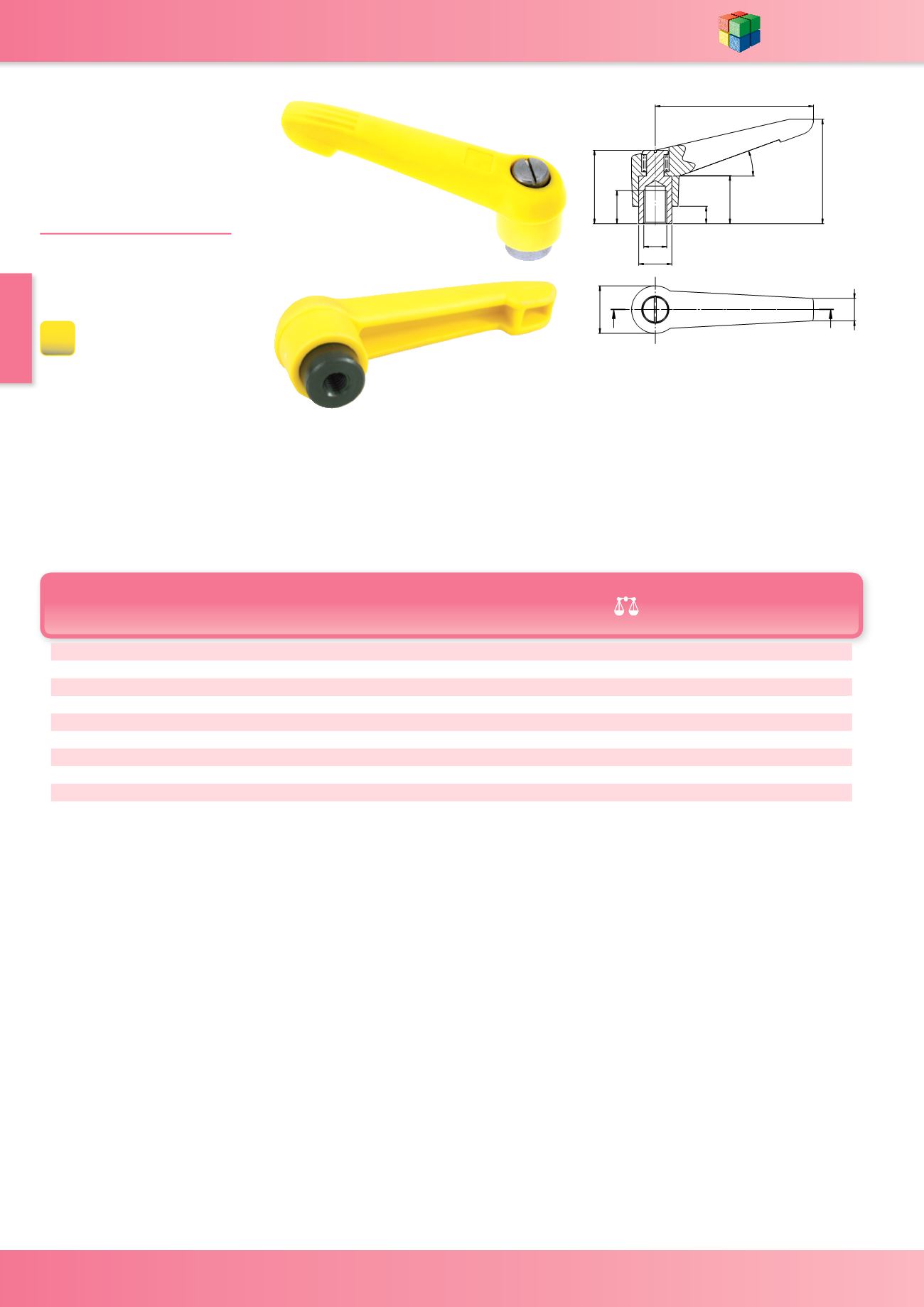

sales@wdsltd.co.ukClamping Handle
Indexing
WDS 8188/
8320
MATERIAL
-
Handle - Glass fibre reinforced
plastic in Cadmium Yellow
Screw - Steel - zinc plated
Screw - Stainless Steel - 321S12
Cadmium Yellow - RAL 1021
D B D1 D2
H H1 H2 H3
L
N T
(g)
WDS No.
Steel
Insert
WDS No.
Stainless
Steel Insert
M5 7.5 14.5 10 29.5 24 15
4
40 16
9
13 8188-222CY 8320-222CY
M6 7.5 14.5 10 29.5 24 15
4
40 16
9
13 8188-223CY 8320-223CY
M6 9.5 19.5 13 41 29 17.5 6.5 65 20 12 30 8188-224CY 8320-224CY
M8 9.5 19.5 13 41 29 17.5 6.5 65 20 12 30 8188-225CY 8320-225CY
M8 11 23 16 53 37.5 24 10 80 22 14 52 8188-226CY 8320-226CY
M10 11 23 16 53 37.5 24 10 80 22 14 52 8188-227CY 8320-227CY
M10 13 27.5 19 61 42.5 27 10 95 24 17 82 8188-228CY 8320-228CY
M12 13 27.5 19 61 42.5 27 10 95 24 17 82 8188-229CY 8320-229CY
M12 15.5 32.5 23 72.5 51 33 12 110 26 23 136 8188-230CY 8320-230CY
M16 15.5 32.5 23 72.5 51 33 12 110 26 23 136 8188-231CY 8320-231CY
'
%
1 1XPEHU RI LQGH[LQJ SRVLWLRQV
'
'
+
+
/
+
7
+
r
/LIW KDQGOH WR LQGH[
N = No. of indexing positions
RAL
1021
