SECTION 3 - HAND LEVERS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk3-28
WDS

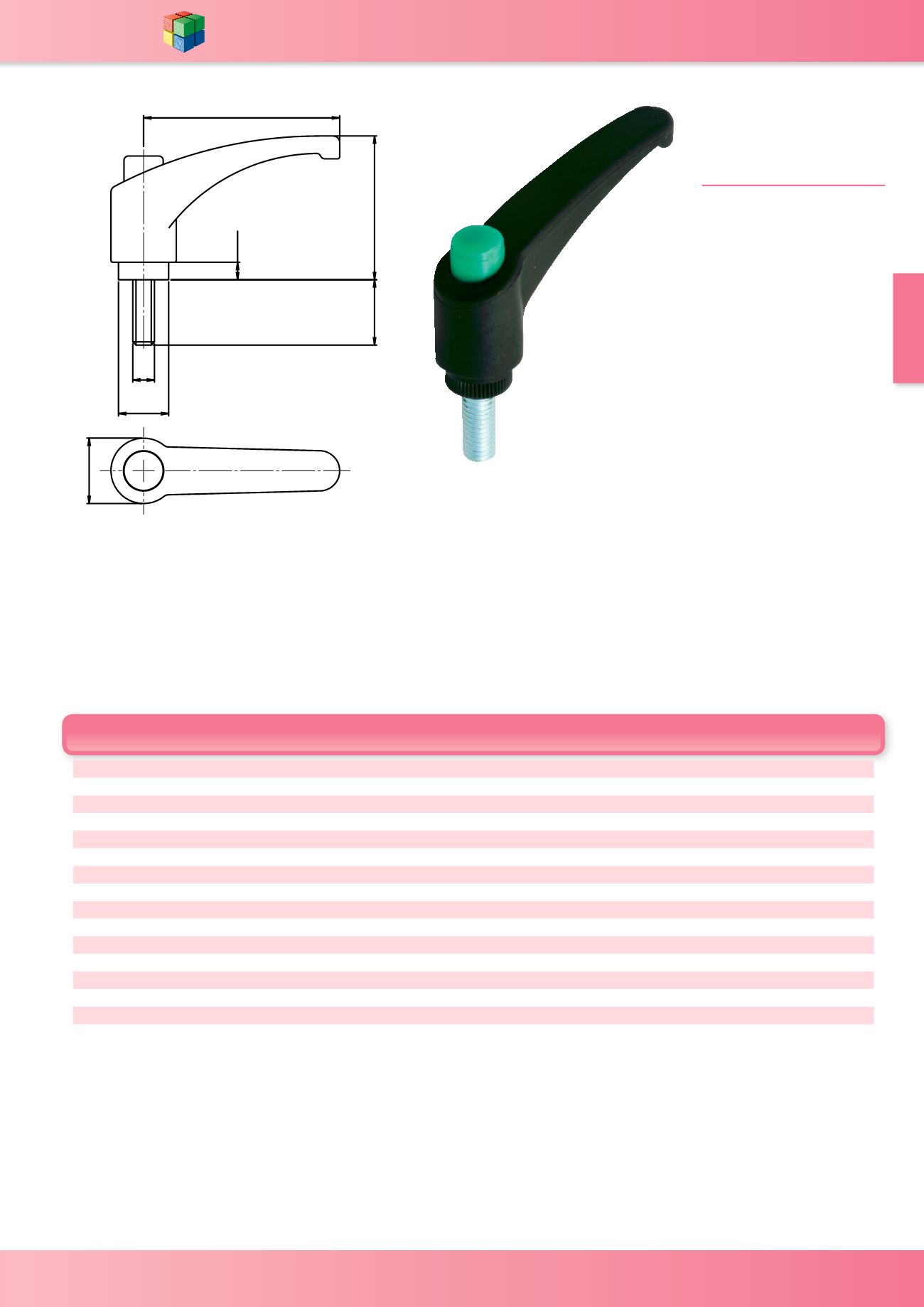

www.wdsltd.co.ukClamping Lever -
Indexing
WDS 8238
MATERIAL
-
Handle - Plastic PA6
Thread- Steel Zinc plated
D
D1
D2
H
H1
L
L1
WDS No.
M5
15
11.5
33
4
45
15
8238-50515
M5
15
11.5
33
4
45
20
8238-50520
M5
15
11.5
33
4
45
25
8238-50525
M6
15
11.5
33
4
45
15
8238-50615
M6
15
11.5
33
4
45
20
8238-50620
M6
15
11.5
33
4
45
30
8238-50630
M8
20
16
43
7
65
20
8238-50820
M8
20
16
43
7
65
30
8238-50830
M8
20
16
43
7
65
50
8238-50850
M10
22.5
19
54
12
80
25
8238-51025
M10
22.5
19
54
12
80
40
8238-51040
M10
22.5
19
54
12
80
50
8238-51050
M12
27
21.5
63
13
95
25
8238-51225
M12
27
21.5
63
13
95
40
8238-51240
M12
27
21.5
63
13
95
60
8238-51260
Black /Green Knob
H
D
D2
L
H1
L1
D1
