SECTION 3 - HAND LEVERS WDS
& 0845 606 66 77 • : • * 3-30
WDS

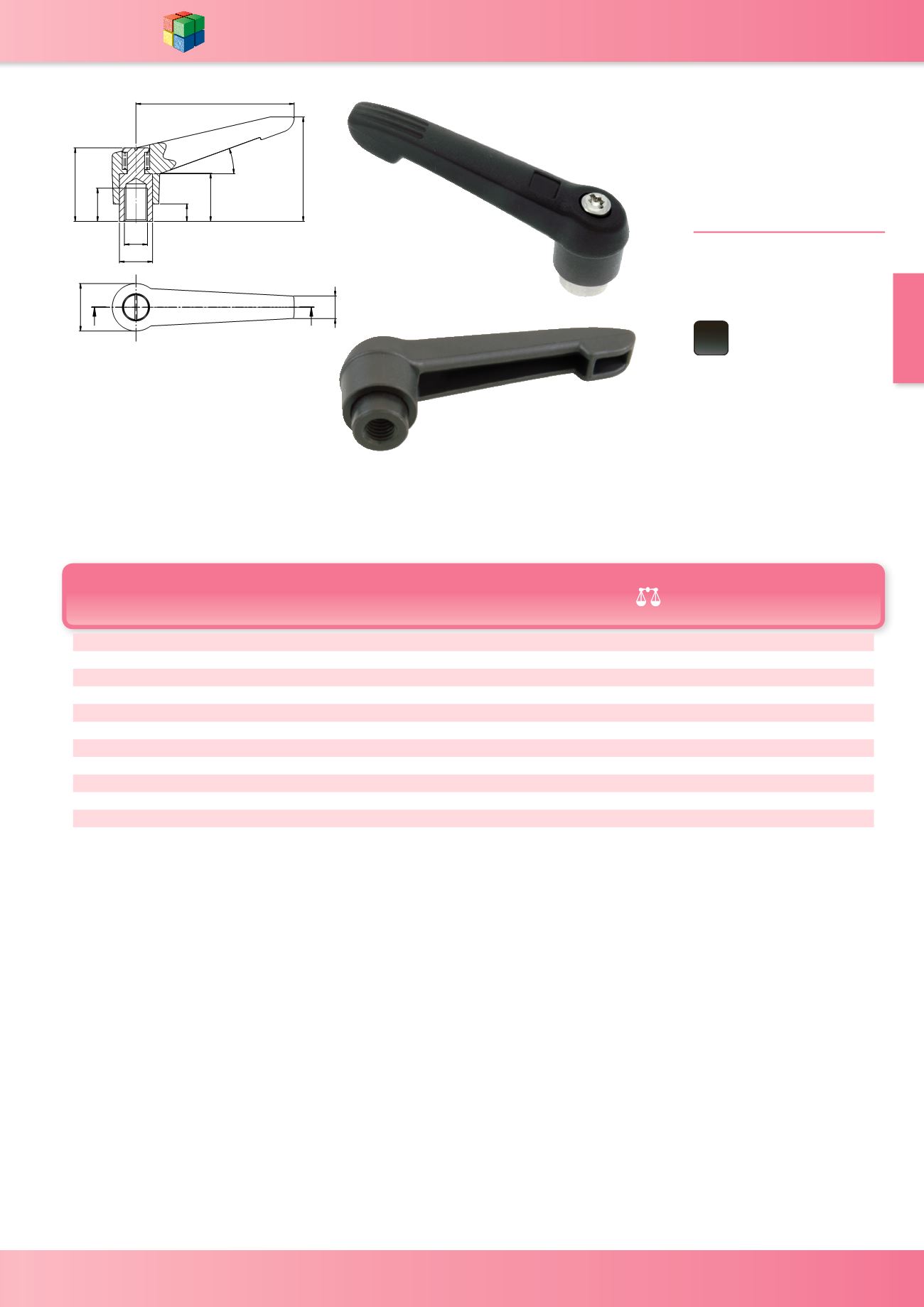

Clamping Handle
Indexing
WDS 8188/
8320
MATERIAL -
Handle - Glass fibre reinforced
plastic in Black Grey
Screw - Steel - zinc plated
Screw - Stainless Steel - 321S12
' %
1 1XPEHU RI LQGH[LQJ SRVLWLRQV
'
' +
+
/
+
7
+
r
/LIW KDQGOH WR LQGH[
N = No. of indexing positions
D B D1 D2 H H1 H2 H3 L N T (g)
WDS No.
Steel
Insert
WDS No.
Stainless
Steel Insert
M4 7.5 14.5 10 29.5 24 15 4 40 16 9 13 8188-221 -
M5 7.5 14.5 10 29.5 24 15 4 40 16 9 13 8188-222 8320-222
M6 7.5 14.5 10 29.5 24 15 4 40 16 9 13 8188-223 8320-223
M6 9.5 19.5 13 41 29 17.5 6.5 65 20 12 30 8188-224 8320-224
M8 9.5 19.5 13 41 29 17.5 6.5 65 20 12 30 8188-225 8320-225
M8 11 23 16 53 37.5 24 10 80 22 14 52 8188-226 8320-226
M10 11 23 16 53 37.5 24 10 80 22 14 52 8188-227 8320-227
M10 13 27.5 19 61 42.5 27 10 95 24 17 82 8188-228 8320-228
M12 13 27.5 19 61 42.5 27 10 95 24 17 82 8188-229 8320-229
M12 15.5 32.5 23 72.5 51 33 12 110 26 23 136 8188-230 8320-230
M16 15.5 32.5 23 72.5 51 33 12 110 26 23 136 8188-231 8320-231
Black Grey - RAL 7021
RAL
7021
