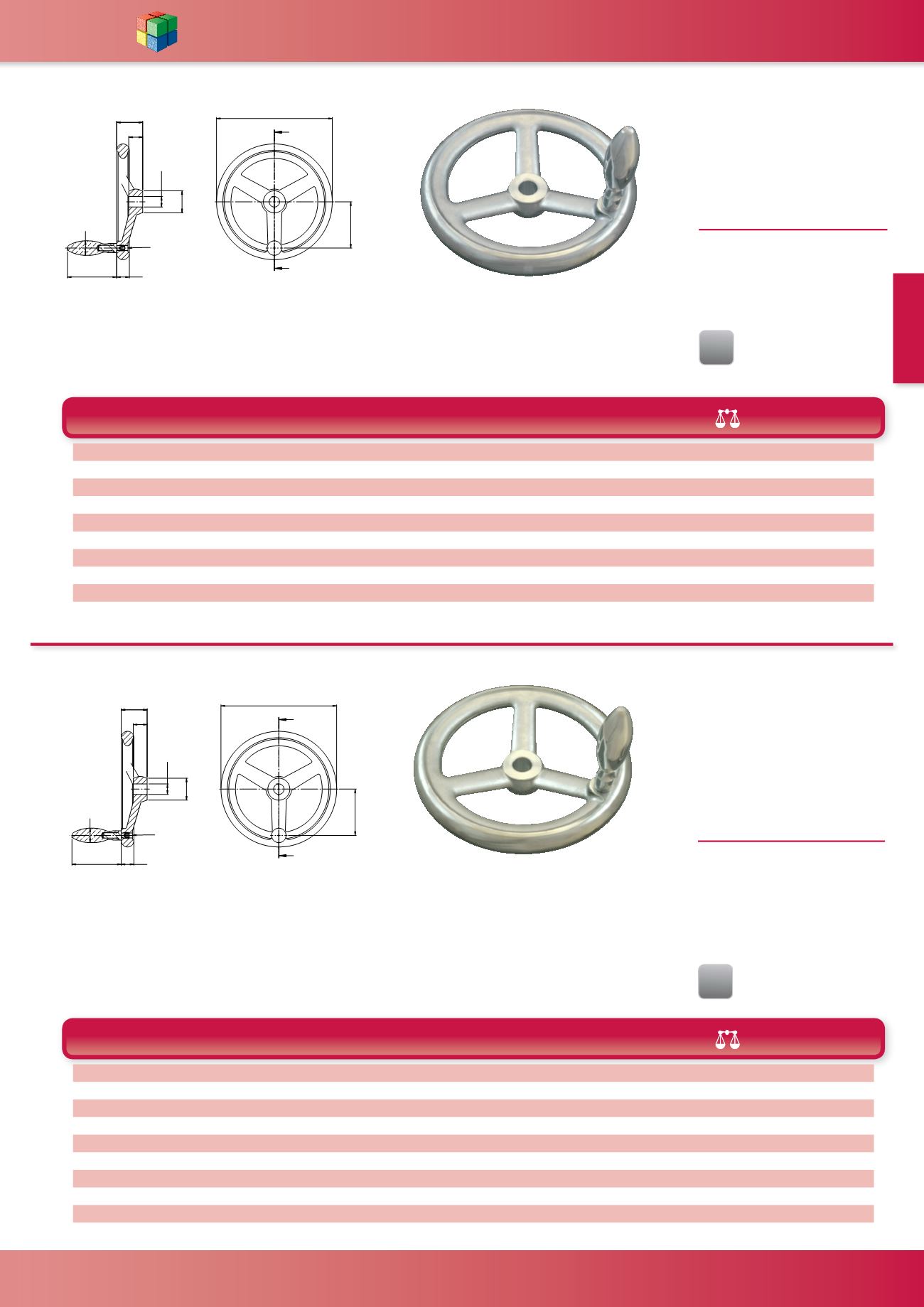

SECTION 4 - HANDWHEELS & GRIPS WDS
& 0845 606 66 77 • : • * 4-2
WDS
Aluminium
Handwheel with
Turned Rim - Pilot
Bore with Fixed Grip
MATERIAL -
Aluminium AlSi9Mg,
Boss machined, Rim Turned
Fixed Aluminium Grip supplied loose
Bore D1 is a pilot hole only, for
customisation N = No of Spokes
D
A
D2
L1
L
B
D1
H
J M
Al
D B D1 D2 L L1 A M H J N (g) WDS No.
80 14 5 24 29 16 27 M6 55 16 3 120 8179-470AF
100 15 5 26 33 17 36 M6 55 16 3 203 8179-471AF
125 16 6 28 36 18 47 M8 70 20 3 306 8179-472AF
160 18 6 32 40 20 62 M10 85 25 3 512 8179-473AF
200 22 6 38 45 24 80 M10 85 25 3 862 8179-474AF
250 26 8 45 50 28 101 M12 100 32 5 1594 8179-475AF
315 26 8 53 56 33 132 M12 100 32 5 2424 8179-476AF
400 32 8 65 63 38 171 M16 111 36 5 4051 8179-477AF
500 34 10 78 72 45 220 M16 111 36 5 5916 8179-478AF
WDS 8179
Aluminium
Handwheel with
Turned Rim - Pilot
Bore with Revolving
Grip
MATERIAL -
Aluminium AlSi9Mg,
Boss machined, Rim Turned
Aluminium
Revolving Grip supplied loose
Bore D1 is a pilot hole only, for
customisation
N = No of Spokes
D
A
D2
L1
L
B
D1
H
J M
Al
D B D1 D2 L L1 A M H J N (g) WDS No.
80 14 5 24 29 16 27 M6 55 16 3 120 8179-470AR
100 15 5 26 33 17 36 M6 55 16 3 203 8179-471AR
125 16 6 28 36 18 47 M8 70 20 3 306 8179-472AR
160 18 6 32 40 20 62 M10 85 25 3 512 8179-473AR
200 22 6 38 45 24 80 M10 85 25 3 862 8179-474AR
250 26 8 45 50 28 101 M12 100 32 5 1594 8179-475AR
315 26 8 53 56 33 132 M12 100 32 5 2424 8179-476AR
400 32 8 65 63 38 171 M16 111 36 5 4051 8179-477AR
500 34 10 78 72 45 220 M16 111 36 5 5916 8179-478AR
WDS 8179
