SECTION 4 - HANDWHEELS & GRIPS WDS
& 0845 606 66 77 • : • * 4-20
WDS

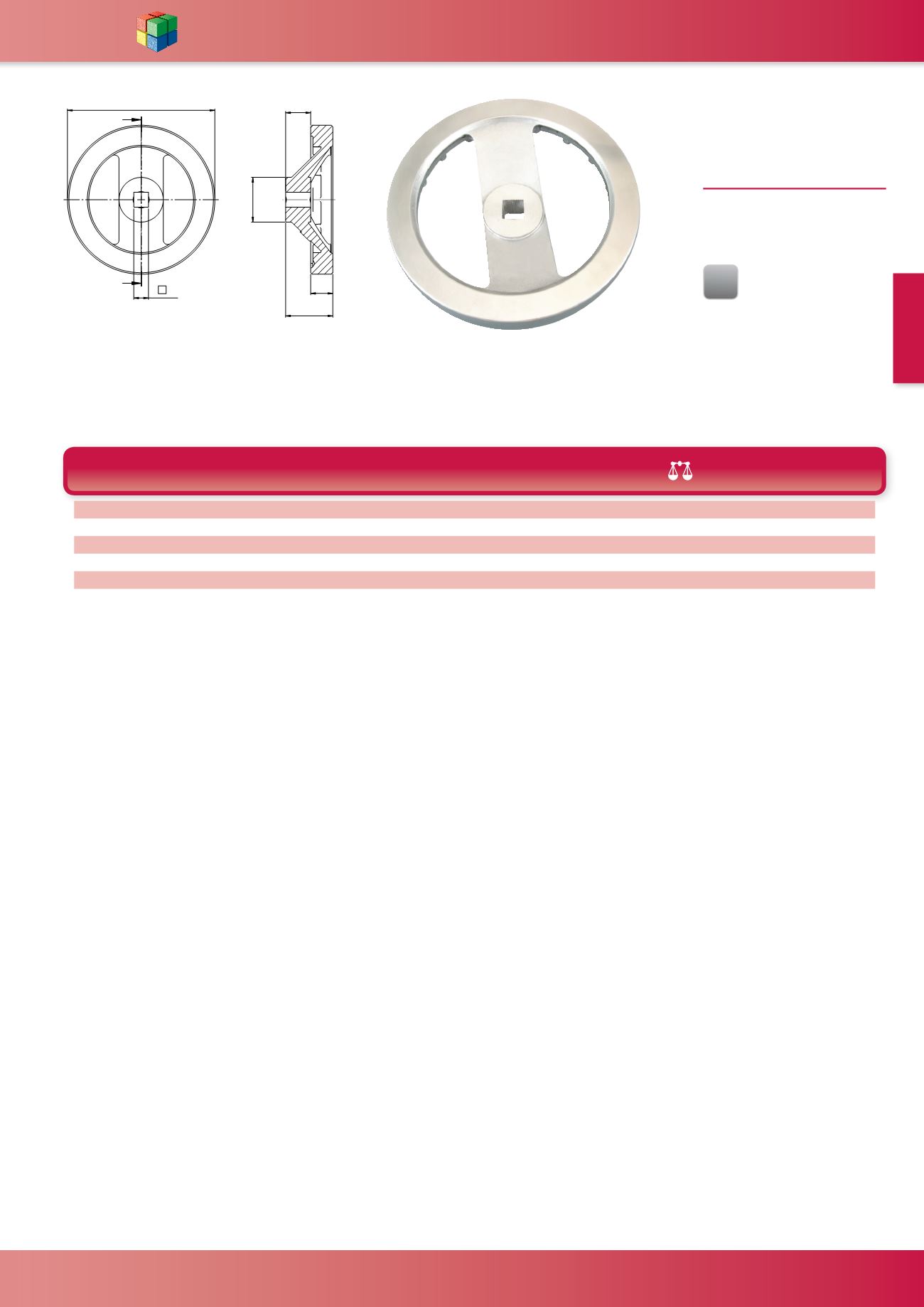

Handwheel - H8
Square Hole
WDS 8178
MATERIAL -
Aluminium - Al Si 9 Mg
Boss machined, rim machined and
polished
D B D1 (H8) D2 L L1 (g) WDS No.
80 15 10 25 31 16 140 8178-500
100 15 10 30 32 17 200 8178-501
125 16 12 35 34 18 330 8178-502
160 18 14 40 37 20 530 8178-503
200 21 18 45 45 24 970 8178-504
D
D
D2
B
L
L1
Al
