www.wdsltd.co.ukHandwheel without
Grip

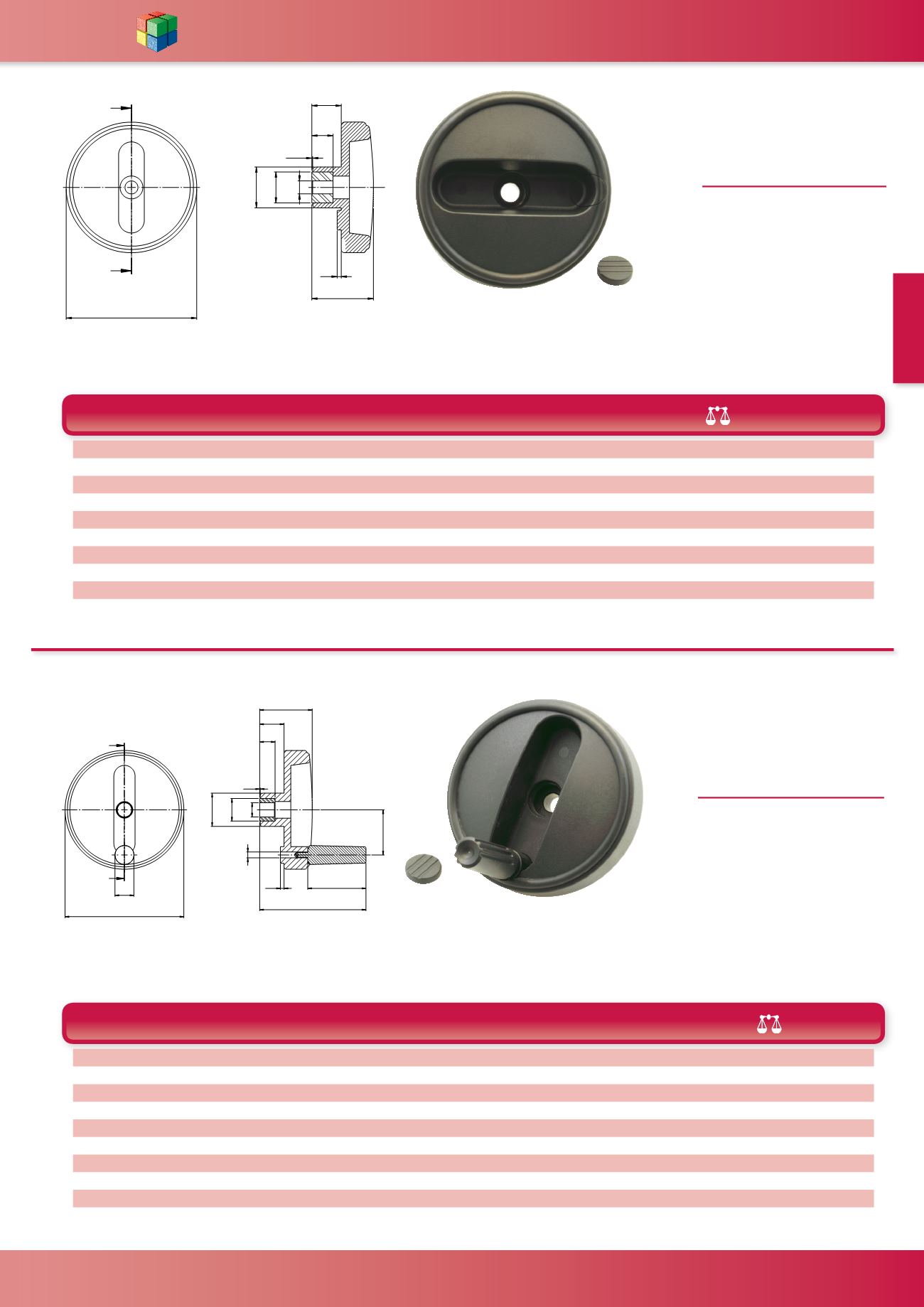

WDS 8400
MATERIAL
-
Wheel - Thermoplastic
Insert - Steel, chemical black
D
H7
D1
D2
D3
A1
H
H1
L1
(g)
WDS No.
8
80
25
19
2.5
17.5
13
37.5
74
8400-202
10
80
25
19
2.5
17.5
13
37.5
71
8400-204
12
80
25
19
2.5
17.5
13
37.5
68
8400-206
10
100
28
19
3
20
13
44
125
8400-208
12
100
28
19
3
20
13
44
121
8400-210
12
125
35
25
4
23.5
18.5
53
229
8400-212
14
125
35
25
4
23.5
18.5
53
223
8400-214
16
125
35
25
4
23.5
18.5
53
216
8400-216
14
160
45
25
5.6
28
18.5
64.5
425
8400-218
16
160
45
25
5.6
28
18.5
64.5
418
8400-220
'
'
'
'
+
+
$
/
Handwheel with
Fixed Revolving Grip
WDS 8405
MATERIAL
-
Wheel - Thermoplastic
Insert - Steel, chemical black
D
H7
D1 D2 D3 D4 D5
A
A1
H H1
L
L1
L2
(g) WDS No.
8
80 25 19 13 M4 30 2.5 17.5 13 75 37.5 40 101 8405-202
10 80 25 19 13 M4 30 2.5 17.5 13 75 37.5 40 98 8405-204
12 80 25 19 13 M4 30 2.5 17.5 13 75 37.5 40 95 8405-206
10 100 28 19 16 M5 38
3
20 13 90 44 49.5 178 8405-208
12 100 28 19 16 M5 38
3
20 13 90 44 49.5 174 8405-210
12 125 35 25 20 M6 47.5 4 23.5 18.5 109 53 60 318 8405-212
14 125 35 25 20 M6 47.5 4 23.5 18.5 109 53 60 312 8405-214
16 125 35 25 20 M6 47.5 4 23.5 18.5 109 53 60 306 8405-216
14 160 45 25 25 M8 62 5.6 28 18.5 144 64.5 83.5 636 8405-218
16 160 45 25 25 M8 62 5.6 28 18.5 144 64.5 83.5 629 8405-220
'
'
+
+
$
$
/
'
'
'
'
/
/
