SECTION 4 - HANDWHEELS & GRIPS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk4-24
WDS

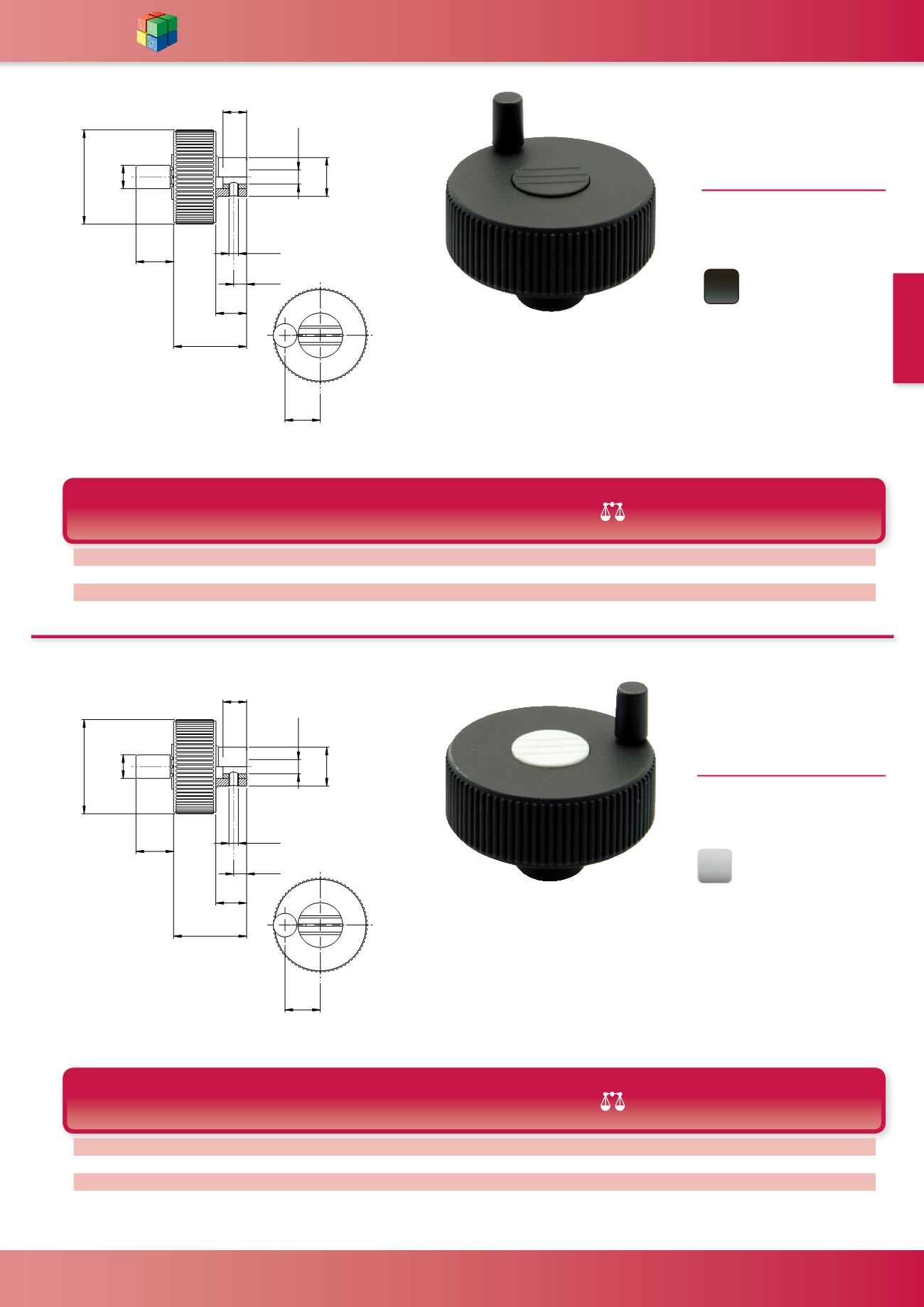

www.wdsltd.co.ukPositioning Wheel
with Revolving Grip
WDS 8490
MATERIAL
-
Body - Thermoplastic with
Black
Grey
cap
Insert - Steel, zinc plated
D
H8
D1 D2 D3 D4 H H1 H2 H3 L
T
(g)
WDS No.
Without Tapped
Hole
WDS No.
With M4 Tapped
Hole and Screw
6 40 16.5 10 M4 31 13 16 5.5 15 10 17 8490-202BG 8490-302BG
6 50 18 10 M4 36 15 16 5.5 18.5 10 20 8490-204BG 8490-304BG
8 63 22 10 M4 41 17 16 8 25 14 23 8490-206BG 8490-306BG
'
+
'
'
+
7
+
'
+
'
/
'
+
'
+
7
+
+
'
/
RAL
7021
Positioning Wheel
with Revolving Grip
WDS 8490
MATERIAL
Body - Thermoplastic with
Pale Grey
cap
Insert - Steel, zinc plated
D
H8
D1 D2 D3 D4 H H1 H2 H3 L
T
(g)
WDS No.
Without Tapped
Hole
WDS No.
With M4 Tapped
Hole and Screw
6 40 16.5 10 M4 31 13 16 5.5 15 10 17 8490-202PG 8490-302PG
6 50 18 10 M4 36 15 16 5.5 18.5 10 20 8490-204PG 8490-304PG
8 63 22 10 M4 41 17 16 8 25 14 23 8490-206PG 8490-306PG
'
+
'
'
+
7
+
'
+
'
/
'
+
'
+
7
+
+
'
/
RAL
7035
