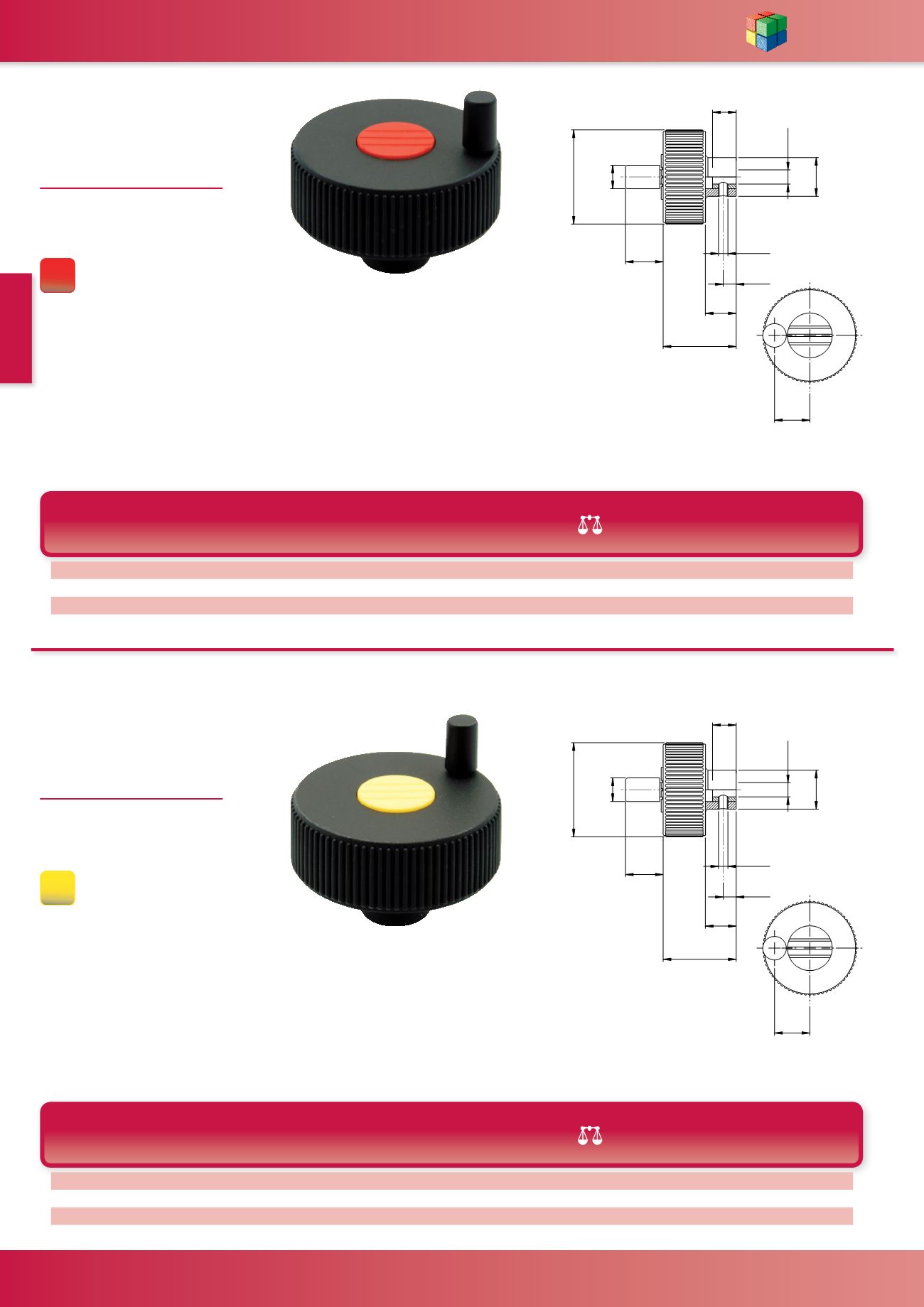

sales@wdsltd.co.ukPositioning Wheel
with Revolving Grip
WDS 8490
MATERIAL
-
Body - Thermoplastic with
Traffic
Red
cap
Insert - Steel, zinc plated
D
H8
D1 D2 D3 D4 H H1 H2 H3 L
T
(g)
WDS No.
Without Tapped
Hole
WDS No.
With M4 Tapped
Hole and Screw
6 40 16.5 10 M4 31 13 16 5.5 15 10 17 8490-202TR 8490-302TR
6 50 18 10 M4 36 15 16 5.5 18.5 10 20 8490-204TR 8490-304TR
8 63 22 10 M4 41 17 16 8 25 14 23 8490-206TR 8490-306TR
'
+
'
'
+
7
+
'
+
'
/
'
+
'
'
+
7
+
'
+
'
/
RAL
3020
Positioning Wheel
with Revolving Grip
WDS 8490
MATERIAL
-
Body - Thermoplastic with
Cadmium Yellow
cap
Insert - Steel, zinc plated
D
H8
D1 D2 D3 D4 H H1 H2 H3 L
T
(g)
WDS No.
Without Tapped
Hole
WDS No.
With M4 Tapped
Hole and Screw
6 40 16.5 10 M4 31 13 16 5.5 15 10 17 8490-202CY 8490-302CY
6 50 18 10 M4 36 15 16 5.5 18.5 10 20 8490-204CY 8490-304CY
8 63 22 10 M4 41 17 16 8 25 14 23 8490-206CY 8490-306CY
'
+
'
'
+
