SECTION 8 - HANDLES, LATCHES & CATCHES WDS
✆ 0845 606 66 77 •  •  8-24
WDS
A B D D1 D2 H H1 H2 M (g) WDS No.
180 210 20 30 50 55 42 16 M8x30 170 8517-251
200 230 20 30 50 55 42 16 M8x30 175 8517-252
250 280 20 30 50 55 42 16 M8x30 200 8517-253
300 330 20 30 50 55 42 16 M8x30 205 8517-254
350 380 20 30 50 55 42 16 M8x30 220 8517-255
400 430 20 30 50 55 42 16 M8x30 221 8517-256
500 530 20 30 50 55 42 16 M8x30 260 8517-257
600 630 20 30 50 55 42 16 M8x30 290 8517-258
250 294 30 44 73 80 60 25 M10x45 405 8517-263
300 344 30 44 73 80 60 25 M10x45 423 8517-264
350 394 30 44 73 80 60 25 M10x45 437 8517-265
400 444 30 44 73 80 60 25 M10x45 466 8517-266
500 544 30 44 73 80 60 25 M10x45 504 8517-267
600 644 30 44 73 80 60 25 M10x45 528 8517-268

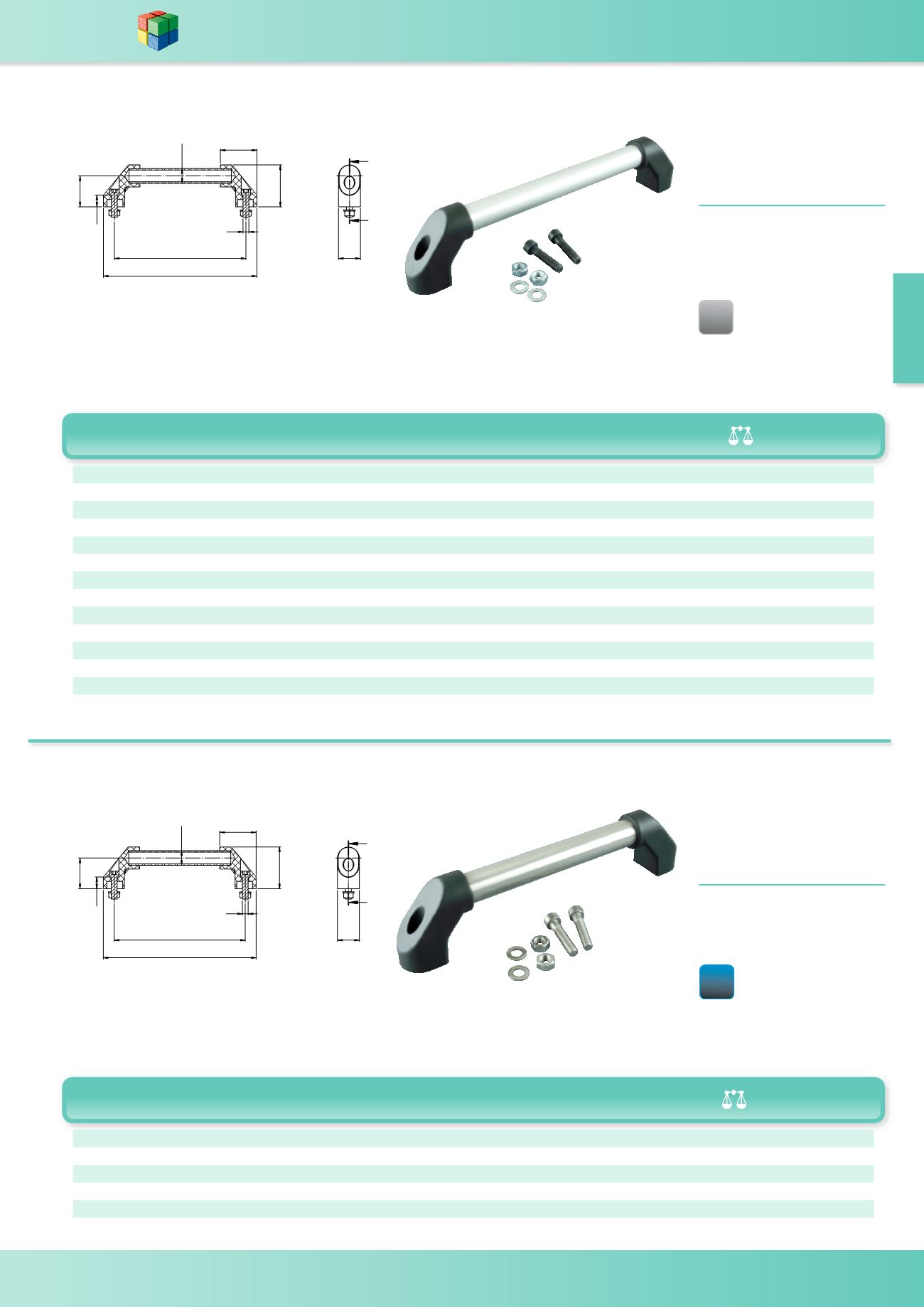

Tubed Bridge Handle
Front Mounted -
SIlver
WDS 8517
MATERIAL -
Sides - Glass Reinforced Polyamide
PA6, matt black finish - RAL 9005
Grip - Aluminium Tube Anodised,
AlMgSi 0.5 Silver.
Screws, Nuts and Washers supplied.
Note: the maximum load capacity for this
handle is 100KG
D1
D
H1
B
A
D2
H
M
H2
A B D D1 D2 H H1 H2 M (g) WDS No.
250 294 30 44 73 80 60 25 M10x45 528 8517-603
300 344 30 44 73 80 60 25 M10x45 566 8517-604
350 394 30 44 73 80 60 25 M10x45 634 8517-605
400 444 30 44 73 80 60 25 M10x45 665 8517-606
500 544 30 44 73 80 60 25 M10x45 792 8517-607
600 644 30 44 73 80 60 25 M10x45 897 8517-608
Tubed Handle Front
Mounted with
Stainless Steel Grip
WDS 8517
MATERIAL -
Sides - Glass Reinforced Polyamide
PA6, Matt Black Finish - RAL 9005
Grip - Stainless Steel (1.4301)
Screws, Nuts and Washers supplied
Note: the maximum load capacity for this
handle is 100KG
D1
D
H1
B
A
D2
H
M
H2
