SECTION 8 - HANDLES, LATCHES & CATCHES WDS
WDS
8-25 ✆ 0845 606 66 77 •  • 
A B D D1 D2 H H1 H2 M (g) WDS No.
180 210 20 30 50 55 42 16 M8x30 170 8517-201
200 230 20 30 50 55 42 16 M8x30 175 8517-202
250 280 20 30 50 55 42 16 M8x30 190 8517-203
300 330 20 30 50 55 42 16 M8x30 205 8517-204
350 380 20 30 50 55 42 16 M8x30 220 8517-205
400 430 20 30 50 55 42 16 M8x30 355 8517-206
500 530 20 30 50 55 42 16 M8x30 304 8517-207
600 630 20 30 50 55 42 16 M8x30 355 8517-208
250 294 30 44 73 80 60 25 M10x45 423 8517-213
300 344 30 44 73 80 60 25 M10x45 456 8517-214
350 394 30 44 73 80 60 25 M10x45 480 8517-215
400 444 30 44 73 80 60 25 M10x45 485 8517-216
500 544 30 44 73 80 60 25 M10x45 566 8517-217
600 644 30 44 73 80 60 25 M10x45 617 8517-218

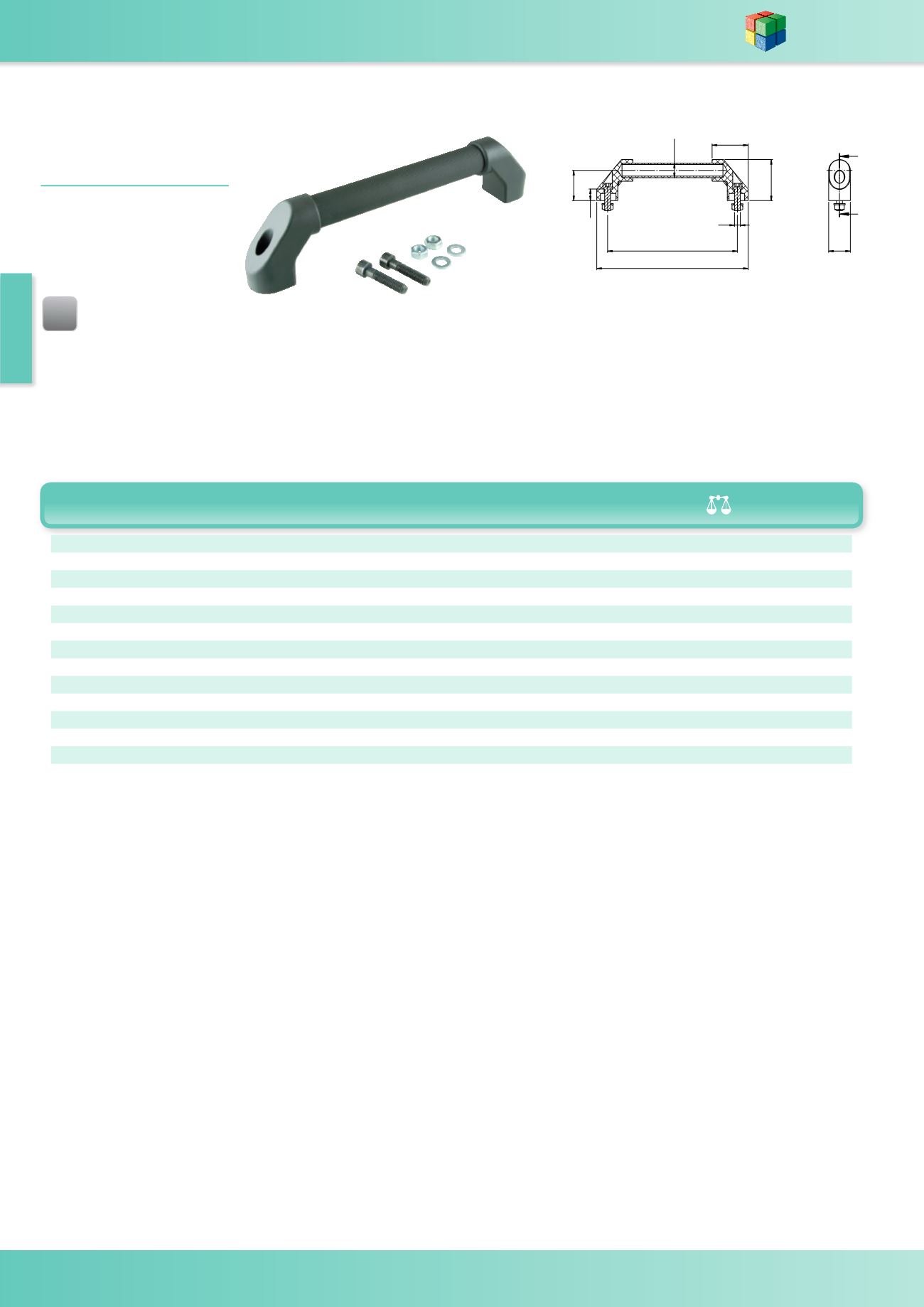

Tubed Handle - Front
Mounted - Black
WDS 8517
MATERIAL -
Sides - Glass Reinforced Polyamide,
Matt Black Finish -RAL 9005
Grip - Aluminium Tube AlMgSi 0.5
Anodised, Covered with a black
grooved plastic coating
Screws, Nuts and Washers supplied
Note: the maximum load capacity for this
handle is 100KG
D1
D
H1
B
A
D2
H
M
H2
Al
