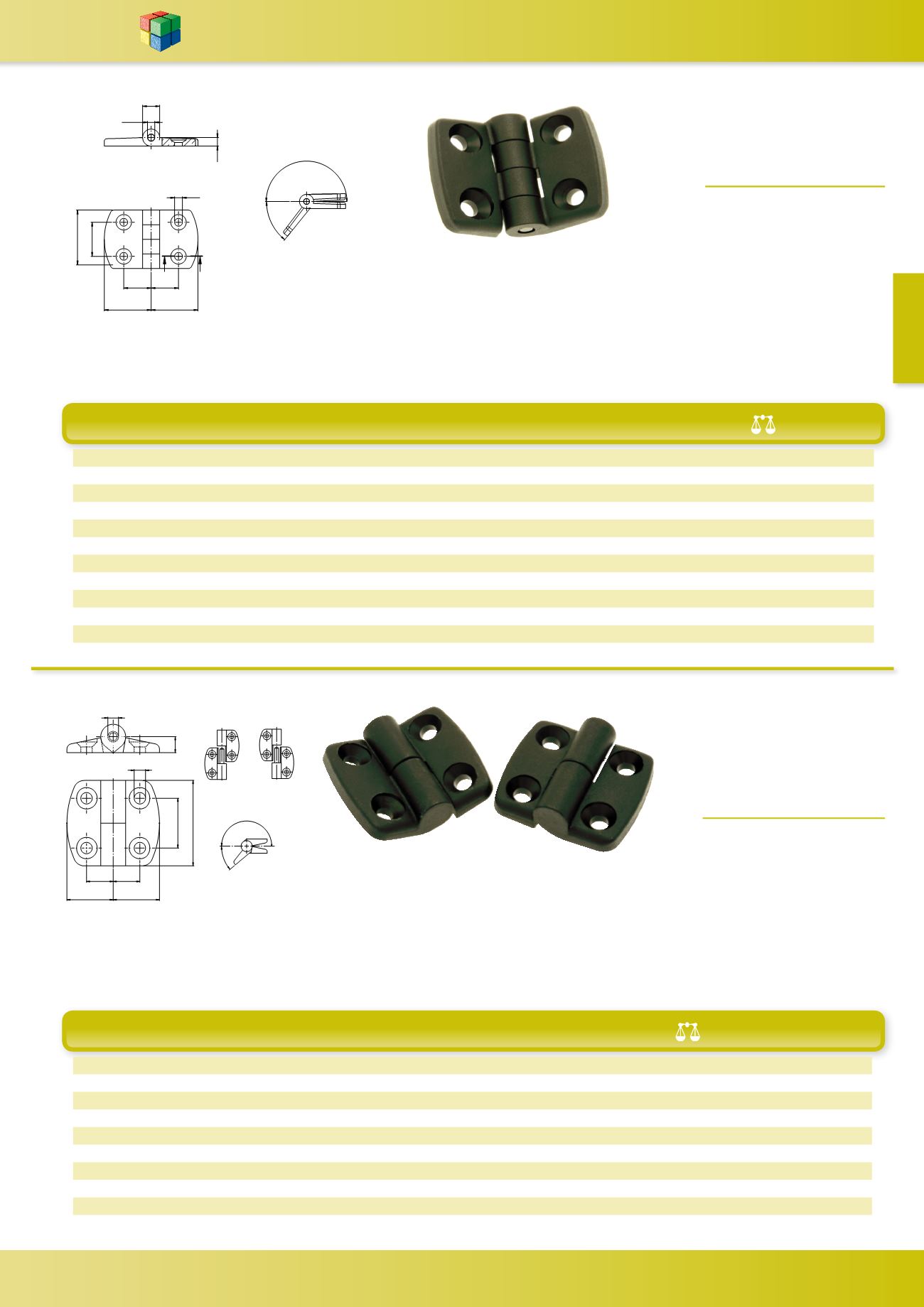

www.wdsltd.co.ukHinge - Surface
Mount - Polyamide
WDS 8605
MATERIAL
-
Black glass reinforced plastic
Hinge Pin - Stainless steel 430F
(1.4104)
Note: Usable with profile systems with
slot sizes 8mm or 10mm by means of
removable spigots
Not applicable to WDS No. 8605-201
D D1 D2
L
L1
L2
C C1 C2
H
A
Fa
Fr
(g) WDS No.
8 4.4 3
30 19.5 19.5 14 11.5 11.5 5
50 20 40 7.5 8605-201
14 6.4 6
48 29.5 29.5 28 17.5 17.5 9
40 40 71 34.5 8605-203
14 6.4 6
48 29.5 43.5 28 17.5 25
9
40 45 76 39.5 8605-205
14 6.4 6
48 29.5 57.5 28 17.5 32.5 9
40 20 86 44.5 8605-207
14 6.4 6
48 38.5 38.5 28 22.5 22.5 9
40 45 76 42.5 8605-209
14 6.4 6
48 38.5 48.5 28 22.5 27.5 9
40 43 81 45.5 8605-211
14 6.4 6
48 38.5 57.5 28 22.5 32.5 9
40 18 86 48.5 8605-213
14 6.4 6
48 43.5 43.5 28 25 25
9
40 46 76 44.5 8605-215
14 6.4 6
48 43.5 57.5 28 25 32.5 9
40 20 86 49.5 8605-217
14 6.4 6
48 48.5 48.5 28 27.5 27.5 9
40 43 81 49.5 8605-219
14 6.4 6
48 57.5 57.5 28 32.5 32.5 9
40 18 86 54.5 8605-221
'
'
+
'
& &
&
/
/
/
$
r
)D 0D[ /RDG $[LDO NJ
)U 0D[ /RDG 5DGLDO NJ
Please refer to page 9-28, for full
Technical Information on Fa and Fr
dimensions
D D1 D2
L
L1 L2
C C1 C2
H Fa
Fr
(g) Left Hand
WDS No.
Right Hand
WDS No.
14 6.4 6 48 26 26 28 15 15 9 40 63 32 8600-201 8600-301
14 6.4 6 48 26 35 28 15 20 9 40 70 35 8600-203 8600-303
14 6.4 6 48 29.5 29.5 28 17.5 17.5 9 50 76 35 8600-205 8600-305
14 6.4 6 48 29.5 43.5 28 17.5 25 9 36 81 40 8600-207 8600-307
14 6.4 6 48 35 35 28 20 20 9 40 76 39 8600-209 8600-309
14 6.4 6 48 38.5 38.5 28 22.5 22.5 9 40 81 42 8600-211 8600-311
14 6.4 6 48 43.5 43.5 28 25 25 9 33 81 44 8600-213 8600-313
14 6.4 6 48 48.5 48.5 28 27.5 27.5 9 32 81 49 8600-215 8600-315
14 6.4 6 48 57.5 57.5 28 32.5 32.5 9 24 91 56 8600-217 8600-317
Hinge - Surface
Mount Lift Off -
Polyamide
WDS 8600
MATERIAL
-
Black glass reinforced plastic
Hinge Pin - Stainless Steel Grade
1.4104
Note: Usable for profile systems with
slot sizes 8mm or 10mm by means of
removable spigots.
r
r
'
+
/
&
& &
'
/
/
/HIW +DQG 5LJKW +DQG
)D 0D[ /RDG $[LDO NJ
)U 0D[ /RDG 5DGLDO NJ
r
r
'
+
/
&
& &
'
/
/
/HIW +DQG 5LJKW +DQG
)D 0D[ /RDG $[LDO NJ
)U 0D[ /RDG 5DGLDO NJ
Please refer to page 9-28, for full
Technical Information on Fa and Fr
dimensions
