SECTION 14 - GAS STRUTS & END FITTINGS
WDS
WDS
www.wdsltd.co.uk14-5
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk&
/
/
/
$
31
0
%
5RG (QG 7KUHDG 6[7
3UHVVXUH $GMXVWLQJ
6FUHZ LQ %UDVV (QG
A B C
L
L1 L2
M N P
S
T
Force
Range
Rod
Dia
Body
Dia
Extended
Centres
Extended
Shoulder
Length
Stroke
Fitting
Length
Fitting
Thread
Fitting
Thread
Length
Fitting
Height
Rod End
Thread
Rod End
Thread
Length
Angle
Joint Ball
Diameter
Newtons
(kg) WDS No.
6 15 222 172 60 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 20-400 0.14 850-0615060
6 15 302 252 100 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 20-400 0.165 850-0615100
6 15 402 352 150 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 20-400 0.195 850-0615150
6 15 502 452 200 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 20-400 0.225 850-0615200
8 19 302 252 100 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 50-700 0.21 850-0819100
8 19 402 352 150 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 50-700 0.255 850-0819150
8 19 502 452 200 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 50-700 0.295 850-0819200
8 19 602 552 250 25 M6 x 1.0 12.5 11 M6 x 1.0 9
10 50-700 0.345 850-0819250
10 22 517 457 200 30 M8 x 1.25 16.5 13 M8 x 1.25 12 13 100-1200 0.465 850-1022200
10 22 617 557 250 30 M8 x 1.25 16.5 13 M8 x 1.25 12 13 100-1200 0.52 850-1022250
10 22 717 657 300 30 M8 x 1.25 16.5 13 M8 x 1.25 12 13 100-1200 0.585 850-1022300
10 22 917 857 400 30 M8 x 1.25 16.5 13 M8 x 1.25 12 13 100-1200 0.705 850-1022400
14 27 524 454 200 35 M10 x1.5 20.0 16 M10 x 1.5 14 16 200-2500 0.775 850-1428200
14 27 724 654 300 35 M10 x1.5 20.0 16 M10 x 1.5 14 16 200-2500 0.995 850-1428300
14 27 924 854 400 35 M10 x1.5 20.0 16 M10 x 1.5 14 16 200-2500 1.23 850-1428400
14 27 1124 1054 500 35 M10 x1.5 20.0 16 M10 x 1.5 14 16 200-2500 1.45 850-1428500

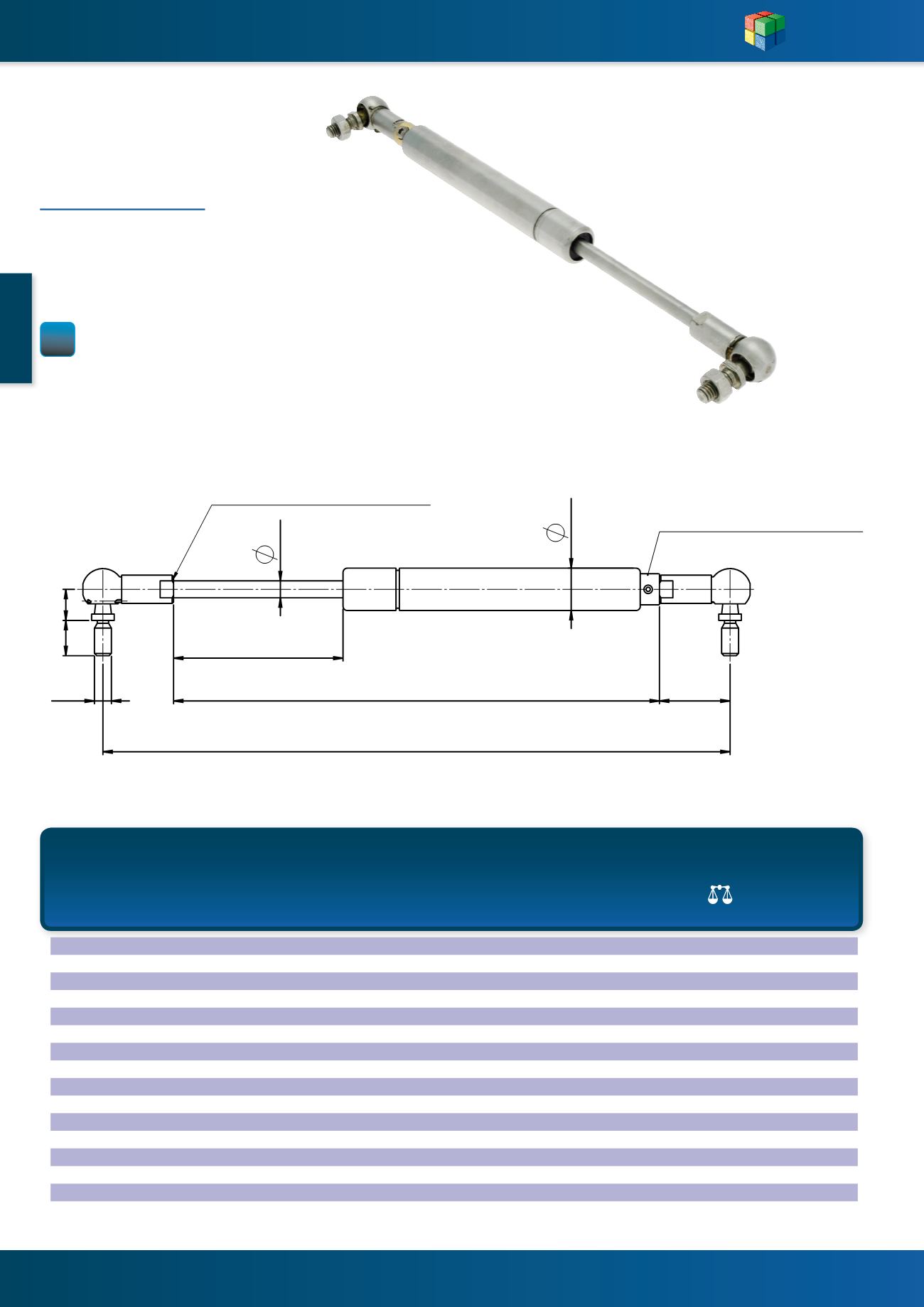

Stainless Steel
Gas Struts with
Angle Joints
WDS 850
MATERIAL
-
Body - 316 Stainless Steel
Rod - 316 Stainless Steel
Hardened
Adjusting Valve - Brass
DIN 71802 End Fittings - 304
Stainless Steel
Adjustable Force - Supplied at
maximum force to be adjusted
in position to suit the specific
application.
See also the full range of end
fittings to suit your application.
316
