SECTION 14 - GAS STRUTS & END FITTINGS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk14-6
WDS

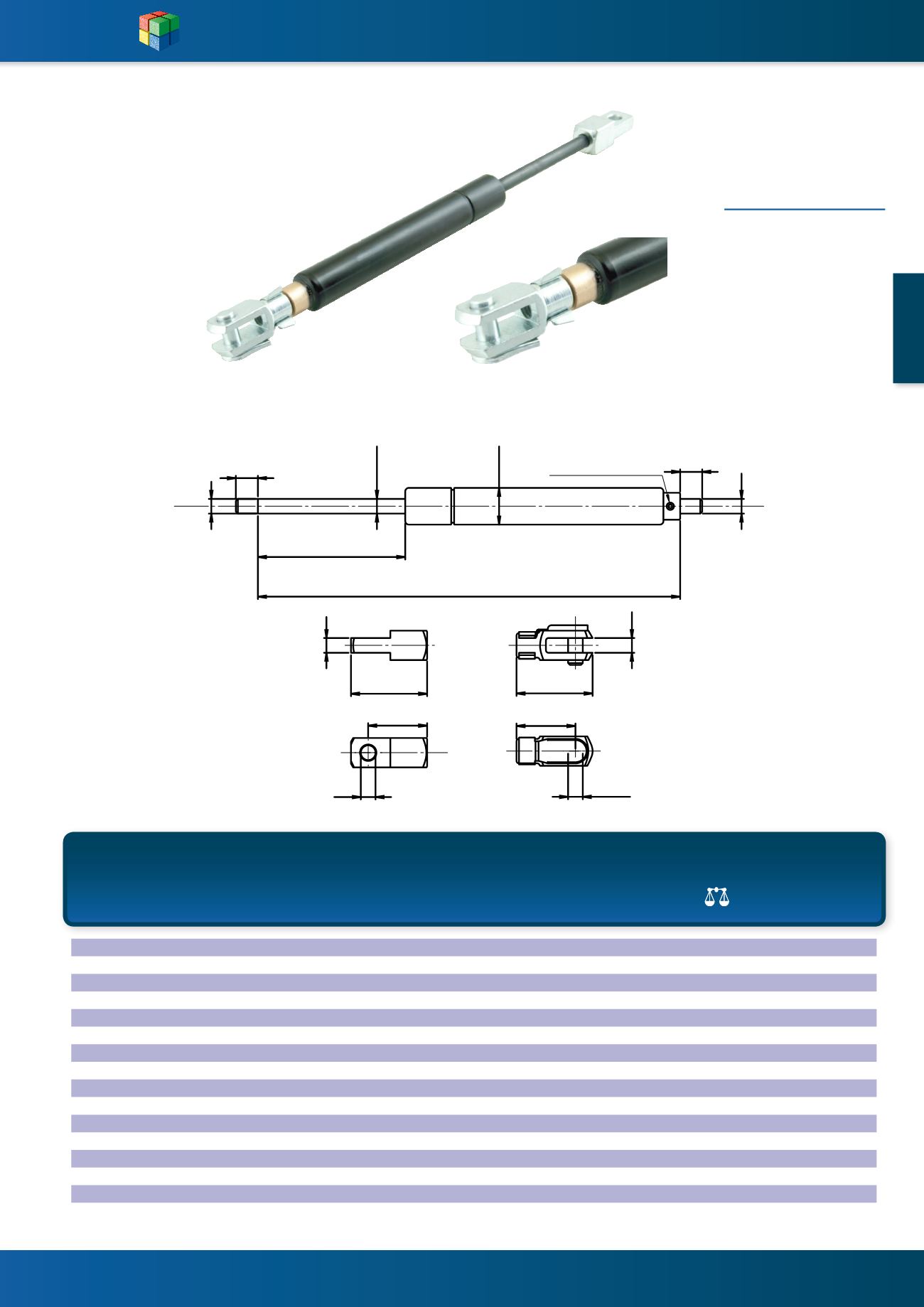

www.wdsltd.co.ukGas Struts with
Clevis Fork &
Clevis Eye
WDS 550
MATERIAL
-
Body - Steel, Black Powder
Coated
Rod - Steel Nitride and Black
Adjusting Valve - Brass
Supplied with Spring Bolt x1
Adjustable Force - Supplied at
maximum force to be adjusted
in position to suit the specific
application.
See also the full range of end
fittings to suit your
application.
L
T
S
L1
T
S
B
A
Pressure releasing
screw in brass end
E
L3
D2
L2
E
L3
L2
D
A
B
D
E
L
L1
L2 L3
S
T
Force
Range
Rod Dia Body Dia
Stroke
Rod End
Thread
Rod End
Thread
Length
Newtons
(kg)
WDS No.
6
15
6
6
172 60
24 31 M6x1.0 9 20-400 0.18 550-0615060CE
6
15
6
6
252 100 24 31 M6x1.0 9 20-400 0.205 550-0615100CE
6
15
6
6
352 150 24 31 M6x1.0 9 20-400 0.235 550-0615150CE
6
15
6
6
452 200 24 31 M6x1.0 9 20-400 0.265 550-0615200CE
8
19
6
6
252 100 24 31 M6x1.0 9 50-700 0.28 550-0819100CE
8
19
6
6
352 150 24 31 M6x1.0 9 50-700 0.33 550-0819150CE
8
19
6
6
452 200 24 31 M6x1.0 9 50-700 0.39 550-0819200CE
8
19
6
6
552 250 24 31 M6x1.0 9 50-700 0.44 550-0819250CE
10
22
8
8
457 200 32 42 M8x1.25 12 100-1200 0.621 550-1022200CE
10
22
8
8
557 250 32 42 M8x1.25 12 100-1200 0.696 550-1022250CE
10
22
8
8
657 300 32 42 M8x1.25 12 100-1200 0.761 550-1022300CE
10
22
8
8
857 400 32 42 M8x1.25 12 100-1200 0.906 550-1022400CE
14
28
10
10 462 200 40 52 M10x1.5 14 200-2500 1.076 550-1428200CE
14
28
10
10 662 300 40 52 M10x1.5 14 200-2500 1.331 550-1428300CE
14
28
10
10 862 400 40 52 M10x1.5 14 200-2500 1.596 550-1428400CE
14
28
10
10 1062 500 40 52 M10x1.5 14 200-2500 1.851 550-1428500CE
