SPENCER FRANKLIN HYDRACLAMP, HYDRAULICS
AND PNEUMATICS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk21-20
WDS

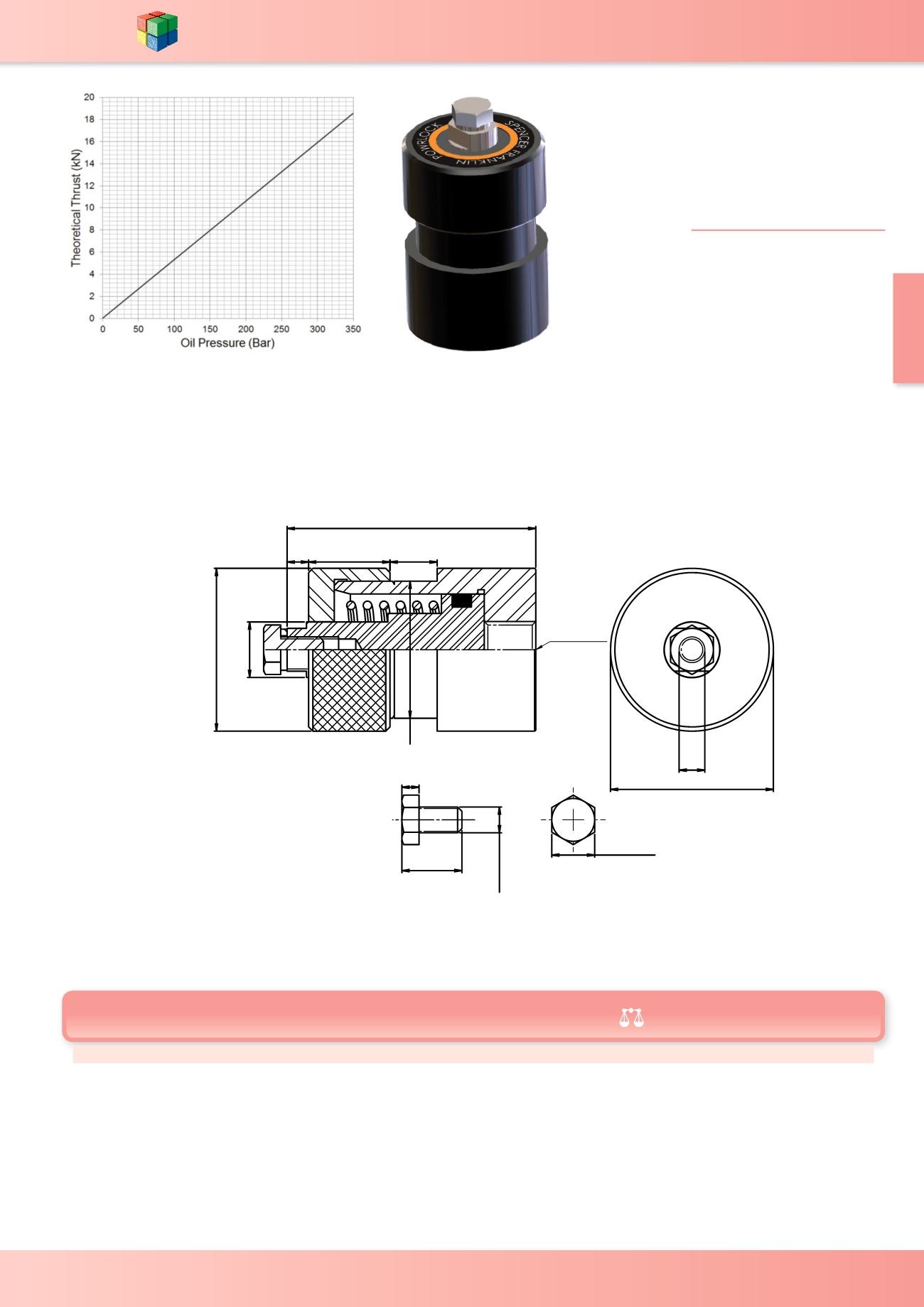

www.wdsltd.co.ukPowRlock Mini Ram
Head
SF-5000A-
5100A
A
J
E
H
B
19 G
D
C
1/4" B.S.P.
10 A/F
14
M6 x 1
4
5000A
Stroke*
mm
Effective
Area cm ²
Swept
Volume cm³
Dimensions in mm
(kg)
WDS No.
Seal Kit No.
A B C D E F G H J
12.5 5.31
6.64 38 13 38 32 58 13 5 11 M6x1 0.36 SF-5000A SF-5099
25
5.31
13.28 38 13 38 32 83 13 5 36 M6x1 0.45 SF-5100A SF-5099
Body/Cap Thread M32 x 1.5
* Do not exceed Maximum Stroke
NOTE: All graphs are Rams with Springs fitted.
Graphs are calculated using theoretical pressures and
actual values will be less due to loss in system pressure.
TECHNICAL INFORMATION
-
Max Operating Pressure =
350 BAR (5000 P.S.I)
T
heoretical Thrust (N) =
Oil Pressure (bar) x Effective Area (cm²)
Re
fer to page 21-46 & 21-47 for
more technical information
