SECTION 21 - SPENCER FRANKLIN HYDRACLAMP, HYDRAULICS
AND PNEUMATICS WDS
WDS
21-23 & 0845 606 66 77 • : • *

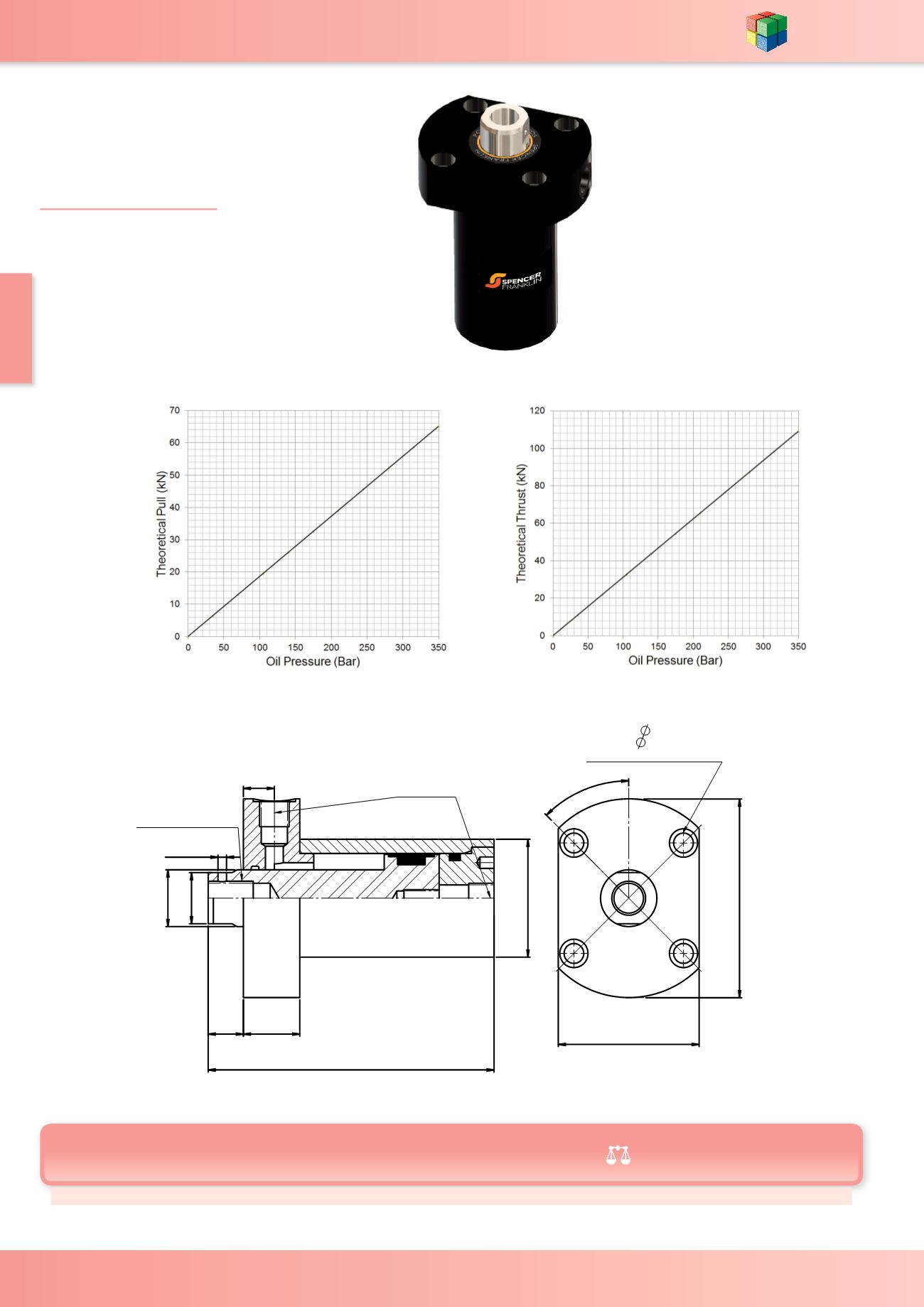

PowRlock Double
Acting Piercing
Head
SF-6920A
45°
100 A/F
140
4 HOLES 14 THRO'
C/BORE 20 x 13 DEEP
ON 110 P.C.D.
40
83
203 CLOSED LENGTH
25
36 A/F 40
M6 x 1
22
1/2" B.S.P.
M24 x 3 x 32 DEEP
6920A
Stroke*
Effective Area Swept Volume
Max Operating
Pressure bar (kg) WDS No. Seal Kit No. Full Bore
Side cm²
Annulus Side
cm²
Full Bore Side
cm³ Annulus Side cm³
50 31.17 18.61 155.85 93.05 350 8.2 SF-6920A SF-4394
Body/Cap Thread M32 x 1.5
* Do not exceed Maximum Stroke
Graphs are calculated using theoretical pressures and
actual values will be less due to loss in system pressure.
TECHNICAL INFORMATION -
Max Operating Pressure =
350 BAR (5000 P.S.I)
Theoretical Thrust (N) =
Oil Pressure (bar) x Effective Area (Full
Bore Side) (cm²)
Theoretical Pull (N) =
Oil Pressure (bar) x Effective Area
(Annulus Side) (cm²)
Refer to page 21-46 & 21-47 for
more technical information
