SECTION 26 - NUTS, WASHERS, SCREWS & STUDS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk26-16
WDS

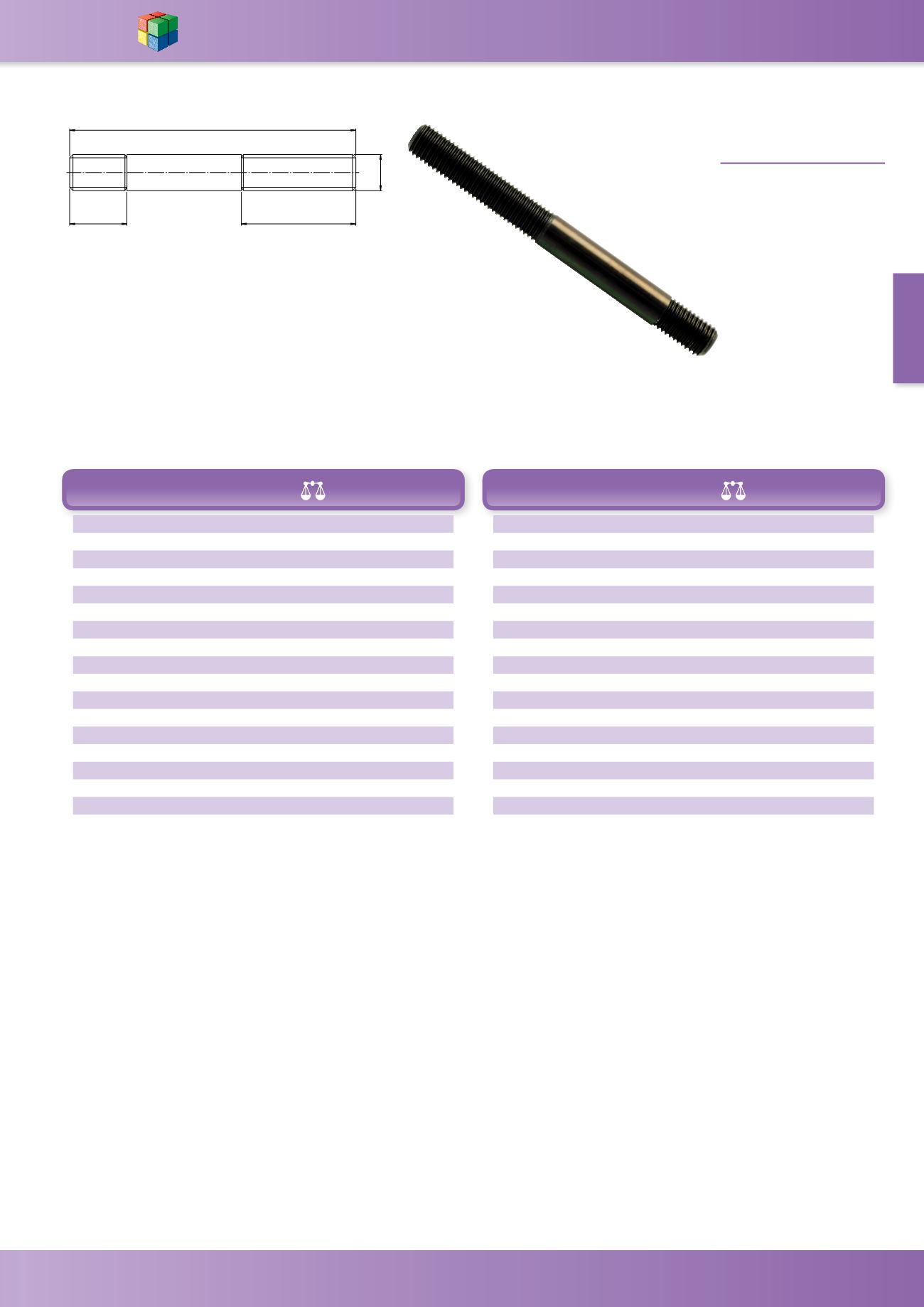

www.wdsltd.co.ukStud - Metric
WDS 405
MATERIAL
-
High tensile steel
BS.970 Gr.606M36T *BS.970
080M40
Chemical black finish
Class of fit 4H 8G
Class of fit L1 = 8G L2 = 4H
See 801 Series for this part in
Stainless Steel
D
L
L1 L2
(g)
WDS No.
M4*
25 13 7
3
405-200425
M4*
30 13 7
3
405-200430
M4*
40 20 7
6
405-200440
M4*
45 20 7
6
405-200445
M4*
50 20 7
7
405-200450
M5*
25 12 8
3
405-200525
M5*
30 13 8
5
405-200530
M5*
35 13 8
5
405-200535
M5*
40 20 8
5
405-200540
M5*
50 20 8
5
405-200550
M6*
25 11 9
4
405-20125
M6*
30 13 10
5
405-20130
M6*
35 13 10
5
405-20135
M6*
40 25 10
7
405-20140
M6*
45 25 10
9
405-20145
M6*
50 25 10
10 405-20150
M6*
60 25 10
12 405-20160
Metric
D
L
L1 L2
(g)
WDS No.
M6*
70 25 10
15 405-20170
M6*
80 40 10
16 405-20180
M6*
90 40 10
17 405-20190
M6*
100 40 10
20 405-201100
M6*
125 40 10
25 405-201125
M6*
150 40 10
30 405-201150
M8 40 24 13
11 405-20240
M8 50 30 13
16 405-20250
M8 60 30 13
20 405-20260
M8 70 30 13
24 405-20270
M8 80 40 13
28 405-20280
M8 90 40 13
30 405-20290
M8 100 40 13
35 405-202100
M8 125 40 13
45 405-202125
M8 150 40 13
55 405-202150
M8 175 40 13
65 405-202175
M8 200 40 13
75 405-202200
Metric
L1
L2
L
D
Class - 4H
Class - 8G
