0$/( :$6+(5
' 678' 6,=(

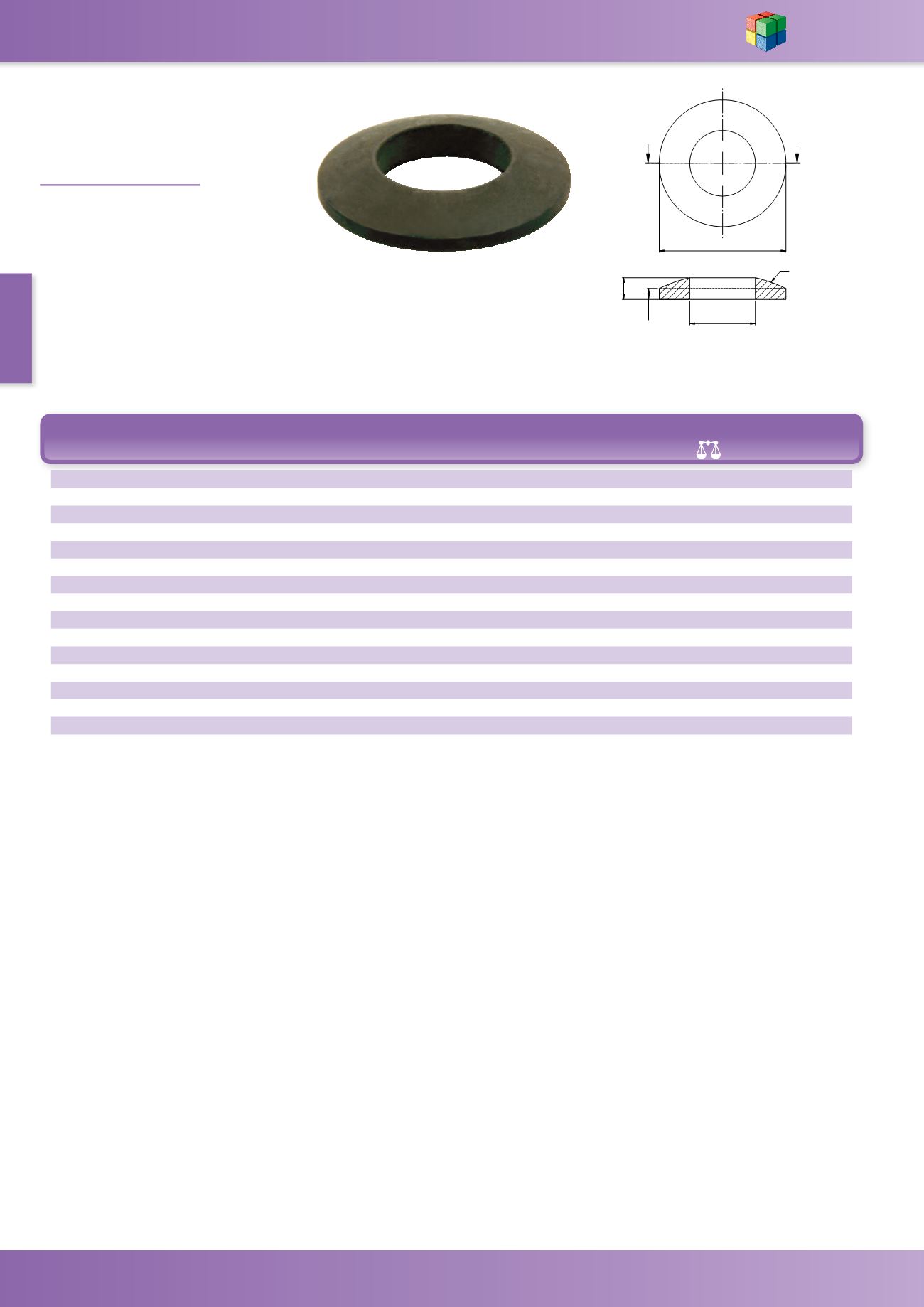

WDS 401
MATERIAL
-
Steel, BS.970 Gr.220M07
Surface hardened
Chemical black finish
See 803 Series for this part in
Stainless Steel
D
D1
D2
H
H1
R
(g)
WDS No.
Metric
Inch
M4
2BA
12
5.5
2.6
1.4
13
2
401-2004M
M5
-
12
6.5
2.8
1.7
13
2
401-2005M
M6
1
⁄
4
16
8
3.2
1.6
16
3
401-201M
M8
5
⁄
16
19
10
4
2.1
19
3
401-202M
M10
3
⁄
8
22
12
4.4
2.6
25
5
401-203M
M12
1
⁄
2
28
14.5
4.8
2.4
32
9
401-204M
M14
-
32
16.5
5
2.1
35
10
401-205M
M16
5
⁄
8
35
18.5
5.2
2.3
40
20
401-206M
M18
-
38
20.5
5.5
2.7
48
25
401-2065M
M20
3
⁄
4
40
22.5
6
3
48
30
401-207M
M22
7
⁄
8
48
25.5
6.4
2.5
57
50
401-208M
M24
1
53
28.5
7.6
3.5
64
70
401-209M
M30
-
63
33
8
2.5
70
95
401-2105M
M33
1
1
⁄
4
67
35.5
8.4
3
80
110
401-211M
M39
1
1
⁄
2
80
42
9.2
2.7
95
170
401-212M
Male Washer
Spherical Seating
Washer Male
