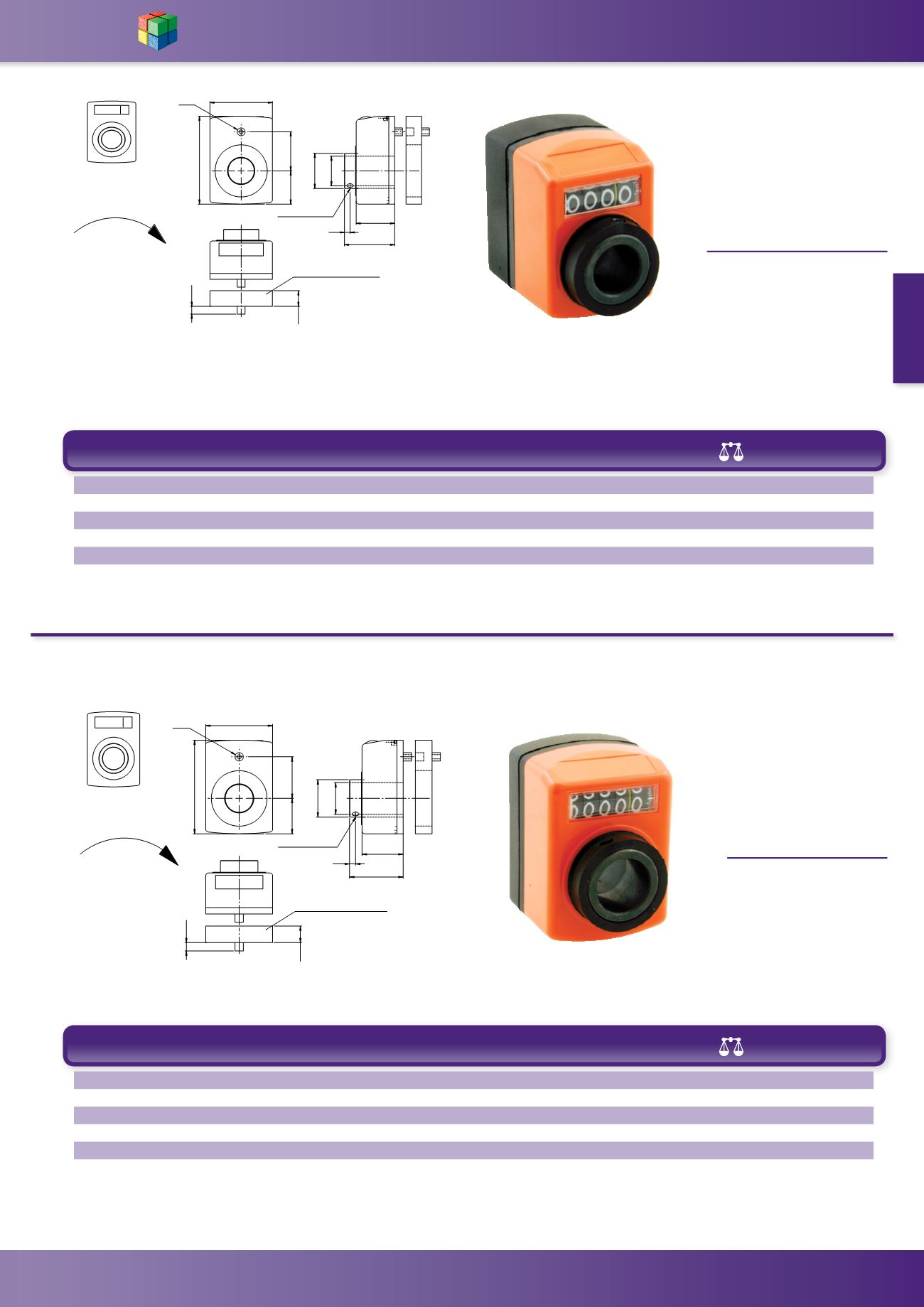

Position Indicator
Horizontal
Clockwise
Top Display
14mm Bore
WDS 494
MATERIAL -
Housing - Polyamide 6,
Shockproof
Drive Shaft - Chemically
Blacked Mild Steel
4 Digit Display
Supplied with 15mm thick
optional spacer
D D1 D2 H H1 H2 H3 L L1 L2 L3 M W Pitch mm (g) WDS No.
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 1 87 494-143010C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 2 87 494-143020C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 2.5 87 494-143025C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 3 87 494-143030C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 4 87 494-143040C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 5 87 494-143050C
:
/
'
/
/
+
+
/
' '
*UXEVFUHZ 0
+
+
63$&(5 6833/,('
7RS 'LVSOD\
6+$)7 5(92/9(6
&/2&.:,6(
9,(:(' 21 723
',63/$< ,1&5($6(6
Position Indicator
Horizontal
Clockwise
Top Display
20mm Bore
MATERIAL -
Housing - Polyamide 6,
Shockproof
Drive Shaft - Chemically
Blacked Mild Steel
5 Digit Display
Supplied with 12mm thick
optional spacer
D D1 D2 H H1 H2 H3 L L1 L2 L3 M W Pitch mm (g) WDS No.
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 1 87 494-203010C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 2 87 494-203020C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 2.5 87 494-203025C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 3 87 494-203030C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 4 87 494-203040C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 5 87 494-203050C
WDS 494
:
/
'
/
/
+
+
/
' '
*UXEVFUHZ 0
+
+
63$&(5 6833/,('
6+$)7 5(92/9(6
&/2&.:,6(
9,(:(' 21 723
',63/$< ,1&5($6(6
7RS 'LVSOD\
