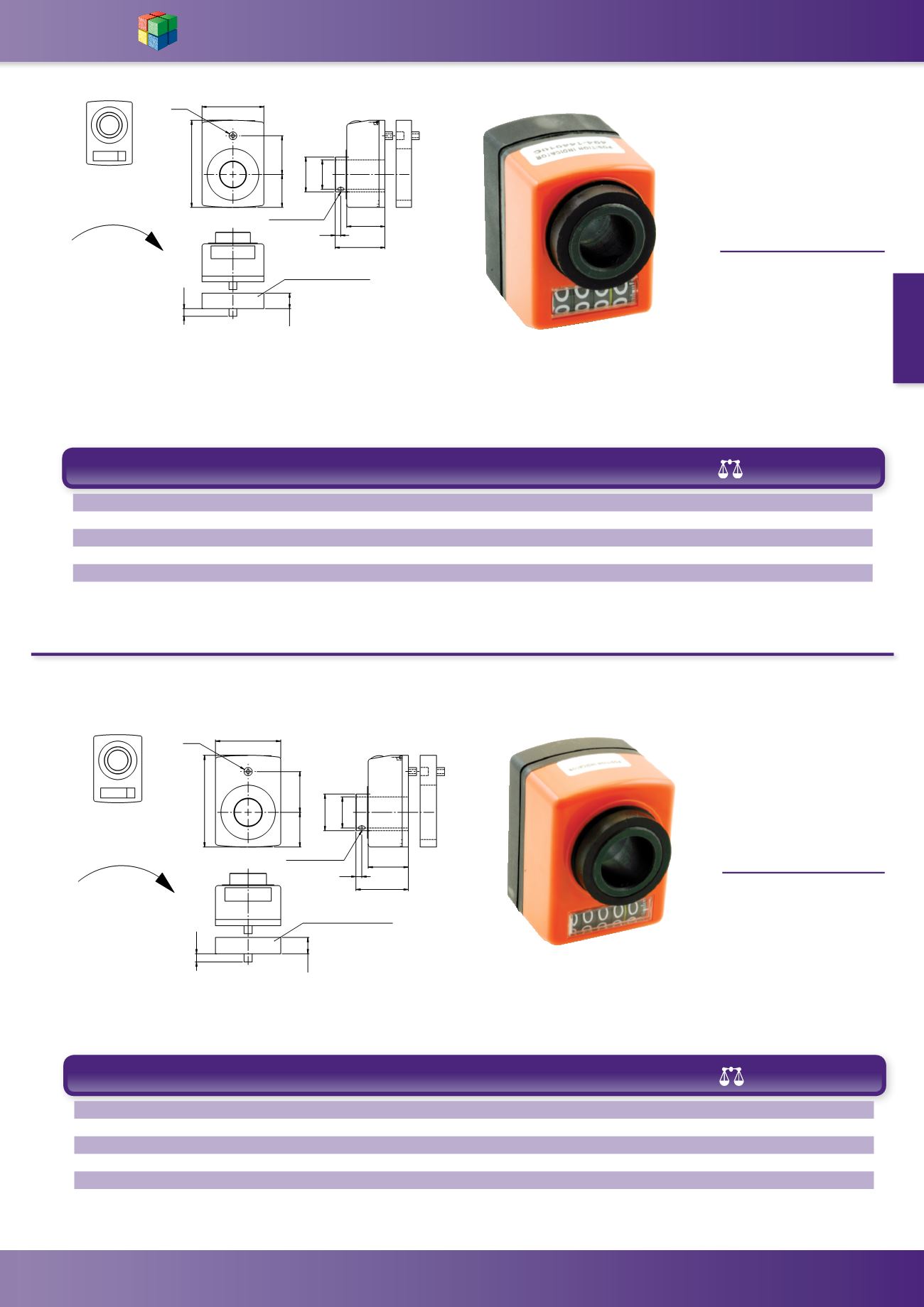

Position Indicator
Horizontal
Clockwise
Bottom Display
14mm Bore
WDS 494
MATERIAL -
Housing - Polyamide 6,
Shockproof
Drive Shaft - Chemically Blacked
Mild Steel
4 Digit Display
Supplied with 15mm thick
optional spacer
D D1 D2 H H1 H2 H3 L L1 L2 L3 M W Pitch mm (g) WDS No.
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 1 87 494-144010C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 2 87 494-144020C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 2.5 87 494-144025C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 3 87 494-144030C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 4 87 494-144040C
14 19.7 6 31 24 5 15 47 16.5 22 3.5 M4 33 5 87 494-144050C
:
/
'
/
/
+
+
/
' '
*UXEVFUHZ 0
%RWWRP 'LVSOD\
+
+
63$&(5 6833/,('
6+$)7 5(92/9(6
&/2&.:,6(
9,(:(' 21 %27720
',63/$< ,1&5($6(6
Position Indicator
Horizontal
Clockwise
Bottom Display
20mm Bore
WDS 494
MATERIAL -
Housing - Polyamide 6,
Shockproof
Drive Shaft - Chemically Blacked
Mild Steel
5 Digit Display
Supplied with 12mm thick
optional spacer
D D1 D2 H H1 H2 H3 L L1 L2 L3 M W Pitch mm (g) WDS No.
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 1 87 494-204010C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 2 87 494-204020C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 2.5 87 494-204025C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 3 87 494-204030C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 4 87 494-204040C
20 27 6 38.5 30 6 12 67.5 25.5 30 4.3 M5 48 5 87 494-204050C
:
/
'
/
/
+
+
/
' '
*UXEVFUHZ 0
%RWWRP 'LVSOD\
+
+
63$&(5 6833/,('
6+$)7 5(92/9(6
&/2&.:,6(
9,(:(' 21 %27720
',63/$< ,1&5($6(6
