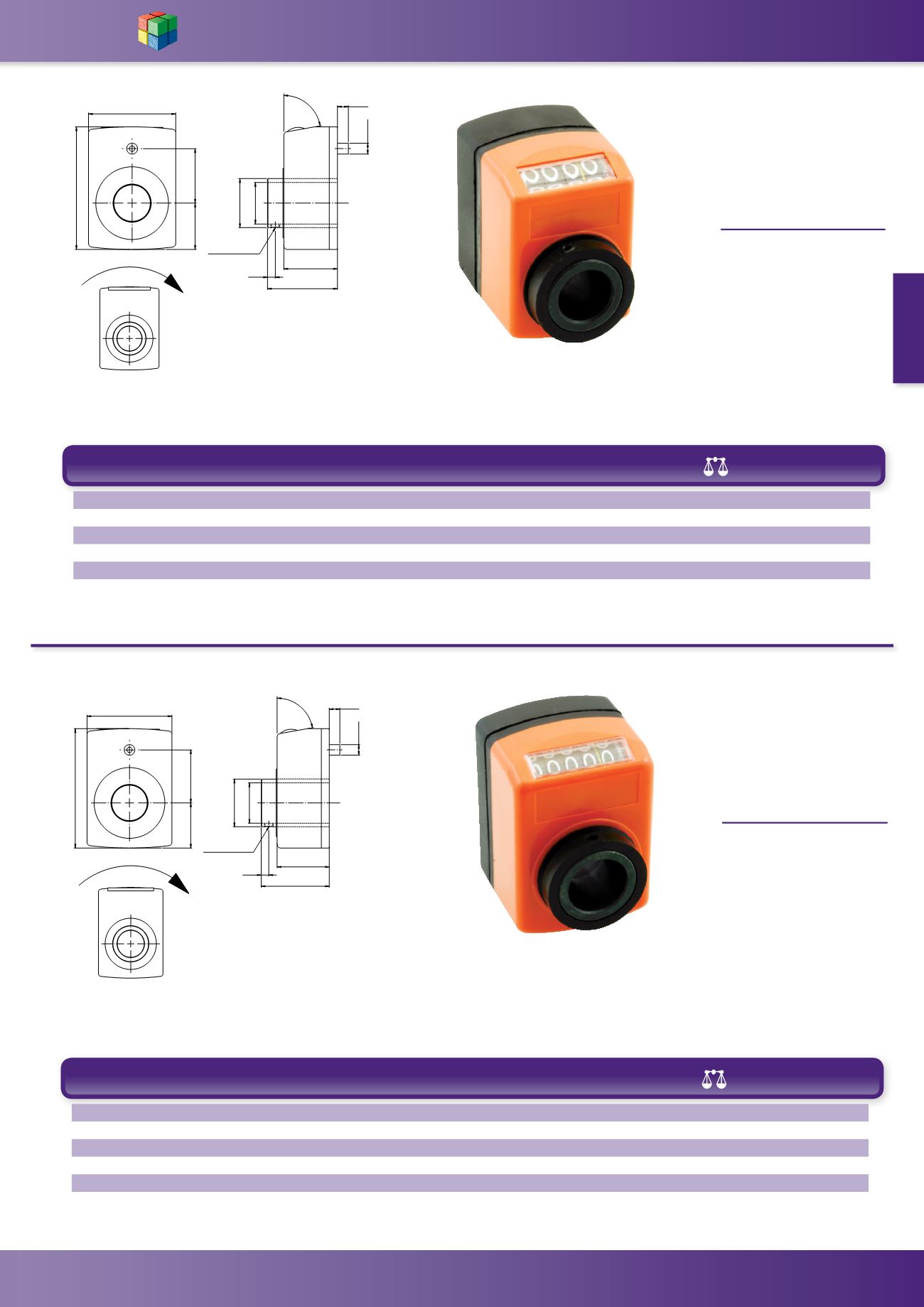

SECTION 2 - LOCATION & POSITIONING WDS
& 0845 606 66 77 • : • * 2-64
WDS
Position Indicator
Horizontal
Clockwise
14mm Bore
WDS 494
MATERIAL -
Housing - Polyamide 6,
Shockproof
Drive Shaft - Chemically Blacked
Mild Steel
4 Digit Display
Supplied with 15mm thick
optional spacer
D D1 D2 H H1 H2 L L1 L2 L3 M W Pitch mm (g) WDS No.
14 19.7 6 31 24 5 47 16.5 22 3.5 M4 33 1 45 494-141010C
14 19.7 6 31 24 5 47 16.5 22 3.5 M4 33 2 45 494-141020C
14 19.7 6 31 24 5 47 16.5 22 3.5 M4 33 2.5 45 494-141025C
14 19.7 6 31 24 5 47 16.5 22 3.5 M4 33 3 45 494-141030C
14 19.7 6 31 24 5 47 16.5 22 3.5 M4 33 4 45 494-141040C
14 19.7 6 31 24 5 47 16.5 22 3.5 M4 33 5 45 494-141050C
:
/
/
/
'
+
+
+
/
' '
r
*UXEVFUHZ 0
&/2&.:,6(
9,(:(' 21 )5217
6+$)7 5(92/9(6
Clockwise viewed on front
display increases
Position Indicator
Horizontal
Clockwise
20mm Bore
WDS 494
MATERIAL -
Housing - Polyamide 6,
Shockproof
Drive Shaft - Chemically Blacked
Mild Steel
5 Digit Display
Supplied with 12mm thick
optional spacer
D D1 D2 H H1 H2 L L1 L2 L3 M W Pitch mm (g) WDS No.
20 27 6 38.5 30 6 67.5 25.5 30 4.3 M5 48 1 87 494-201010C
20 27 6 38.5 30 6 67.5 25.5 30 4.3 M5 48 2 87 494-201020C
20 27 6 38.5 30 6 67.5 25.5 30 4.3 M5 48 2.5 87 494-201025C
20 27 6 38.5 30 6 67.5 25.5 30 4.3 M5 48 3 87 494-201030C
20 27 6 38.5 30 6 67.5 25.5 30 4.3 M5 48 4 87 494-201040C
20 27 6 38.5 30 6 67.5 25.5 30 4.3 M5 48 5 87 494-201050C
:
/
/
/
'
+
+
+
/
' '
r
*UXEVFUHZ 0
&/2&.:,6(
9,(:(' 21 )5217
6+$)7 5(92/9(6
Clockwise viewed on front
display increases
