SECTION 2 - LOCATION & POSITIONING WDS
& 0845 606 66 77 • : • * 2-62
WDS

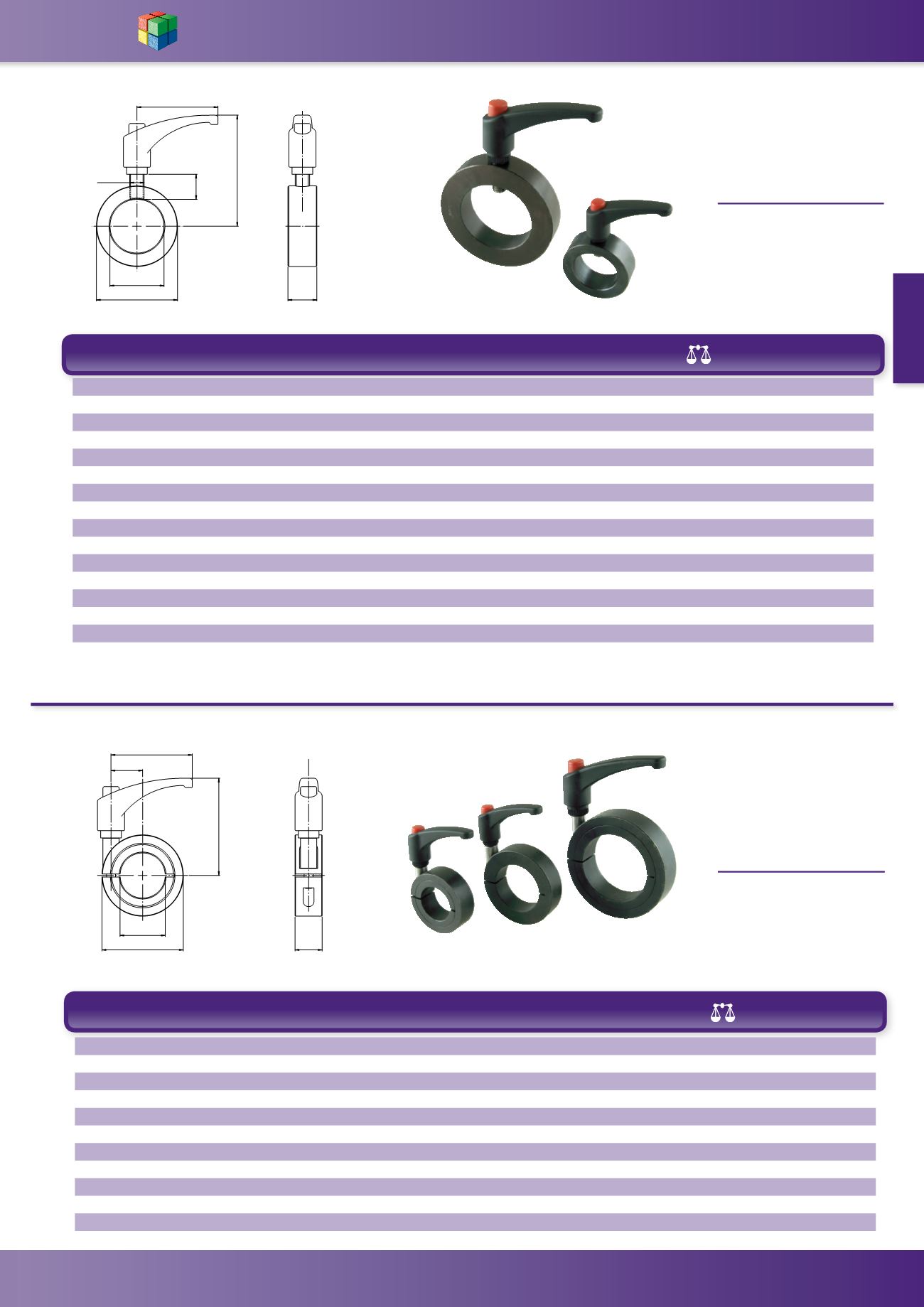

Quick Release
Shaft Collar with
Indexing Lever
WDS 650
MATERIAL -
Collar - Steel - Black Oxide Finish
Handle Plastic-PA6
Locking Screw - Stainless Steel
(A2)
D
D1
H
L
D2
T
BJS14
D D1 D2 B H L T (g) WDS No.
10 20 M5 10 45 45 7 33 650-107A
11 20 M5 10 45 45 7 32 650-108A
12 22 M6 12 46 45 7 40 650-109A
14 25 M6 12 47 45 7 47 650-110A
16 25 M6 12 48 45 7 45 650-111A
16 28 M6 12 52 45 11 54 650-113A
20 32 M6 14 54 45 11 69 650-115A
22 36 M6 14 55 45 11 87 650-117A
25 40 M8 16 60 45 14 114 650-121A
28 45 M8 16 61 45 14 139 650-122A
30 45 M8 16 62 45 14 129 650-123A
35 56 M8 16 78 65 18 223 650-127A
36 56 M8 16 79 65 18 218 650-128A
40 63 M10 18 84 65 21 303 650-131A
45 70 M10 18 87 45 21 322 650-133A
50 80 M10 18 92 65 24 474 650-135A
Quick Release
Split Shaft Collar
with Indexing
Lever
WDS 650
MATERIAL -
Collar - Steel - Black Oxide Finish
Handle Plastic - PA6
Locking Screw - Stainless Steel
(A2)
D D1 D2 B H L1 L2 (g) WDS No.
10 24 M3 9 46 8.5 45 44 650-310A
12 28 M4 11 48 10 45 64 650-312A
15 34 M5 13 51 12.25 45 102 650-315A
16 34 M5 13 51 12.5 45 100 650-316A
20 40 M5 15 53 15 45 140 650-320A
22 42 M5 15 53 16 45 147 650-322A
25 45 M5 15 54 17.5 45 159 650-325A
30 54 M6 15 58 21 45 225 650-330A
35 57 M6 15 59 23 45 236 650-335A
40 60 M6 15 60 25 45 235 650-340A
50 78 M6 19 76 32 65 477 650-350A
D
D1
H
L1
L
BJS14
