SECTION 2 - LOCATION & POSITIONING WDS
WDS
2-61 & 0845 606 66 77 • : • *

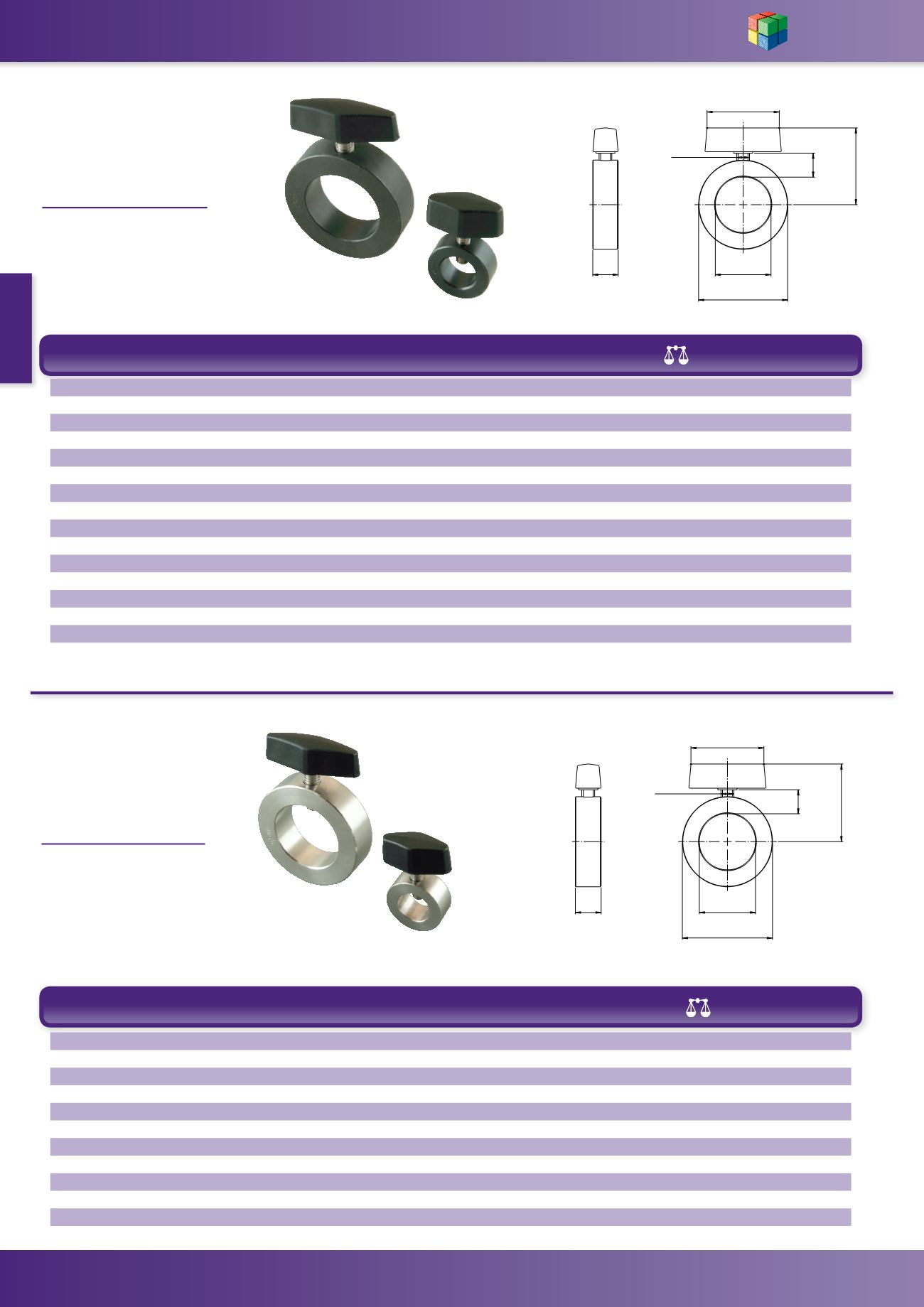

Quick Release
Shaft Collar with
Wing Screw
WDS 650
MATERIAL -
Collar - Steel - Black Oxide Finish
Handle Plastic-PA6 with Brass
Insert
Locking Screw - Stainless Steel
(A2)
D
D1
H T
D2
L
BJS14
D D1 D2 B H L T (g) WDS No.
10 20 M5 10 31 32 10 27 650-107B
11 20 M5 10 31 32 11 26 650-108B
12 22 M6 12 32 32 10 36 650-109B
14 25 M6 12 32 32 11 40 650-110B
16 25 M6 12 33 32 10 41 650-111B
16 28 M6 12 34 32 10 50 650-113B
20 32 M6 14 36 32 10 70 650-115B
22 36 M6 14 41 32 14 87 650-117B
25 40 M8 16 43 48 15 119 650-121B
28 45 M8 16 45 48 16 129 650-122B
30 45 M8 16 46 48 15 134 650-123B
35 56 M8 16 48 48 15 214 650-127B
36 56 M8 16 49 48 16 209 650-128B
40 63 M10 18 59 48 23 300 650-131B
45 70 M10 18 62 48 23 344 650-133B
50 80 M10 18 67 48 26 474 650-135B
Stainless Steel
Shaft Collar with
Wing Screw
WDS 827
MATERIAL -
Collar - 304 Stainless Steel -
Natural finish
Handle Plastic-PA6
Locking Screw - Stainless Steel
(A2)
D D1 D2 B H L T (g) WDS No.
10 20 M5 10 17 35 9 27 827-107B
12 22 M6 12 17 35 10 36 827-109B
16 25 M6 12 17 35 10 41 827-111B
16 28 M6 12 17 35 10 50 827-113B
20 32 M6 14 24 50 13 70 827-115B
22 36 M6 14 24 50 13 87 827-117B
25 40 M8 16 24 50 14 119 827-121B
30 45 M8 16 24 50 14 134 827-123B
35 56 M8 16 24 50 19 214 827-127B
40 63 M10 18 34 70 20 300 827-131B
50 80 M10 18 34 70 25 474 827-135B
D
D1
H T
D2
L
BJS14
