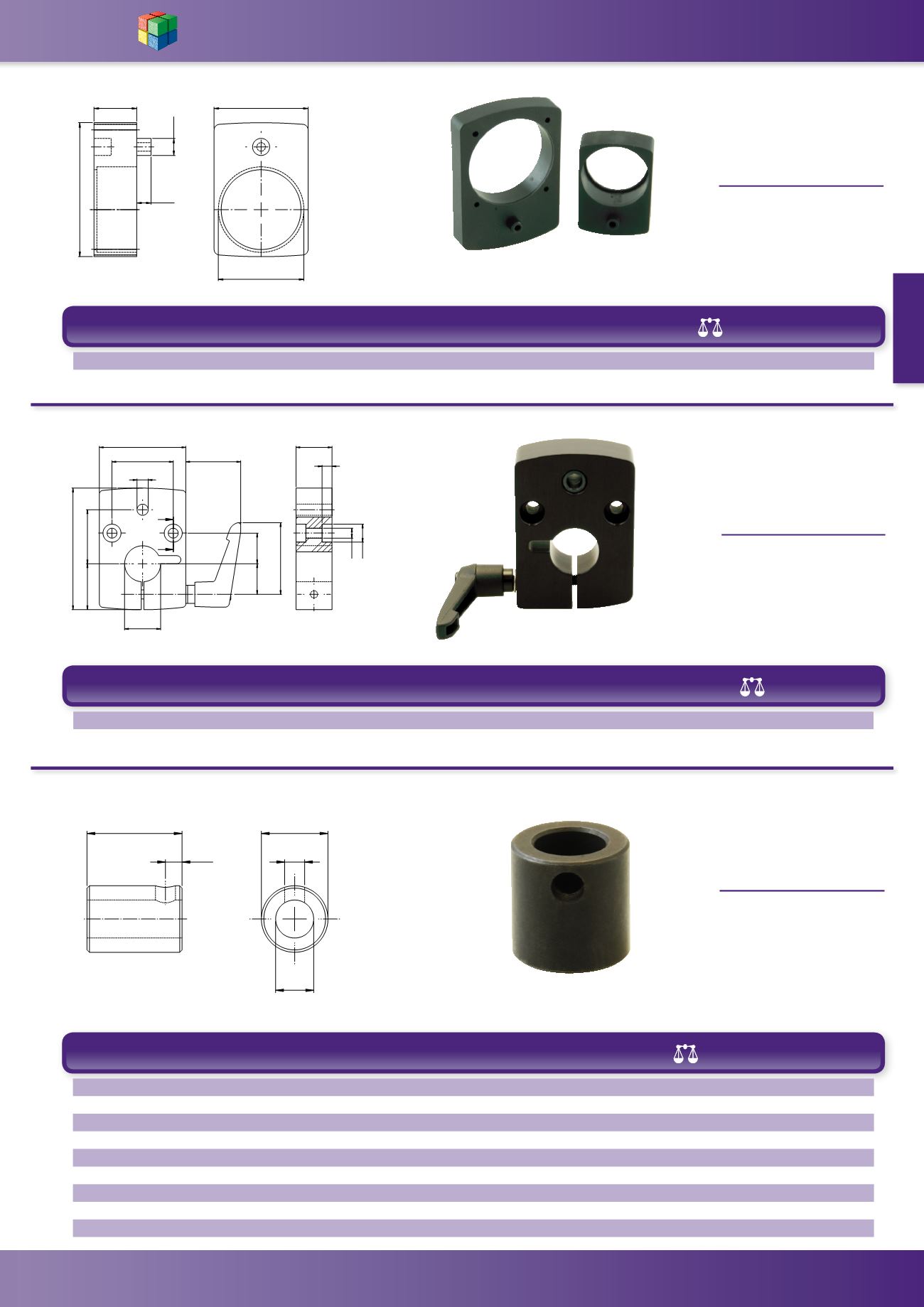

Position Indicator
Mounting Block
WDS 496
MATERIAL -
Body - Aluminium, Anodized
Clamping Lever - Plastic,
indexing
D D1 D2 D3 H H1 H2 L L1 L2 L3 L4 L5 C W (g) WDS No.
14 6.2 4.5 8 15 4.6 30 47 16.5 22 11 23.5 40 21 33 69 496-14P
20 6.2 5.5 10 20 5.5 30 67.5 25.5 30 17 17 40 34 48 166 496-20P
&
:
+
'
/
/
/ /
'
/
/
'
+
'
+
Position Indicator
Mounting Bracket
WDS 496
MATERIAL -
Body - Plastic
H
L H1
D1
W
D
D D1 H H1 L W (g) WDS No.
28 6 15 5 47 33 5 496-214P
40 6 12 6 67.5 48 10 496-220P
Position Indicator
Reducing Sleeve
WDS 497
MATERIAL -
Body - Aluminium, Anodized
Clamping Lever - Plastic,
indexing
C
D
A
B
E
A B C D E (g) WDS No.
14 6 20 3.5 4.2 19 497-206
14 8 20 3.5 4.2 35 497-208
14 10 20 3.5 4.2 35 497-210
14 12 20 3.5 4.2 35 497-212
20 12 20 4 5.3 35 497-312
20 14 20 4 5.3 35 497-314
20 15 20 4 5.3 35 497-315
20 16 20 4 5.3 35 497-316
20 18 20 4 5.3 35 497-318
