SECTION 3 - HAND LEVERS WDS
& 0845 606 66 77 • : • * 3-2
WDS
r
'
+
'
7
'
/
%

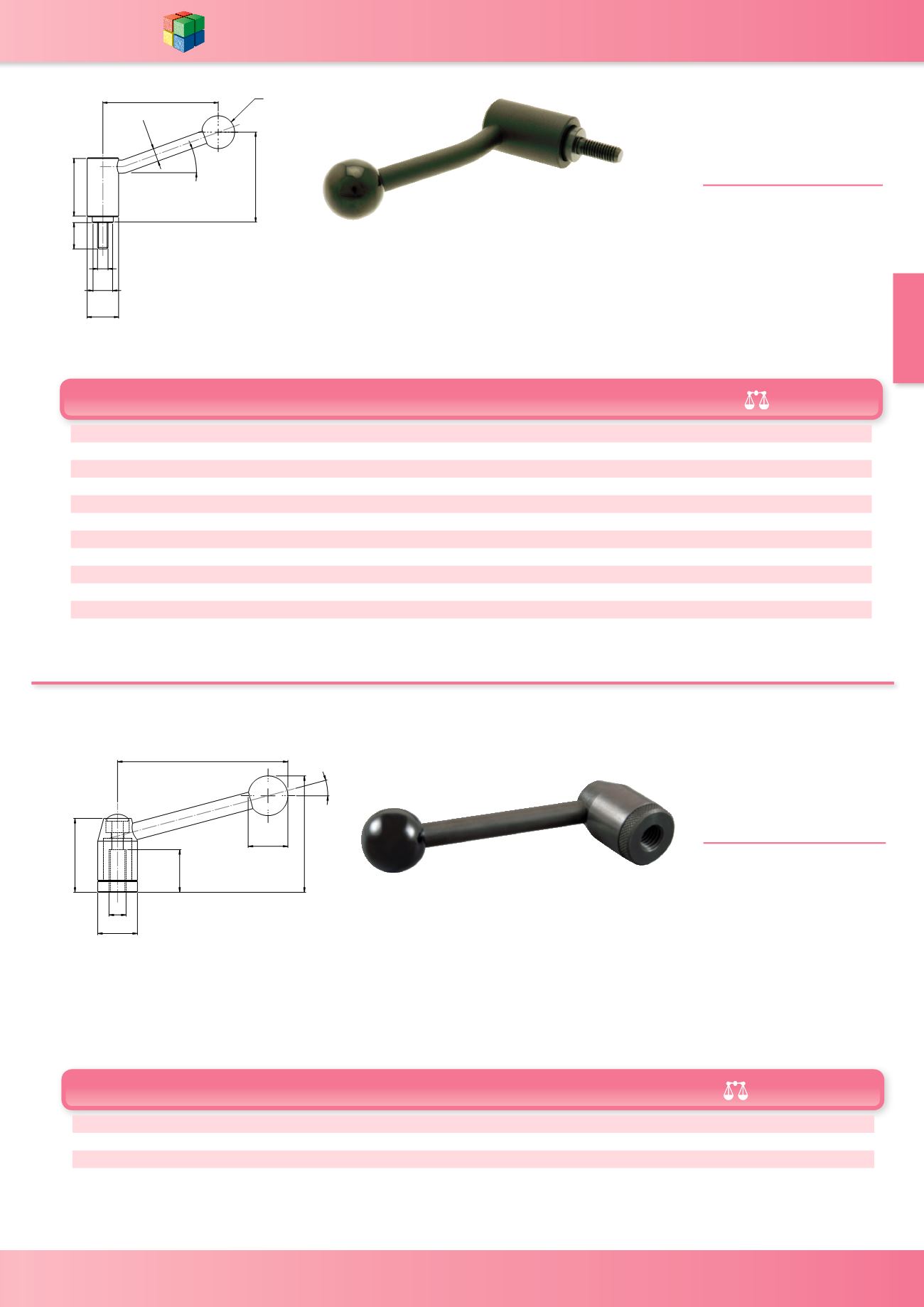

Clamping Lever -
Indexing
WDS 8196
MATERIAL -
Steel Chemical black finish
Black plastic ball knob
Indexing Lever
with Ball Knob
WDS 8232
MATERIAL -
Body - Steel
Knob - Bakelite
After securely tightening in position,
the handle is lifted against the
spring pressure and indexed to a
suitable parking position and
re-engaged with the splined nut
'
/
/
+
'
'
+
'
r
/,)7 +$1'/( 72 ,1'(;
'
1 1R 2) ,1'(; 326,7,216
D D1 D2 D3 D4 H H1 H2 L L1 N (g) WDS No.
M8 24 16 25 10 68.5 49.5 4.5 88 20 28 115 8196-221
M8 24 16 25 10 68.5 49.5 4.5 88 30 28 121 8196-222
M8 24 16 25 10 68.5 49.5 4.5 88 40 28 125 8196-223
M8 24 16 25 10 68.5 49.5 4.5 88 50 28 128 8196-224
M10 28 19 32 12 68.5 51.5 5.5 111 20 30 188 8196-225
M10 28 19 32 12 68.5 51.5 5.5 111 30 30 195 8196-226
M10 28 19 32 12 68.5 51.5 5.5 111 40 30 199 8196-227
M12 33 23 32 13 81 58 6.0 135 20 35 280 8196-230
M12 33 23 32 13 81 58 6.0 135 30 35 295 8196-231
M12 33 23 32 13 81 58 6.0 135 40 35 302 8196-232
M12 33 23 32 13 81 58 6.0 135 60 35 320 8196-234
D D1 D3 B L H T N (g) WDS No.
M6 14 14 41 60 26 15 16 42 8232-201
M8 18 18 49 70 31.5 20 24 74 8232-202
M10 22 18 53 77 31.5 20 24 100 8232-203
M12 28 28 72 108 43 25 26 225 8232-204
After securely tightening in position,
the handle is lifted against the
spring pressure and indexed to a
suitable parking position and
re-engaged with the splined nut
N = No. of Index Positions
