SECTION 3 - HAND LEVERS WDS
WDS
3-3 & 0845 606 66 77 • : • *
'
'
'
7 +
+
/
+
r
'
'
1 1R 2) ,1'(; 326,7,216
3XVK KDQGOH GRZQ WR RSHUDWH
'
/
+
+
'
/
'
'
r
+
3UHVV KDQGOH GRZQ WR RSHUDWH
'
1 1R 2) ,1'(; 326,7,216

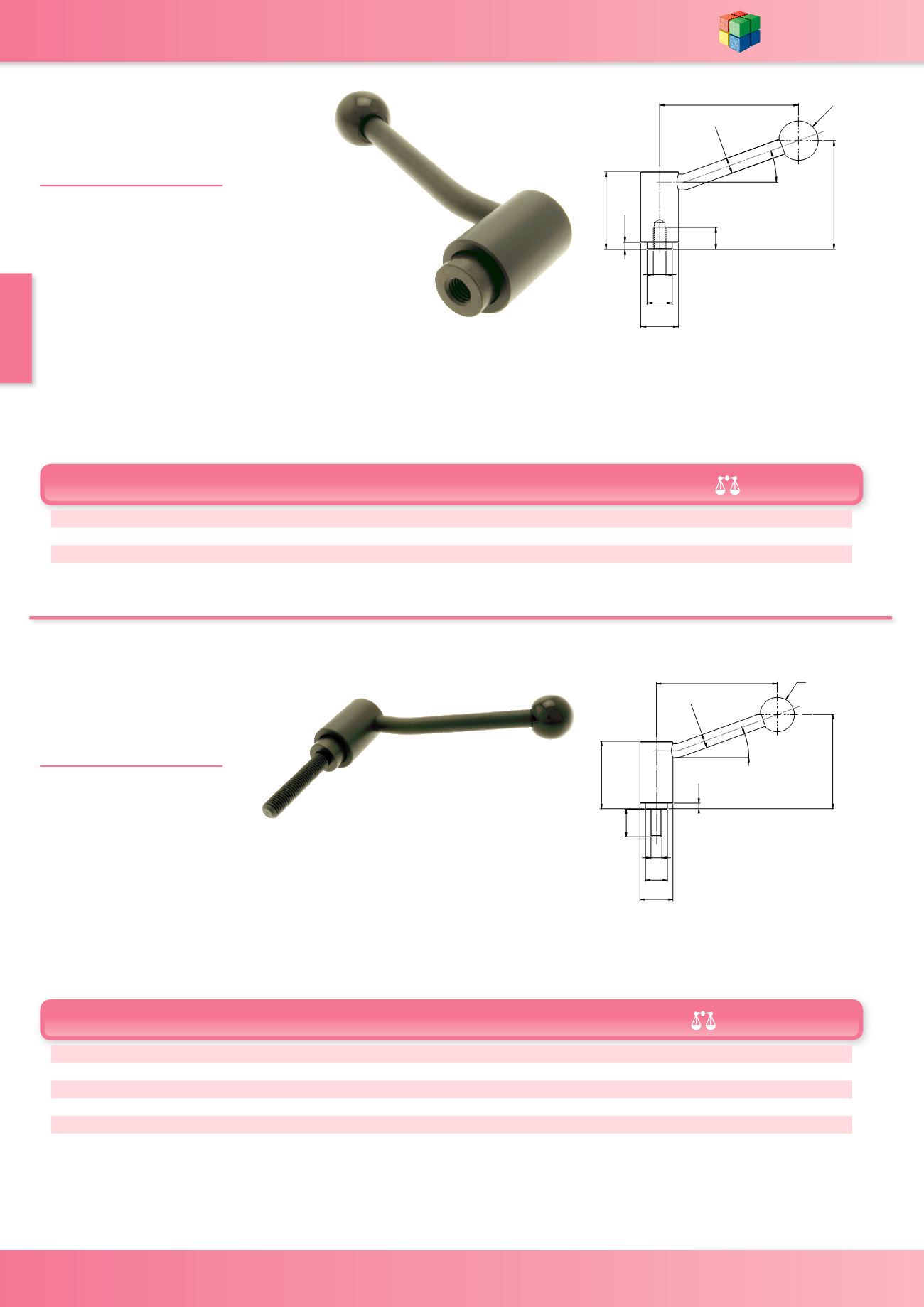

Safety Clamping
Indexing Lever
Safety Clamping
Lever
WDS 8197
WDS 8197
MATERIAL -
Steel Chemical black finish
Black plastic ball knob
MATERIAL -
Steel Chemical black finish
Black plastic ball knob
D D1 D2 D3 D4 H H1 H2 L T N (g) WDS No.
M8 24 16 25 10 63.5 49 9 88 14 22 120 8197-211
M10 28 19 32 12 74 57 11 106 17 24 200 8197-212
M12 33 23 32 13 87.5 64 12 128.5 23 26 280 8197-213
To operate the safety clamping lever,
press the handle down against
the spring until the teeth are fully
engaged and tighten as required
On release of the downward
pressure the handle returns to its
original position and turns freely
For all other dimensions refer to corresponding female version above
D L1 D1 D2 D3 D4 H H1 H2 L T N (g) WDS No.
M8 40 24 17 25 10 69 49 9 88 23 22 140 8197-223
M8 60 24 17 25 10 69 49 9 88 23 22 160 8197-225
M10 40 28 20 30 11 82 57 11 106 26 24 215 8197-228
M10 50 28 20 30 11 82 57 11 106 26 24 220 8197-229
M12 50 33 24 32 12 94 64 12 128.5 30 26 335 8197-234
M12 60 33 24 32 12 94 64 12 128.5 30 26 350 8197-235
To operate the safety clamping lever,
press the handle down against
the spring until the teeth are fully
engaged and tighten as required
On release of the downward
pressure the handle returns to its
original position and turns freely
