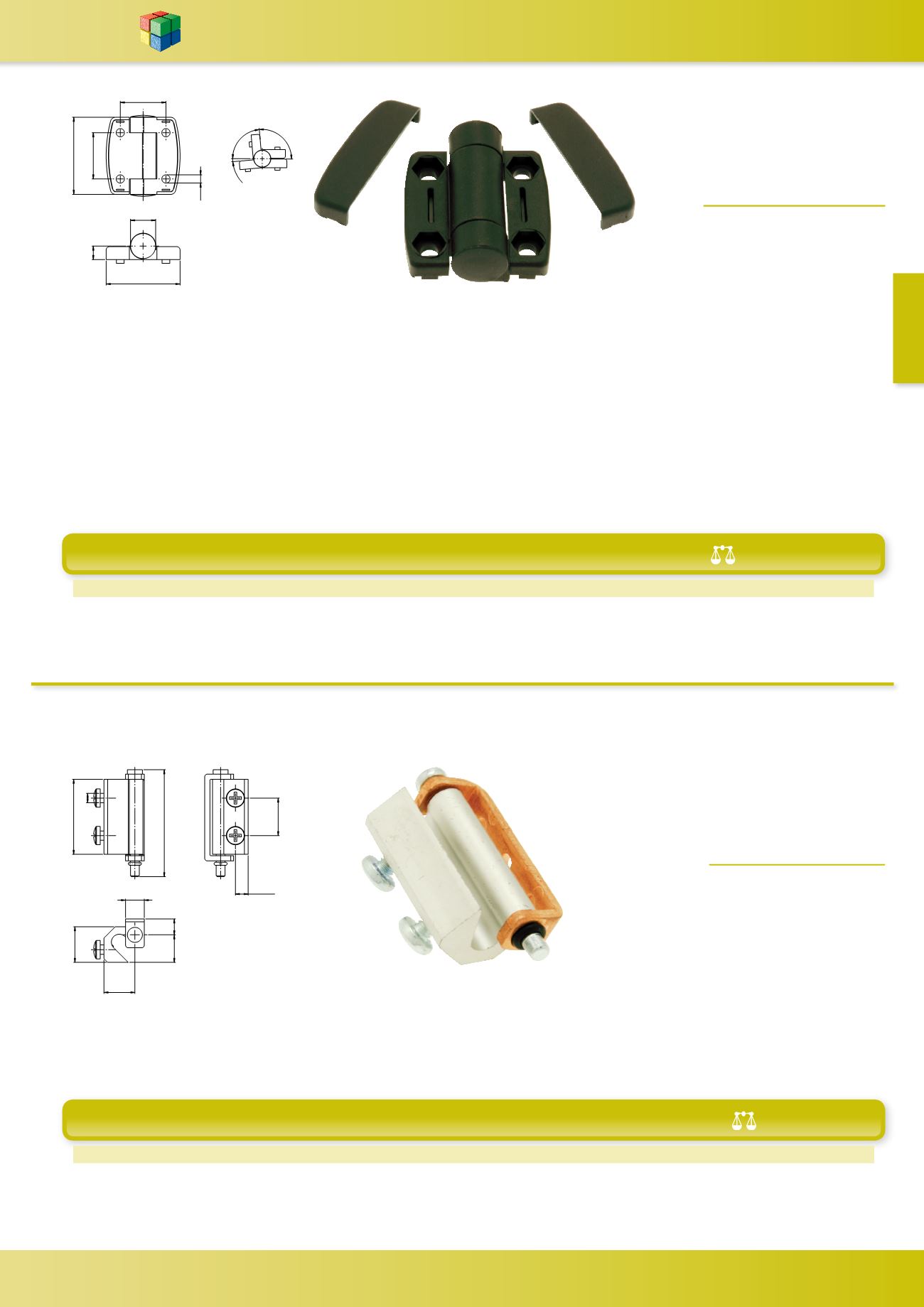

www.wdsltd.co.ukHinge - Detent
- Surface Mount -
Polyamide
WDS 8637
MATERIAL
-
Housing - Black glass reinforced
polyamide
Secure from front using M6 Screws,
from behind using Hexagon Nuts
and Screws
A door or lid fitted with these will
hold open in either an open or
closed position
Alternatively hold open at an
angle of 85° or 175° by a detent
mechanism
Detent Hinge with cover caps
L
A
C
C1
D1
E
H
Fa
Fr
(g)
WDS No.
60
57.5
36
35.5
6.4
20
10.5
35
40
80
8637-201
60
77.5
36
45.5
6.4
20
10.5
43
61
85
8637-203
$
(
+
&
/
&
'
r
r
r
)D 0D[ /RDG $[LDO NJ
)U 0D[ /RDG 5DGLDO NJ
Please refer to page 9-28, for full
Technical Information on Fa and Fr
dimensions
Hinge - Concealed -
Aluminium
WDS 8641
MATERIAL
-
Frame Part - Aluminium
Door Part - Steel Copper Plated
Supplied with M5 Screws (2 off)
Removable Pin for Detachable
Doors
Concealed Hinge for surface
mounted doors
Opening Angle - 110°
A
B
C
C1
D
H
L
L1
(g)
WDS No.
19
16.5
20
6.8
M5
10
40
57
50
8641-201
/
/
'
+
$
%
) *
&
&
