Note: When using stainless balls, reduce load capacity by 33%
Ball Dia
mm
Body Dia
D
mm
Fitted Height
Y
mm
Ref
B
mm
Flange Dia
F
mm
lbs
kg
T
mm
(g)
WDS No.
Steel Balls
WDS No.
Stainless Steel
Balls
15
24
9.5
11.5
31
88
50
2
55 570-801 570-801A
22
36
9.8
20.7
45
264 180
3
195 570-802 570-802A
30
45
13.8
23.0
55
550 350
4
360 570-803 570-803A
45
62
19.0
34.5
75
1100 600
5
1040 570-804 570-804A
Load Capacity

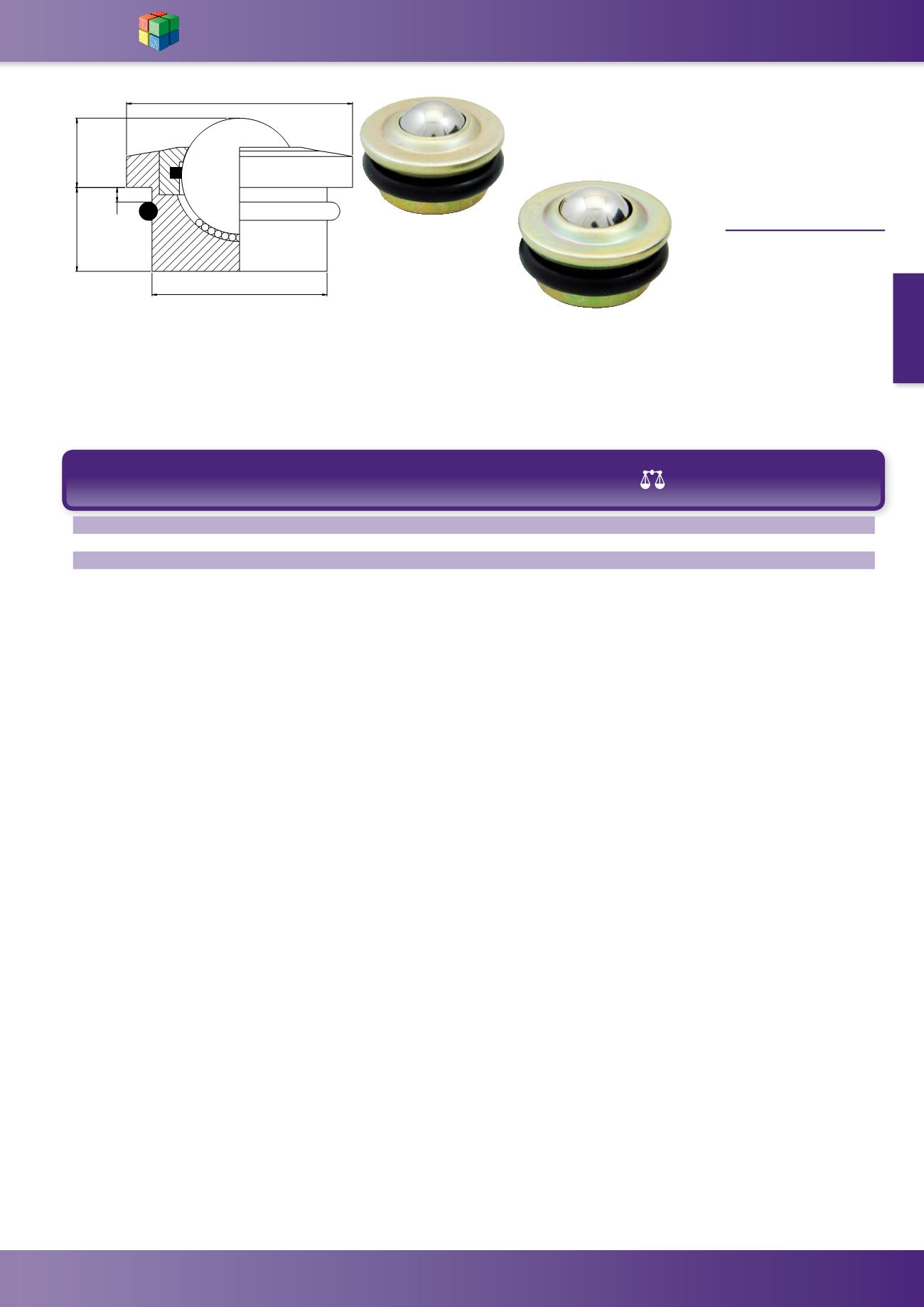

Ball Transfer
Unit - Medium
Duty with Rubber
O-Ring
WDS 570
MATERIAL
-
Body - Mild Steel
Electrophorectic Finish
Ball - Steel 9Cr18M0 or 420
Stainless Steel
Note: No seal fitted to 570-801 or
570-801A
