SECTION 17 - TUBE INSERTS WDS
WDS
17-1 & 0845 606 66 77 • : • *

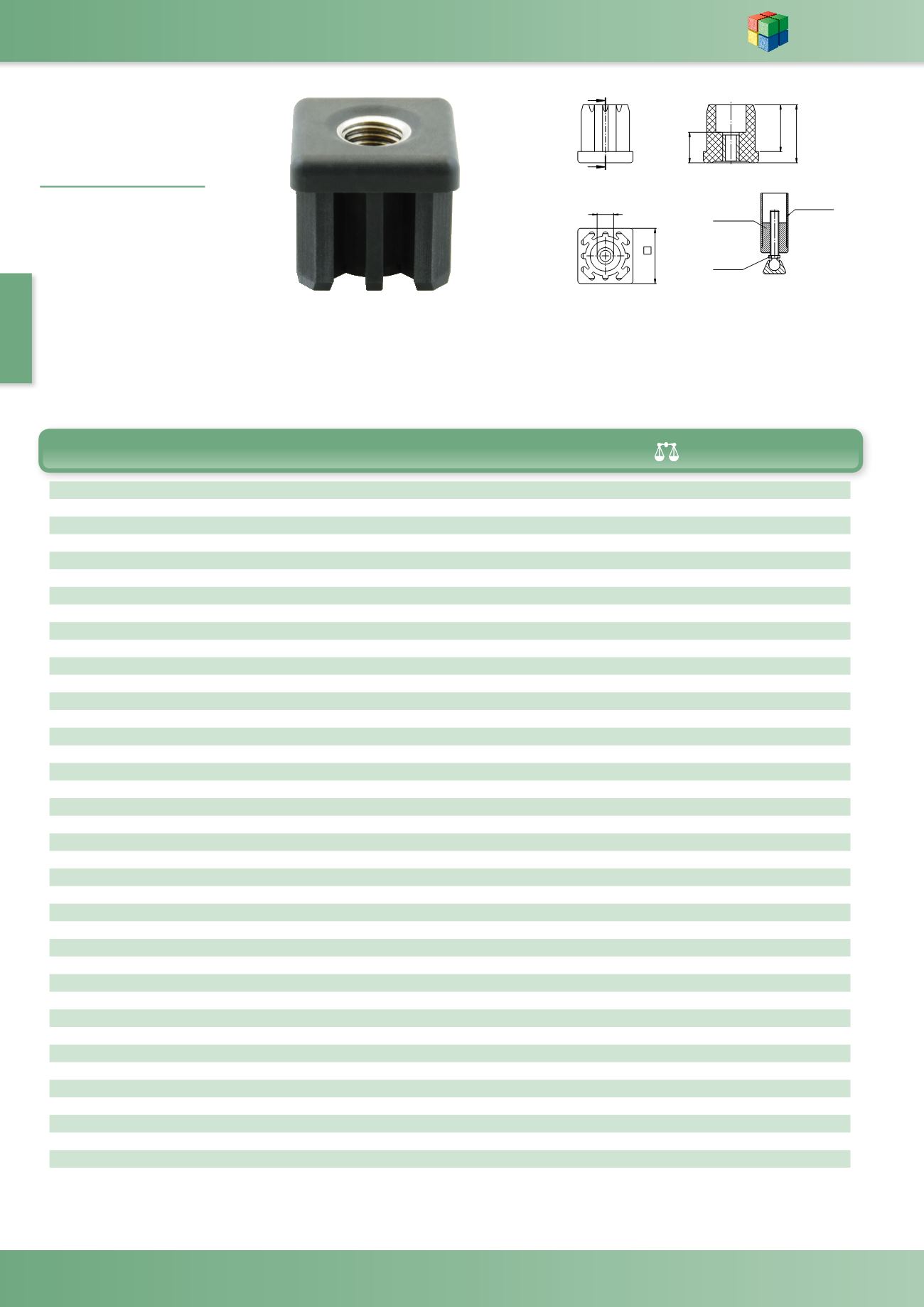

Plastic Insert for
Square Tube
WDS 689
MATERIAL -
Body - Glass reinforced plastic
Insert - Brass nickel plated
P = Maximum load in kN
(1 kN = 102 kg Approx)
T = Tube size x wall thickness
S S1 D L L1 L2 T (g) WDS No.
30 27 M8 34 28 20 30 x 1.5 30 689-301508
30 27 M10 34 28 20 30 x 1.5 30 689-301510
30 27 M12 34 28 20 30 x 1.5 30 689-301512
30 27 M16 34 28 20 30 x 1.5 30 689-301516
30 26 M8 34 28 20 30 x 2 30 689-302008
30 26 M10 34 28 20 30 x 2 30 689-302010
30 26 M12 34 28 20 30 x 2 30 689-302012
30 26 M16 34 28 20 30 x 2 30 689-302016
40 37 M8 42 34 22 40 x 1.5 55 689-401508
40 37 M10 42 34 22 40 x 1.5 55 689-401510
40 37 M12 42 34 22 40 x 1.5 55 689-401512
40 37 M16 42 34 22 40 x 1.5 55 689-401516
40 37 M20 42 34 22 40 x 1.5 55 689-401520
40 36 M8 42 34 22 40 x 2 55 689-402008
40 36 M10 42 34 22 40 x 2 55 689-402010
40 36 M12 42 34 22 40 x 2 55 689-402012
40 36 M16 42 34 22 40 x 2 55 689-402016
40 36 M20 42 34 22 40 x 2 55 689-402020
40 35 M8 42 34 22 40 x 2.5 55 689-402508
40 35 M10 42 34 22 40 x 2.5 55 689-402510
40 35 M12 42 34 22 40 x 2.5 55 689-402512
40 35 M16 42 34 22 40 x 2.5 55 689-402516
40 35 M20 42 34 22 40 x 2.5 55 689-402520
50 47 M10 44 34 22 50 x 1.5 85 689-501510
50 47 M12 44 34 22 50 x 1.5 85 689-501512
50 47 M16 44 34 22 50 x 1.5 85 689-501516
50 47 M20 44 34 22 50 x 1.5 85 689-501520
50 46 M10 44 34 22 50 x 2 85 689-502010
50 46 M12 44 34 22 50 x 2 85 689-502012
50 46 M16 44 34 22 50 x 2 85 689-502016
50 46 M20 44 34 22 50 x 2 85 689-502020
50 45 M10 44 34 22 50 x 2.5 85 689-502510
50 45 M12 44 34 22 50 x 2.5 85 689-502512
50 45 M16 44 34 22 50 x 2.5 85 689-502516
50 45 M20 44 34 22 50 x 2.5 85 689-502520
50 44 M10 44 34 22 50 x 3 85 689-503010
50 44 M12 44 34 22 50 x 3 85 689-503012
50 44 M16 44 34 22 50 x 3 85 689-503016
50 44 M20 44 34 22 50 x 3 85 689-503020
