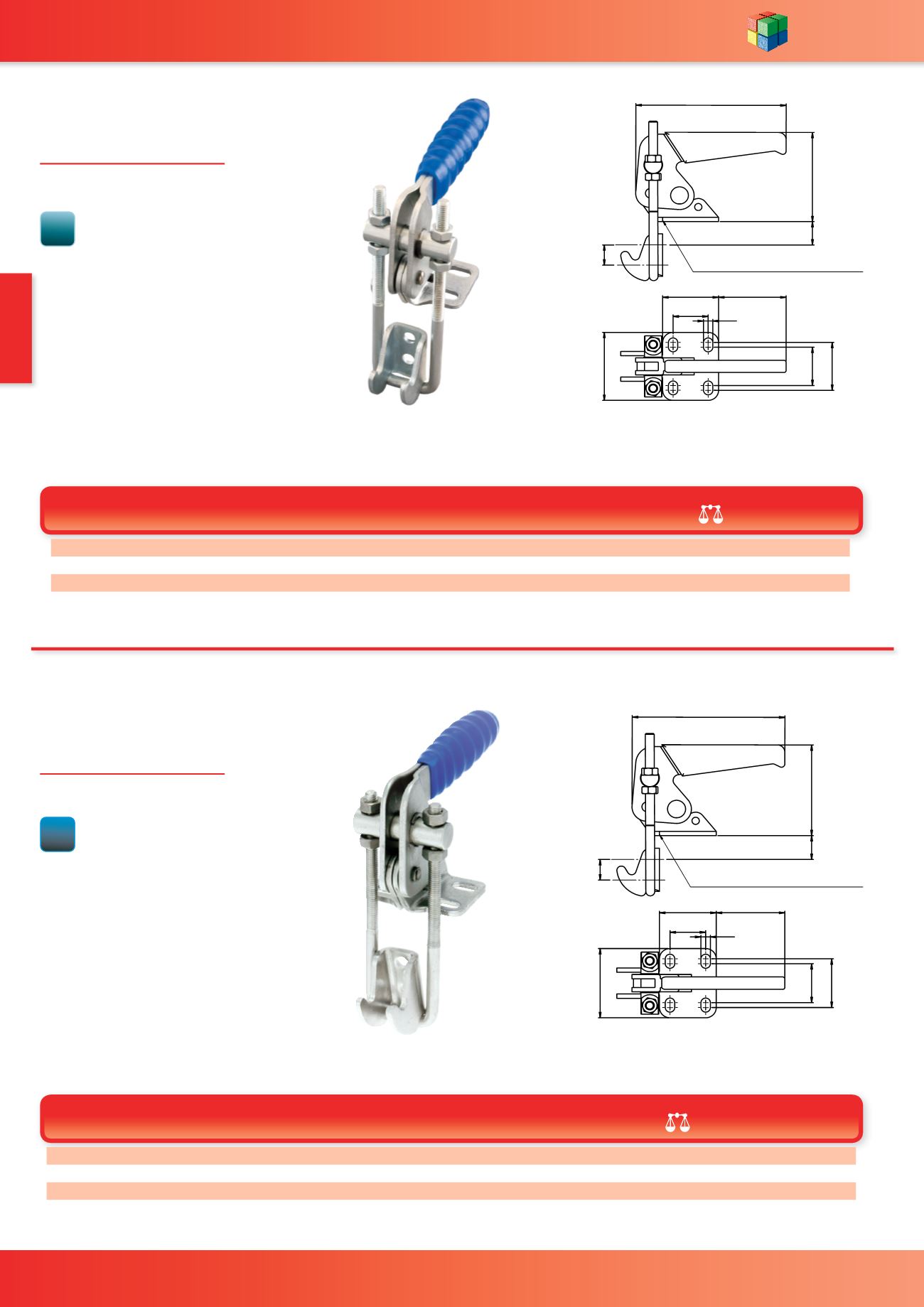

sales@wdsltd.co.ukVertical Latch Clamp
WDS 4045
MATERIAL
-
Steel, zinc plated and passivated
For latch bracket dimensions refer
to 4047
See 4093 Series for this part in
Stainless Steel
B
B1
B2
F
F1
H
H1
L
L2
L3
L4
L5
(kg)
WDS No.
Min Max
36 24 19 180 10 5 28 42 69 26 13 30 5.2 0.10 4045-201
47 32 25 270 15 7 35 63 103 35 19 50 6.5 0.28 4045-202
64 45 36 450 20 9 45 84 137 51 32 62 8.5 0.68 4045-203
F = Pulling force kg
F1 = Handle force kg
Vertical Latch Clamp
WDS 4093
MATERIAL
-
Stainless Steel BS 304 S15
For latch bracket dimensions refer
to 4095
See 4045 Series for this part in steel
F = Pulling force kg
F1 = Handle force kg
/
+ +
+
$OLJQ WKH IURQW HGJH RI WKH EDVH ZLWK
WKH PRXQWLQJ IDFH RI WKH ODWFK EUDFNHW
/
/
/
%
%
%
/
/
+ +
+
$OLJQ WKH IURQW HGJH RI WKH EDVH ZLWK
WKH PRXQWLQJ IDFH RI WKH ODWFK EUDFNHW
/
/
/
%
%
%
/
B
B1
B2
F
F1
H
H1 H2
L
L2
L3
L4
L5
(kg)
Size
WDS No.
Min Max
36 24 19 180 10 5 28 42 11 69 26 13 30 5.2 0.10 1 4093-201
47 32 25 270 15 7 35 63 14 103 35 19 50 6.5 0.28 2 4093-202
64 45 36 450 20 9 45 84 19 137 51 32 62 8.5 0.68 3 4093-203
ZP
304
