SECTION 19 - TOGGLE CLAMPS & ACCESSORIES
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk19-32
WDS

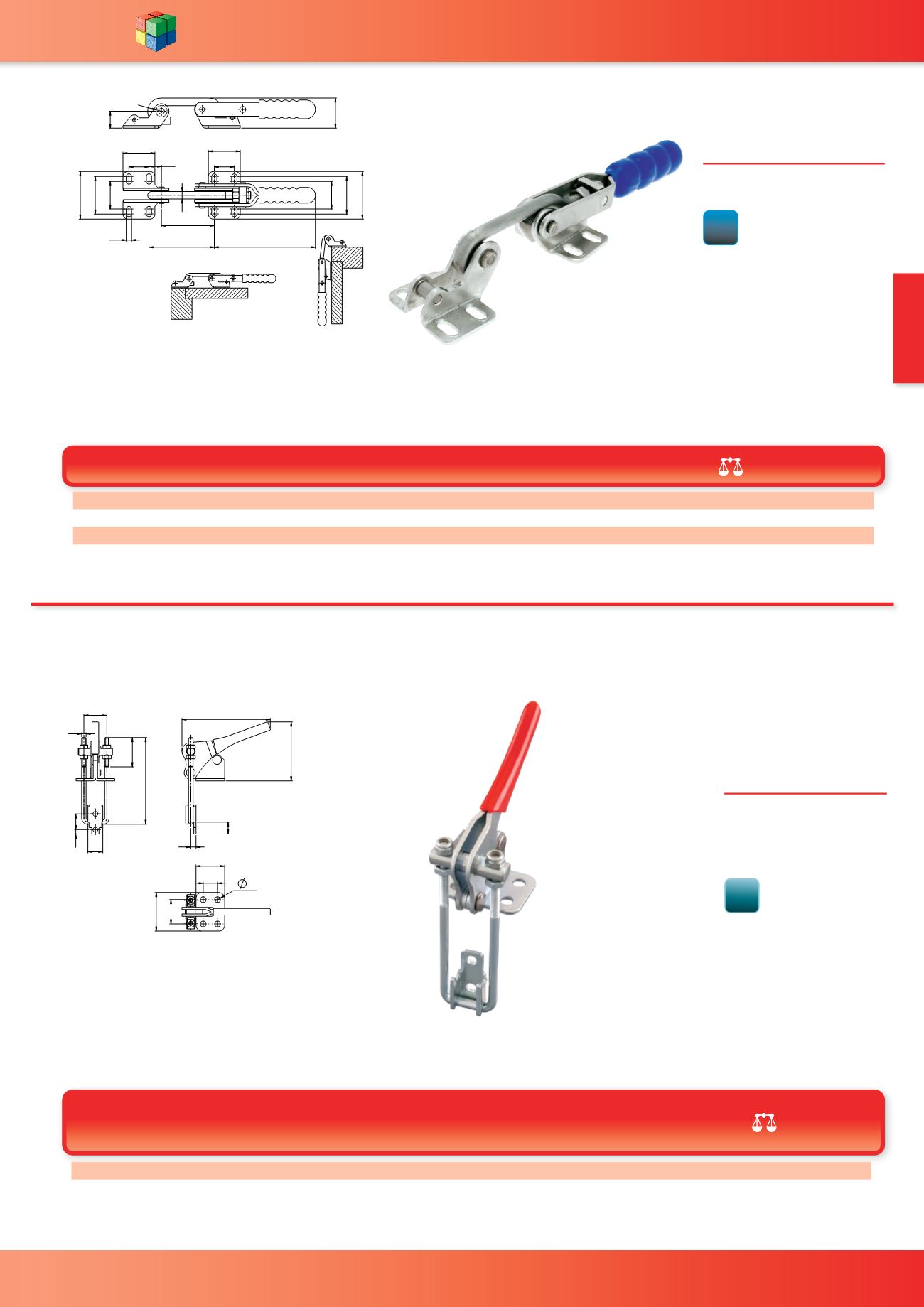

www.wdsltd.co.ukHook Clamp
WDS 4097
MATERIAL
-
Stainless Steel BS 304 S15
See 4049 Series for this part in
steel
B B1 B2 D D1 H H1 L L1 L2 L3 L4 L6 R F F1
(kg)
WDS No.
41 30 21 6 5.2 32 16 97 45 26 13 13 58 6 150 10 0.14 4097-201
51 37 26 8 6.3 37 23 135 68 35 19 16 75 6.5 300 15 0.33 4097-202
76 60 44 12 8.5 48 29 170 88 51 32 20 109 9 400 20 0.93 4097-203
F = Pulling force kg
F1 = Handle force kg
+RUL]RQWDO
$SSOLFDWLRQ
9HUWLFDO
$SSOLFDWLRQ
+
+
5
%
%
%
/
/
/
'
/
/
/
%
%
%
/
/
'
1RPLQDO
1RPLQDO
) 3XOOLQJ IRUFH NJ
) +DQGOH IRUFH NJ
Vertical Hook
Toggle Clamp
WDS 868
MATERIAL
-
Body - Die-stamped steel,
zinc plated to resist corrosion.
Hand Grip - Oil resistant red
vinyl
A B B1 C C1 D E F G G1 H J L L1 L2 T
Holding
Capacity
(kg)
(kg) WDS No.
4.7 35 22 26 13 5.3 20.8 10.5 4 14.3 53.3 10.9 79 78.5 26.5 M4 225
100 868-201
+
-
$
/
&
&
%
%
'
(
7
/
)
* *
/
304
ZP
