SECTION 19 - TOGGLE CLAMPS & ACCESSORIES
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk19-30
WDS

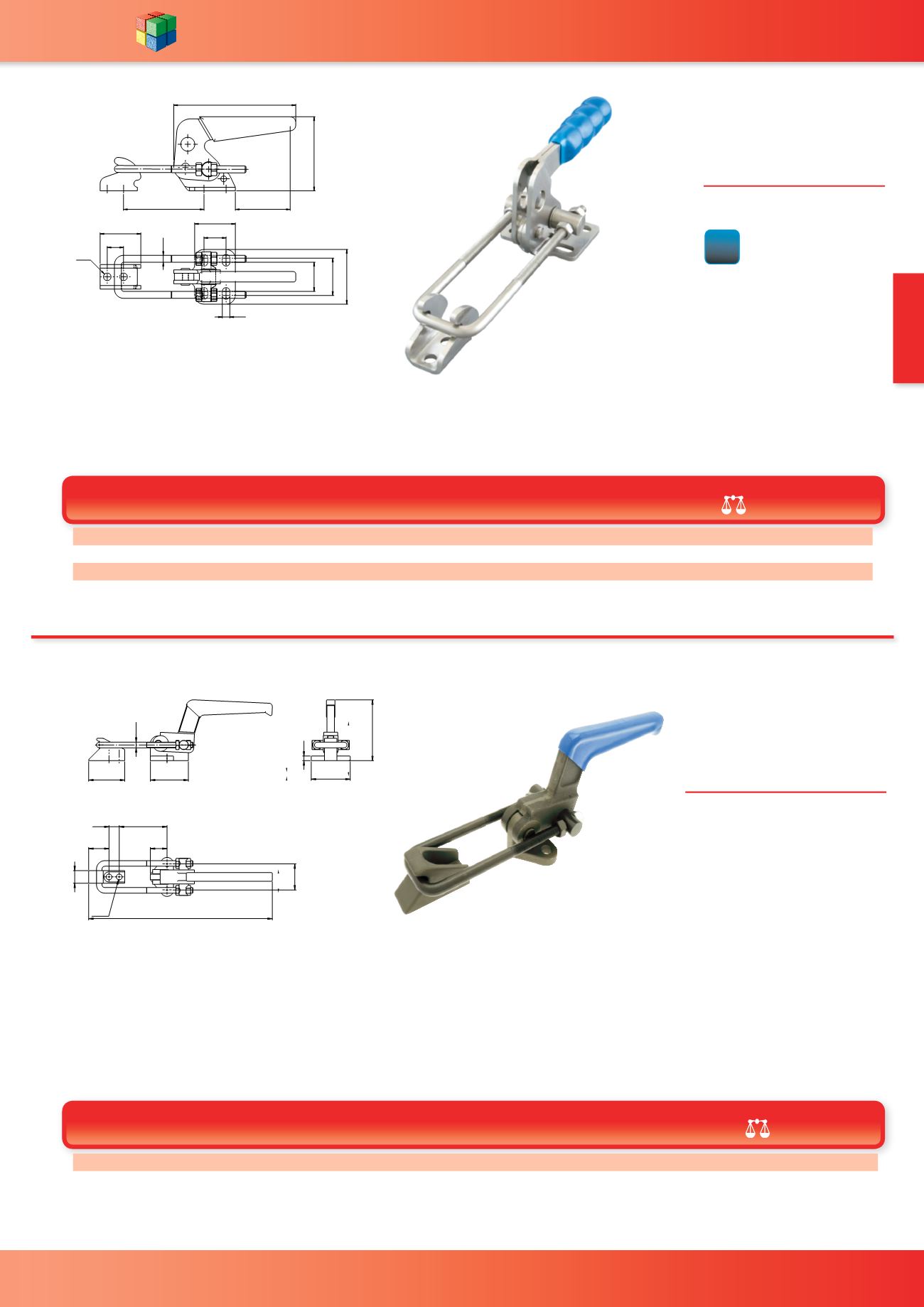

www.wdsltd.co.ukHorizontal Latch
Clamp
WDS 4095
MATERIAL
-
Stainless Steel BS 304 S15
See 4047 Series for this part in
steel
F = Pulling force kg
F1 = Handle force kg
B B1 B2 D D1 H1 L
L1
L2 L3 L4 L5 L6 L7 F F1
(kg)
WDS No.
Min Max
36 24 19 4 5.2 42 69 38 70 26 13 30 5.2 24 11 180 10 0.10 4095-201
47 32 25 6 6.5 63 103 48 90 35 19 50 6.5 32 14 270 15 0.28 4095-202
64 45 36 8 8.5 84 137 65 120 51 32 62 8.5 40 19 450 20 0.68 4095-203
L1
H1
L4
L
L6
L7
D1
D
B1
B2
B
L3
L2
L5
Horizontal Latch
Clamp
WDS 4048
MATERIAL
-
Steel, Chemical black finish
Supplied complete with latch bracket
D
D1
L
L1
L2
L3
L4
L5
L6
L7
B
B1
H
H1
F
F1
(kg)
WDS No.
Min Max Min Max
10 10.3 270 320 38 88 18 37 24 65 60 74 50 28 115 10 1650 60 1.40 4048-201
12 12.4 335 395 52 112 22 44 36 78 82 84 56 34 132 12 1900 60 2.60 4048-202
F = Pulling force kg
F1 = Handle force kg
Handle opens through 120°
/
/
'
/
/
/
/
/
'
%
%
/
+
+
304
