SECTION 21 -
SPENCER FRANKLIN HYDRACLAMP, HYDRAULICS
AND PNEUMATICS
WDS
&
0845 606 66 77
•
:
www.wdsltd.co.uk•
*
sales@wdsltd.co.uk21-44
WDS

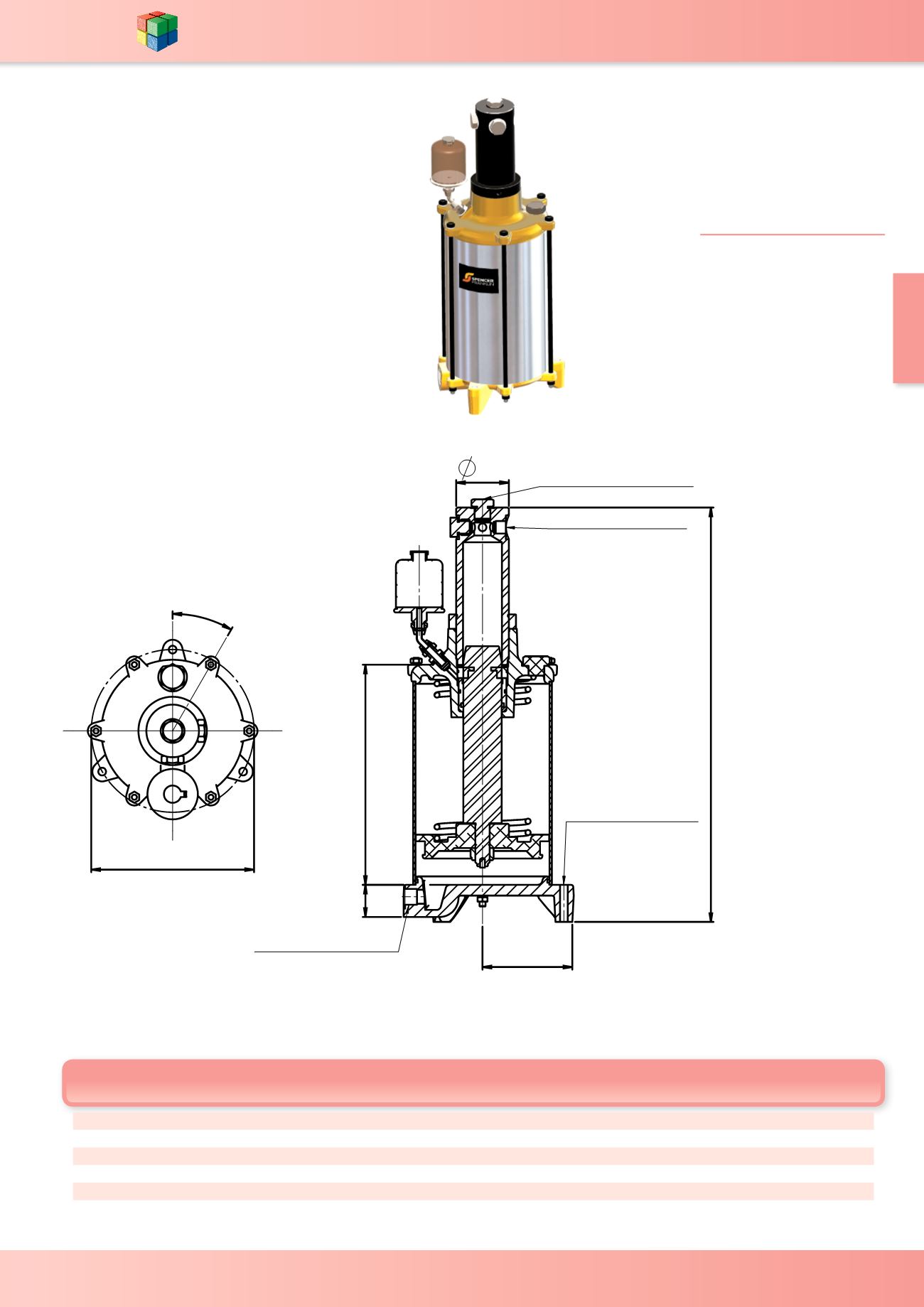

www.wdsltd.co.ukPowRlock Zoom-ATC
Booster
SF-7600A
Series
30°
216 P.C.D.
F
70
550
43
292
119
3 HOLES EQUALLY
SPACED
1/2" B.S.P. AIR INLET
1 PORT 1/2" B.S.P. OIL
OUTLET PORTS
4 PORTS 3/8" B.S.P.
7600
Intensification
Ratio
Maximum Oil cm³
Max Air Input bar
Weight kg
WDS No.
Seal Kit No.
12.2:1
308
7
19.5
SF-7680A
SF-76809
21.8:1
174
7
19.5
SF-7660A
SF-76609
31.4:1
120
7
19.5
SF-7650A
SF-76509
49.0:1
77
7
19.5
SF-7640A
SF-76409
64.0:1
59
5.5
19.5
SF-7635A
SF-76359
TECHNICAL INFORMATION
-
Maximum Air Pressure 7 bar except
for 7635 which must not exceed 5.5
bar
Air Consumption at 5.6 bar per
25.4mm stroke = 0.004m³
Maximum Stroke: 152.4mm
Mounting: Novel arrangement of the Autofeed device allows Booster to be mounted horizontally or vertically with the outlet ports uppermost, simply
by rotating the Autofeed assembly through 90°.
Re
fer to page 21-46 & 21-47 for
more technical information
